Jeep Wrangler JL & JT Gladiator Model/Trim Guide

Jeep JL/JT Compatibility

Shared Fitment Status:

Front & Rear Bumper

Fronts are compatible, Rear are NOT

Grille

Compatible, however, 2023 & prior JL/JT feature different grille mesh sizes

Fender Flares

Front Fenders are compatible, Rears are NOT

Hood

Hood & Hood latches are compatible (Mojave & 392 Hoods feature different cowl mounted acessory fitment, unless specifically noted)

Doors

Front & Rear doors & Hinges are compatible

Rock Sliders

NOT compatible

Taillights

NOT compatible

Headlights

Headlights are compatible

Front Track Bar

Front Track bars are compatible

Rear Track Bar

NOT compatible

Rear Control Arms

NOT compatible

Steering Knuckles

Compatible

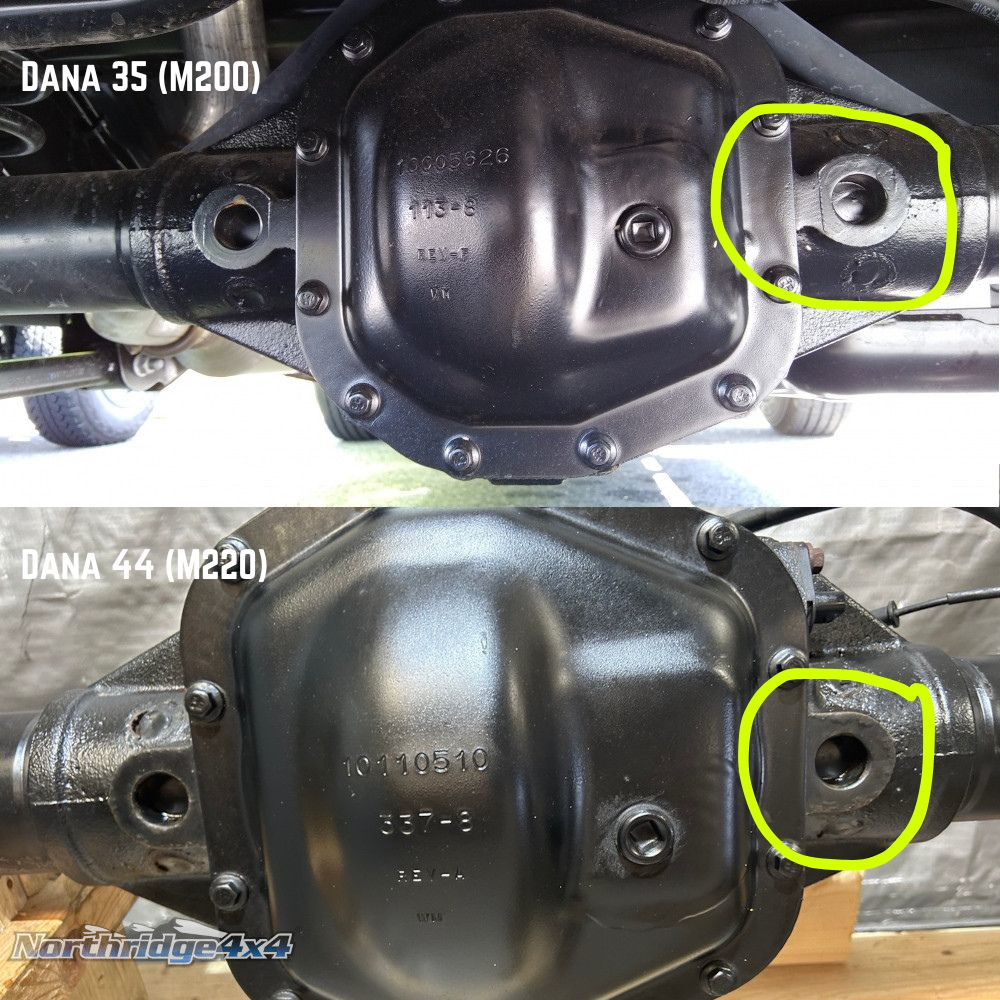

Dana 44 Diff Covers are Compatible, Dana 30, 35 are NOT

Ring & Pinion

Dana 44 R&P are interchangable, Dana 30, 35 are NOT

Driveshafts

Front are compatible, Rears are NOT

Hardtop

Front Passenger & Driver Freedom Panels are compatible

Wheels

Lug Nuts (Size: M14 x 1.50")

• Dana 30/35 = 24 Spline Ring & Pinion for yoke fitment
• Dana 44 = 28 Spline Ring & Pinion for yoke fitment

• Rubicon/Wide Track axles require longer Tie Rod

• Specific Lift Kits for 4xe(To accomodate extra weight)
• Specific Lift Kits for Diesel(To accomodate extra weight)
• Specific Lift Kits for 392(To accomodate extra weight)

• Halogen vs LED fender lights use different assembly/bulbs
• OEM LED headlights can be plug-and-play swapped to a non-led +2021 JL (Programmer is required to activate them)

• Bumpers, rock sliders, side steps, doors all compatible across models/trims
• Aftermarket skid plates feature different fitment across engine options - When choosing a skid plate system be sure to specify engine model

• Hardtop/Soft Top compatible across all models/trims
• Fender flares cross compatible across all models and trims
• Front Grilles cross compatible across all models and trims (including 2024 redesign grille)

• 4xe, 392 & Xtreme Recon feature larger, HD Brakes(Steel)
• Sahara, Rubicon, Willys have standard brakes(Steel) unless equipped with XR package
• Select Sport models have smaller brake setup (Indentified by the aluminum calipers)
• Brake Codes: BRY - Base Sport and Sport S. BR3 - 4xe Models. BR4 - XR Package, 392. BR5 - Sahara High Altitude. BR6 - Willys, Sahara, Rubicon, Ecodiesel.

• All Wheels & tires cross compatible with all JT models (all use 5x5 bolt pattern)

• Mojave Hood features different fitment for cowl mounted accessories

• Diesel models feature specific air intake and exhaust fitment

• All gladiators have the same ring & pinion size
• All Gladiators feature 32 spline axle shafts. Rubicon/Wide Track require longer axle shafts

• Rubicon/Wide Track Axles require longer Tie Rod

• 3.6L vs Diesel feature different lift kits due to weight differences

• Halogen vs LED fender lights use different assembly/bulbs

• Bumpers, rock sliders, side steps, doors all compatible across models/trims
• 3.6L vs Diesel feature different aftermarket skid plate fitments

• Hardtop/SoftTops compatible across all models/trims
• Fender flares cross compatible across all models/trims
• Front Grilles cross compatible across all models/trims (Including 2024 redesign grille)
• Maximum underbed spare tire size: 37" (High clearance track bars provide additional spare tire clearance if needed)

• All Gladiators feature the same brakes

• All Wheels & tires cross compatible with all models/trims (all use 5x5 wheel bolt pattern)

• Mojave Hood features different fitment for cowl mounted accessories(unless specified)

• Diesel models feature different air intake & exhaust fitment (included aftermarket upgrades)
