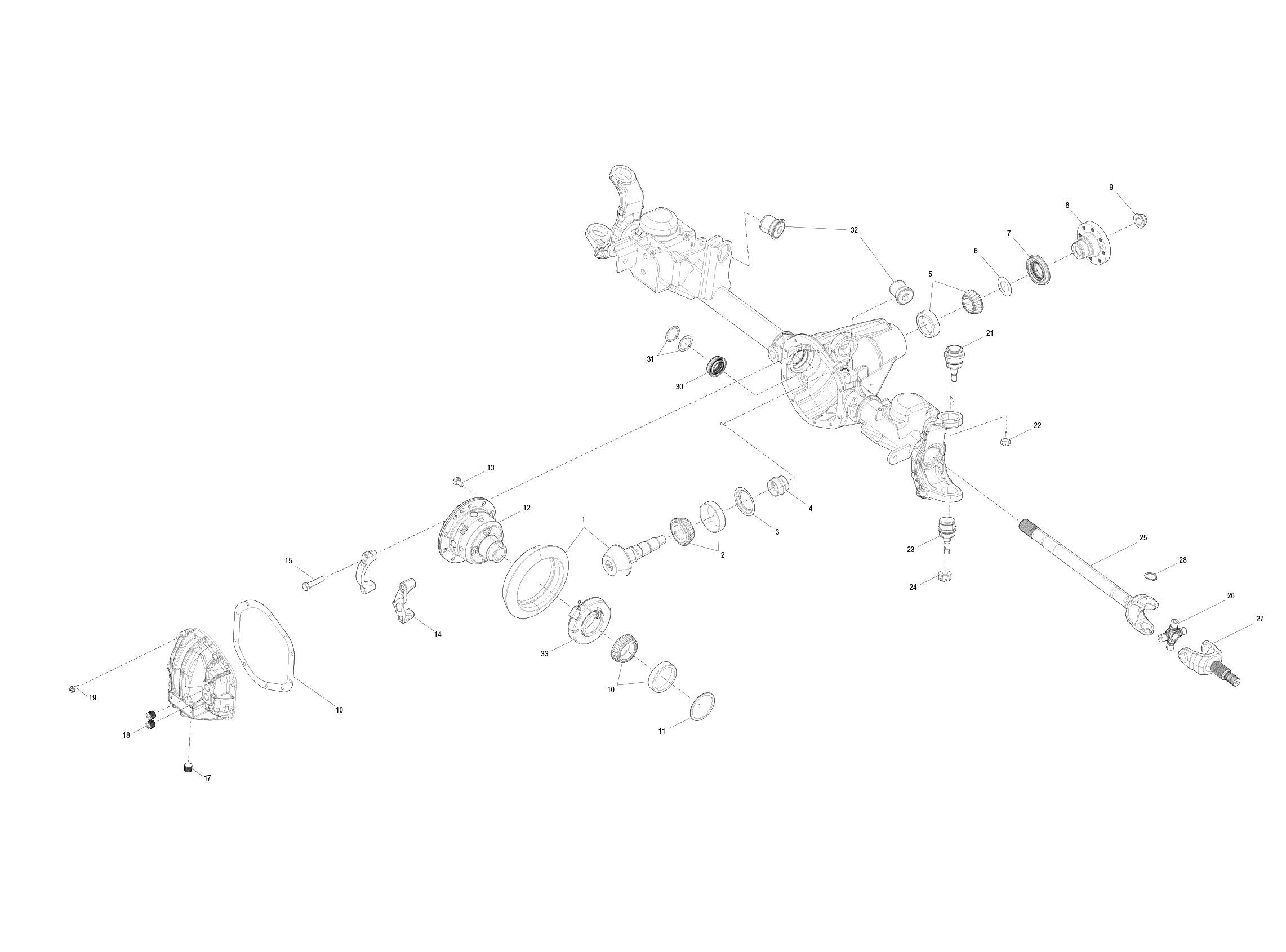

| Item | Part # | Description | Item | Part # | Description | |
|---|---|---|---|---|---|---|
| 1 | Ring & Pinion Options | 17 | 2001762 | Differential Cover Drain Plug | ||
| 2013742-5 | 3.73 | 18 | 43180 | Differential Cover Fill Plug (Qty 2) | ||
| 2005024-5 | 4.10 | 19 | 34279 | Differential Cover Bolt (Qty 10) | ||
| 2019746 | 4.56 | 20 | 10023536 | Differential Cover Assembly | ||
| 2019749 | 4.88 | 21 | 2005838 | Upper Socket Assembly | ||
| 2019752 | 5.13 | 22 | 40584 | Upper Ball Joint Nut | ||
| 10010738 | 5.38 | 50024-6 | Cotter Pin (Not Shown) | |||
| 2 | 706046x | Inner Pinion Bearing Kit | 23 | 2011892 | Lower Socket Assembly | |
| 3 | 48741-3 | Pinion Oil Baffle | 24 | 43682 | Lower Ball Joint Nut | |
| 4 | 50614 | Collapsible spacer | 25 | Inner Axle Shaft Options | ||
| 5 | 706015X | Outer Pinion Bearing Kit | 10033855 | 1350 Series w/ARB Air Locker Inner RH | ||
| 6 | 2005565 | Pinion Bearing Slinger - Outer | 10033856 | 1350 Series w/ARB Air Locker Inner LH | ||
| 7 | 2004670 | Pinion Oil Seal | 10015186 | 1350 Series w/Electronic Locking Diff Inner RH | ||
| 8 | 2005008 | Companion Flange Assembly | 10015185 | 1350 Series w/Electronic Locking Diff Inner LH | ||
| 9 | 44189 | Pinion Nut | 26 | 5-7166X | Universal Joint | |
| 10 | 2007293 | Differential Side Bearing Kit | 27 | 10015183 | Outer Axle Shaft | |
| 11 | 2007294 | Differential Bearing Shim Kit | 28 | 3-7-99 | Snap Ring | |
| 12 | Differential Case Assembly Options | 29 | Shaft and Joint Assembly Options | |||
| 2007503 | JK Rubicon E-Locker | 5-7166X | Life Series (1350 Non-Greasable) | |||
| 2005193 | JK Rubicon E-Locker Solenoid Assy. | 5-1350-1X | Life Series (1350 Greasable) | |||
| 10048896 | ARB Air Locker | 5-760XC | Life Series - Blue (1310 Non-Greasable) | |||
| 10029609 | Std./Open Differential | SPL30-7166XC | Life Series - Blue | |||
| 13 | 49242-2 | Ring Gear Bolt (Qty 10) | 30 | 2013455 | Seal | |
| 14 | 2004548 | Bearing Cap | 31 | 2010374 | Axle Shaft Guide | |
| 15 | 48632-1 | Bearing Cap Bolt | 32 | 52060138AA | Bushing | |
| 16 | RD52000 | Differential Cover Gasket |
Keep your Jeep performing at its best with high-quality Dana 44 front axle rebuild and service parts. Whether you're replacing worn components, upgrading gearing, or refreshing your differential after years of trail use, this page includes the essential parts needed to maintain strength, reliability, and off-road capability.
