Dana 44 Rear ELD Axle Parts — Jeep Wrangler JK

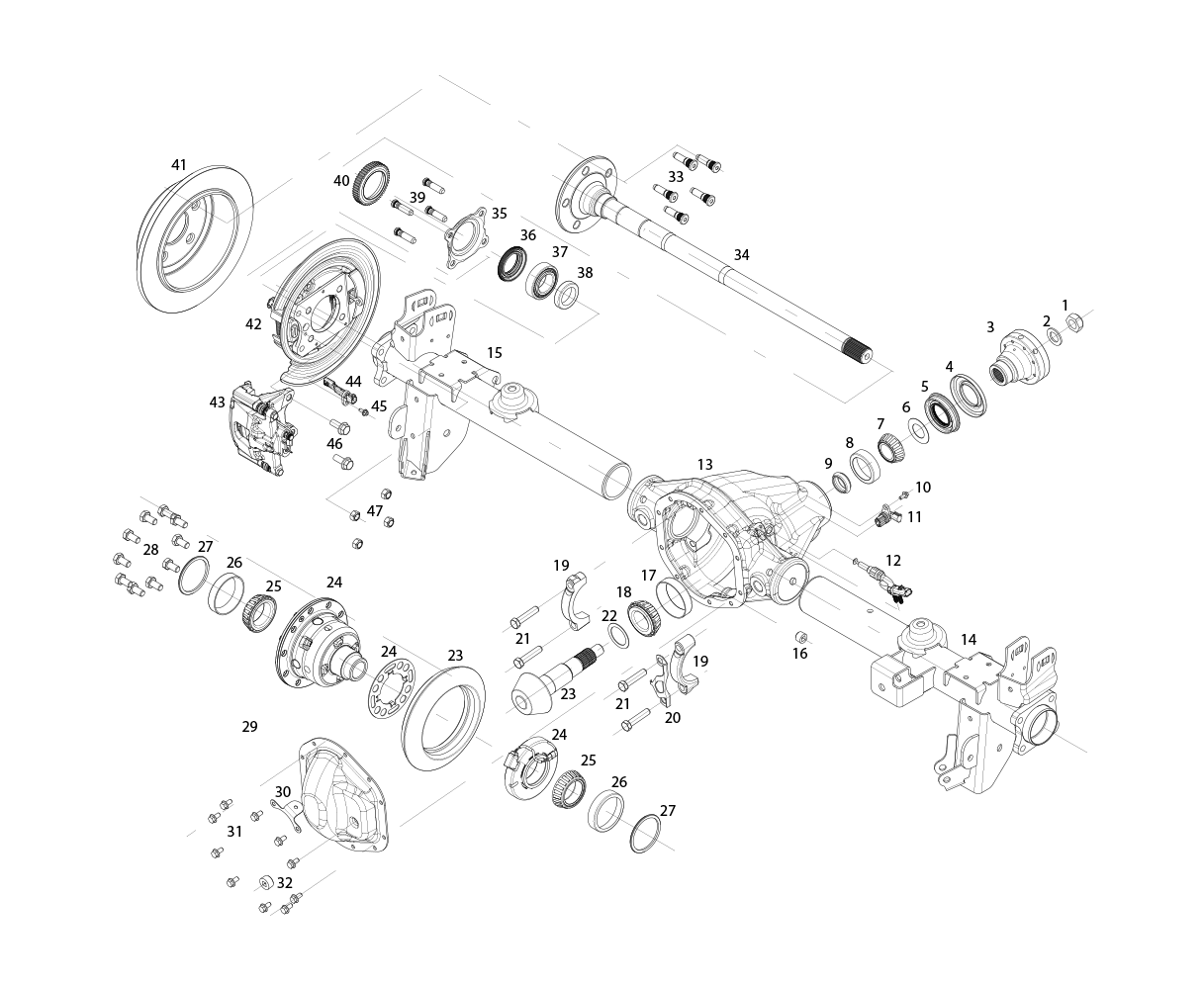

Exploded-view parts diagram for the JK Rubicon Dana 44 rear axle with Electronic Locking Differential (ELD) and 226mm ring gear (M226) — ring & pinion gear sets, E-locker components, bearings, seals, axle shafts, and complete rebuild parts.

Dana 44
Item Part # Description   Item Part # Description
1 2001153 Pinion Nut   24 2008439 Diff Case Assy
2 30275 Washer   25 566202 Tapered Roller Cone (Qty 2)
3 2004431 Companion flange   26 566201 Tapered Roller Cup (Qty 2)
4 54459 Deflector   27 2003782 Bearing Preload
5 2004101 Pinion Seal   28 2001443 Ring Gear Bolts (Qty 10)
6 42737 Thrust Washer   29 42960 Carrier Cover
7 565923 Tapered Roller Cone   30 2006312 Support Bracket
8 565922 Tapered Roller Cup   31 34279 Flange Head Screw
9 46925 Collapsible Spacer   32 43180 Pipe Plug
10 52784-2 Flange Head Screw   33 2004789 Wheel Bolt (Qty 5)
11 54636 Solenoid   34 2004787 Axle Shaft
12 2004882 Switch Assembly   35 2004703 Oil Seal Retainer
13 2004504 Carrier   36 52765 Oil Seal
14 2006611 Right Arm   37 565903 Roller Bearing
15 2006612 Left Arm   38 36797 Bearing Ring Retainer
16 2001762 Drain Plug   39 52734-1 Button Head Bolt (Qty 4)
17 565999 Tapered Roller Cup   40 2004403 Tone Wheel
18 566000 Tapered Roller Cone   41 2004750 Brake Rotor (Qty 2)
19 2004548 Cap (Qty 2)   42 2005166 Brake Assy Disc (Qty 2)
20 2004505 Bracket   43 2007028 Caliper Assy
21 48632-1 Bolt (Qty 4)   44 2007030 ABS Sensor
22 41214 Shim   45 52784-2 ABS Sensor Bolt (Qty 2)
23 Ring & Pinion Options     46 2003861 Flange Head Screw (Qty 4)
  2008688 3.73 Rear   47 2004922 Lock Nut (Qty 8)
  2007772  4.10 Rear
  2018737 4.56 Rear
  2018747

2018756

10027182		 4.88 Rear

5.13 Rear

5.38 Rear

Jeep Wrangler JK Torque Specifications


Model

Pinion Bearing Preload

(Inch/Lbs)

 Backlash (.001 inch)

Ring Gear Bolt Torque

(Foot/Lbs)

Bearing Cap Torque

(Foot/Lbs)
Dana 30 JK 12-15 6-10 80 60
Dana 44 JK Front 20-30 6-10 135 80
Dana 44 JK Rear 22-35 6-10 135 80
