Dana UD60 BannerWhether you're performing a full rebuild or replacing key components, choosing the right parts ensures long-term durability and performance.

Browse our selection of Dana UD60 rear axle rebuild and service parts to keep your Jeep ready for any terrain.Dana UD60 Rear

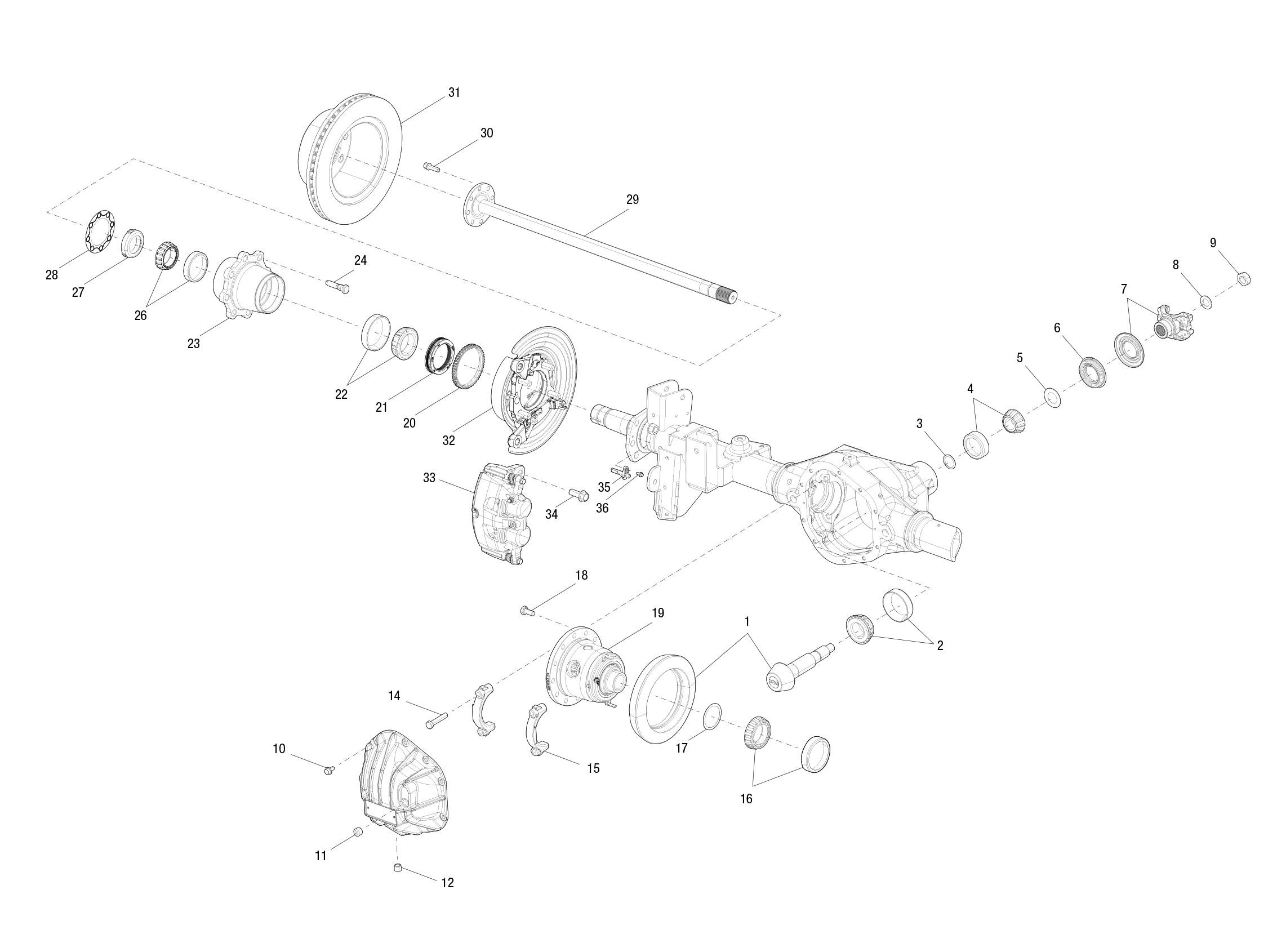

Item Part # Description   Item Part # Description
1 Ring & Pinion Options     19 Differential Case Assembly Options
  76089X 3.73 Rear     10024012 4.56 and Up
  76047X 4.10 Rear     14022-010 4.10 and Down
  25334X 4.88 Rear   20 2023673 Tone Ring
  27518X 5.38 Rear   21 10006508 Hub Seal
2 706046x Inner Pinion Bearing Kit   22 10024092 Inner Wheel Bearing Kit
3 10024089 Shim Kit   23   Wheel Hub - Not Sold Separately
4 706045x Outer Pinion Bearing Kit   24 10020918 Wheel Stud
5 42737 Pinion Thrust Washer   25 10021148 Wheel Hub Assembly
6 50637 Pinion Oil Seal   26 706074X Outer Wheel Bearing Kit
7 10014642 End Yoke Assembly   27 43075 Retainer
8 30275 Pinion Nut Washer   28 39697 Gasket
9 30271 Pinion Nut   29 10004851 - Right Axle Shafts
10 47508-2 Differential Cover Bolt (Qty 14)     10003519 - Left
11 43180 Differential Cover Fill Plug   30 45720 Hub Bolt
12 2001762 Differential Cover Drain Plug   31 10020919 Brake Rotor
13 10024090 Differential Cover Assembly   32 10020922 Parking Brake Assembly
14   Bearing Cap Bolt   33 10020921 - Right Caliper Assembly
15 53152 Bearing Cap     10020920 - Left
16 706047X Differential Side Bearing Kit   34 10020924 Caliper Bolt
17 701144X Differential Bearing Shim Kit   35 10020923 ABS Sensor
18 40638 Ring Gear Bolt (Qty 12)   36 52784-2 ABS Sensor bolt



Rebuild Specification for UD60® Rear Axles

Diff Specifications USA Metric Dana Part #
Ring Gear Bolt 148-170 ft-lbs 200-230 Nm 40638
Bearing Cap Bolt 70-90 ft-lbs 95-122 Nm 48632-2
Pinion Nut 220-500 ft-lbs 298-678 Nm 30271
Ring Gear Backlash 0.005"-0.008" .13-.20Nm
Diff Cover Bolt 40-50 ft-lbs 54-68 Nm
Lubricant Type SAE 75W-140 Gear Lubricant
Lubricant Capacity 2.75 qts 2.6L

Drive Pinion and Total Torque to Rotate
Pinion Torque to Rotate (PTR): 20 – 45 in-lbs        2.25 – 5.08 Nm
Total Torque to Rotate (by ratio):

Gear Ratio USA (in-lbs) Metric (Nm) Part Number
3.73 PTR + 4.1 / 8.5 PTR + 0.46 / 0.96 76089X
4.10 PTR + 3.7 / 8.2 PTR + 0.42 / 0.92 76047X
4.56 PTR + 3.3 / 7.7 PTR + 0.37 / 0.87 N/A
4.88 PTR + 3.1 / 7.5 PTR + 0.35 / 0.85 25334X
5.13 PTR + 2.9 / 7.3 PTR + 0.33 / 0.83 N/A
5.38 PTR + 2.8 / 7.2 PTR + 0.32 / 0.82 27518X
ARB 4.88 PTR + 7.6 / 13 PTR + 0.86 / 1.47 25334X
ARB 5.38 PTR + 7.3 / 12.7 PTR + 0.83 / 1.44 27518X
Axle Shaft Bolts 90 - 120 122 - 163
