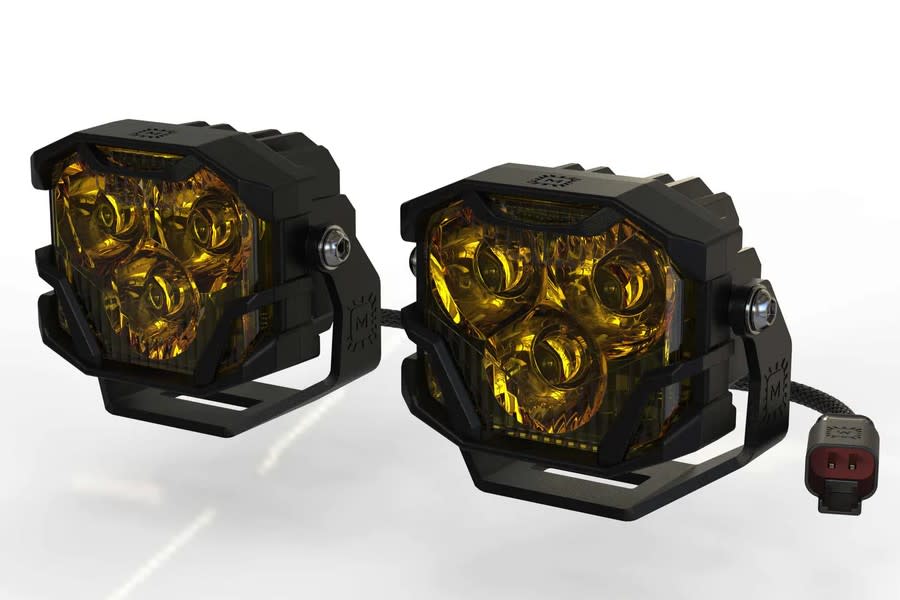

Morimoto 4Banger Surface-Mount Kit NCS, Yellow Spot Beam
Morimoto 4Banger Surface-Mount Kit NCS, Yellow Spot Beam
Morimoto 4Banger Surface-Mount Kit NCS, Yellow Spot Beam
Morimoto 4Banger Surface-Mount Kit NCS, Yellow Spot Beam
Morimoto 4Banger Surface-Mount Kit NCS, Yellow Spot Beam

Morimoto 4Banger Surface-Mount Kit NCS, Yellow Spot Beam

This item is no longer available.
Universal part

Product Resources

Features & Product Details

The brand new, patent-pending line of 4Banger Off-Road LED lights was completely designed, engineered, and tested in the USA, and everything about them is truly next level.

NCS Spot Beam: Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long-range visibility. While not quite as powerful as the 4Banger HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance. Form Meets

Function: The overall footprint of the 4Banger is approximately 30% smaller than alternatives that offer comparable performance. This allows for an unbeatable OEM+-like fitment when paired with Morimoto's fog light or

Performance: There are no "off the shelf" guts inside fancy housing here. Every element of the 4Banger is proprietary. LucidShape optimized performance around the most modern, lumen-dense LEDs from Nichia. Thermal dynamics have been optimized using SolidWorks. The 4Banger is available with three industry-leading beam patterns to suit every need. Wide/Fog, Spot, and Combo. Patent Pending Design.

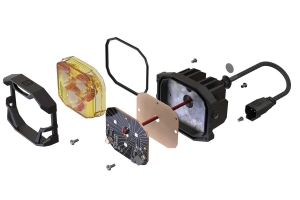

All Weather: The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will slay in shady weather. Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output (Filtering white light through a yellow lens achieves the look, but no actual performance benefit in poor weather). Reliability With power comes great responsibility. The extensive effort went into ensuring the reliability of the product. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat transfer to the radiator, optimized through numerous rounds of thermal analysis. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance.

Street Legality: When aimed properly, the Spot and Combo beams comply with SAE J581 standards for an auxiliary high beam. The Wide beam model is compliant with SAE J583 for fog lamps. Some localities require auxiliary lights to be covered for everyday driving. To comply, the optional Blackout Covers are designed to fit all Morimoto 4Banger LED Pods and are a friction + clip fit that installs easily and can be removed in seconds.

Bolt-On: Each set of Morimoto 4Banger LED pods includes a set of pedestal mounts for universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for fog lights and A-Pillars that make them bolt-on for many of today's most popular trucks. Check out the full lineup for details on what's available for your application.

Power Up: The Morimoto 4Banger LED Pods have been developed from the ground up to set a new standard in their segment, and the same goes for the optional wire harness. Suppose you want the best, bingo. Not one component of the harness was overlooked for cost or simplicity. Triple-sealed proprietary 4-pin relay with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with amber-LED backlight.

Tech Specs:

  • Intensity: 73,500 Cd (Post Warm-Up) (735lux @ 10m)
  • Input: Proprietary Overmolded Deutsch DT 2-Pin w/ Pigtail
  • Input Voltage: 9-18V DC
  • Power: 20w
  • Current: 1.5A @ 13. V DC
  • Dimensions: 82mm W, 67mm H, 60mm D
  • Light Source: 3x Nichia NCSW131F (3000K)
  • Material: Makrolon LED2245 PC (Lens), Powder coated Die Cast Aluminum (Housing)
  • What's Included:

  • LED Pods: 2x (One Pair) Morimoto 4Banger (NCS Yellow Spot Beam - BAF002)
  • Brackets: 2x (One Pair) Universal U-Shape Mounts
  • Hardware: Complete pack (stainless steel)

    Product Video


    Brand: Morimoto
    Bulb Type: LED
    Light Color: Yellow
    Qty: 2
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
