Baja Designs S8 Straight LED Light Bar 40in, Driving/Combo - Clear

Baja Designs S8 Straight LED Light Bar 40in, Driving/Combo - Clear

Baja Designs S8 Straight LED Light Bar 40in, Driving/Combo - Clear
Write a Review | Q&A
Part # 704003We price match! Call 866-601-5340!
We Price Match
$1,112.95
3336 entries2224 entries - 2025 Northridge4x4 Jeep Giveaway

In stock!
Qualifies for
free shipping!
Universal part
2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!!
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
Baja DesignsAuthorized
Dealer

Product Resources

Features & Product Details

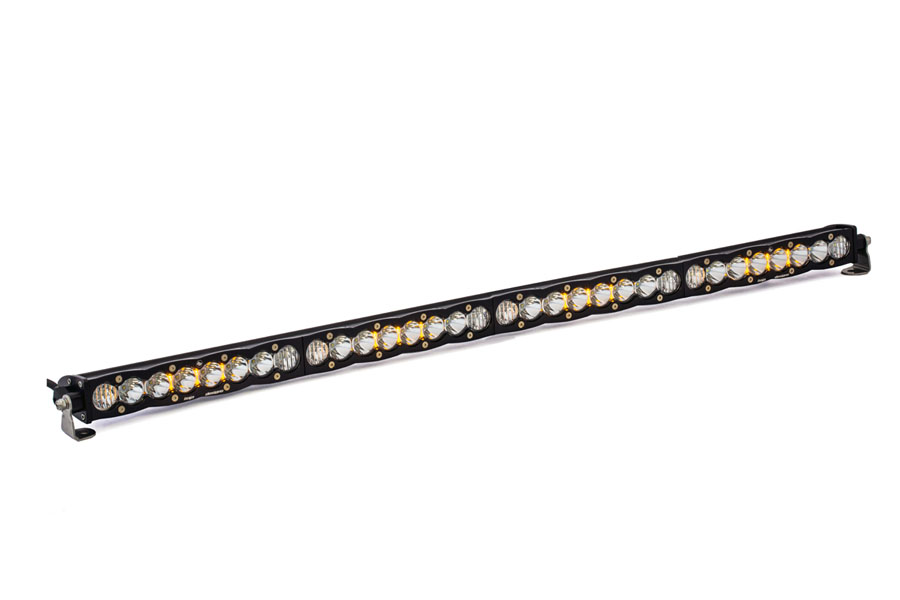

The S8 LED light bar from Baja Designs offers a slim and sleek design utilizing eight LEDs per 10-inch section. Lumens start at 6,324 for 10" section, the S8 is available from 10" to 50", features high-performance reflectors and the additional feature of an amber backlight makes the S8 a light bar that shines with your vehicle.



NOTE: This light does NOT include a harness. The applicable harnesses are 640122 (On/Off with mode switch for backlight) or 640115 (On/Off 3-pin for one light 10"-30").



ELS™ Scores:

  • S8 10" Driving Combo (Clear): ELS 116°/ 7.1/ 323'/ 4910

    •

    Features:

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100 Percent
  • 5000K Daylight – Less Driver Fatigue, Natural Color

    •

    Dimensions

  • Depth (in.): 3
  • Height (in.): 1.6
  • Length (in.): 40
  • Weight (lbs.): 8.65

    •

    Specifications

  • Amperage Rating (A): 16.0
  • Average Rated Life (hr.): 49,930
  • Beam Pattern: Driving/Combo
  • Bezel Material: Billet Machined Aluminum
  • Brightness (Lumens): 25,400
  • Description: Driving/Combo; Clear
  • Housing Color: Black
  • Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
  • Lens Color: Clear
  • Lighting Modes: Hardcoated Polycarbonate
  • Light Quantity: 1
  • Lens Material: Beam/Amber Backlit Feature
  • Lighting Quantity: 32
  • Lighting Type: Cree LED
  • Lighting Technology: Forward Projecting
  • Mounting Hardware Description: Mounting Brackets
  • Mounting Hardware Included: Yes
  • Mounting Hardware Material: Stainless Steel
  • Overvoltage Protection: Built-In
  • Product Type: S8 40 Inch LED Light Bar
  • Universal or Specific: Universal
  • Wattage (W): 240
  • Wiring Harness Included: No
  • Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
  • Lens Color: Clear
  • Lens Material: Hardcoated Polycarbonate
  • Light Quantity: 1
  • Lighting Modes: Beam/Amber Backlit Feature
  • Lighting Quantity: 32
  • Lighting Technology: Cree LED
  • Lighting Type: Forward Projecting
  • Mounting Hardware Description: Mounting Brackets
  • Mounting Hardware Included: Yes
  • Mounting Hardware Material: Stainless Steel
  • Overvoltage Protection: Built-In
  • Product Type: S8 40 Inch LED Light Bar
  • Universal or Specific: Universal
  • Wattage (W): 240
  • Wiring Harness Included: No

    •

    Standards & Compliance

  • Patent No.       D780,964
  • Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
  • Standards/Compliance (Water Resistance): IK10 Compliant (Mechanical Impact Testing)
  • Standards/Compliance (Impact Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
  • Patent No.: D780,964
  • Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
  • Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
  • Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)

    • Specifications

    Brand: Baja Designs
    Beam: Driving
    Body Color: Black
    Bulb Type: LED
    Length: 40.00in
    Light Color: White
    Mounting Bracket Included: Yes
    Qty: 1
    Wiring Included: No
    Lens: Polycarbonate
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
