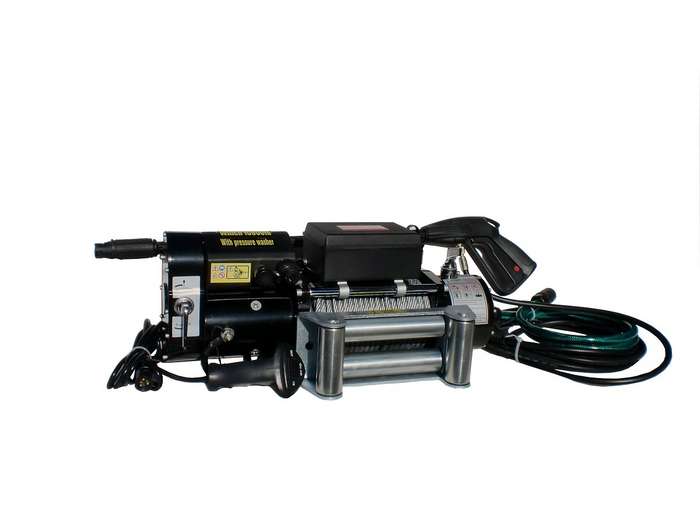

ENGO PW10000 Winch w/Pressure Washer

ENGO PW10000 Winch w/Pressure Washer

ENGO PW10000 Winch w/Pressure Washer
This item is no longer available.
Universal part
ANY QUESTIONS?

Product Resources

Features & Product Details

The new ENGO PW Series winch provides all the best features you
would want in a winch. Using state of the art Series Wound Motors,
efficient 3-Stage planetary gear train, automatic load-holding brake,
rugged hand remote, freespooling, power In and Out, stainless steel
fasteners and a standard 4 Way Galvanized Roller Fairlead. The new
PW Series offers the perfect balance of speed and power giving you
the performance you need for your recovery applications and the
additional use of a pressure washer for when your vehicle needs it.


Rated Line Pull 10,000 lb. (4545kg) Motor 5.6 HP, Series Wound Gearing 3-Stage Planetary Gear Ratio 265.2:1 Brake Automatic Load Holding Clutch Free Spooling Fairlead Heavy Duty 4-Way Roller Cable 26m of 9.2mm Net Weight 95 lb.(43kg) Dimensions (LxWxH) 22.7"x7.32"x9.21"(577x186x234mm) Drum Dimensions Diameter 2.5"(63mm) x Length 8.8"(224mm) Mounting Bolt Pattern 10" x 4.5" (254mm x 114.3mm) Water Inlet Pressure 0.2-0.4Mpa (water self-priming function) Max Pressure 1650 Psi Min Pressure 1000 Psi Water Flow 300-320 L/H Motor <120 Amps w/pressure Water Outlet Tube Length 8m

Specifications

Brand: ENGO USA
Clutch Type: Free Spooling
Gear Ratio: 265.2.1
Line Material: Wire Rope
Motor HP: 5.6
Rated Capacity: 10,000lbs
Remote Control: Yes
Mfgr. Warranty: Limited Lifetime
Condition: New Product
Return Policy:
Standard

REVIEWS & CUSTOMER MEDIA

Be the first to write a review

QUESTIONS & ANSWERS

No questions have been asked about this product.

This Part Fits

Universal Product
This item is non application specific.
Please verify compatibility before purchase. May require some modification for proper installation.
