Artec Industries Adjustable Inner Frame Bracket 10 Degrees, Front Passenger/Rear Driver

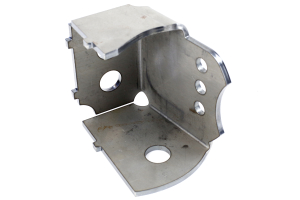

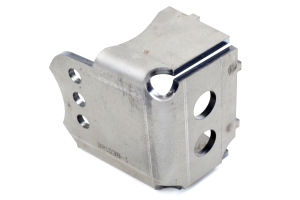

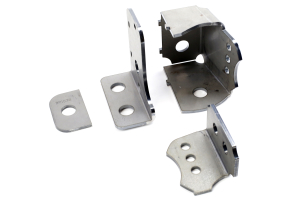

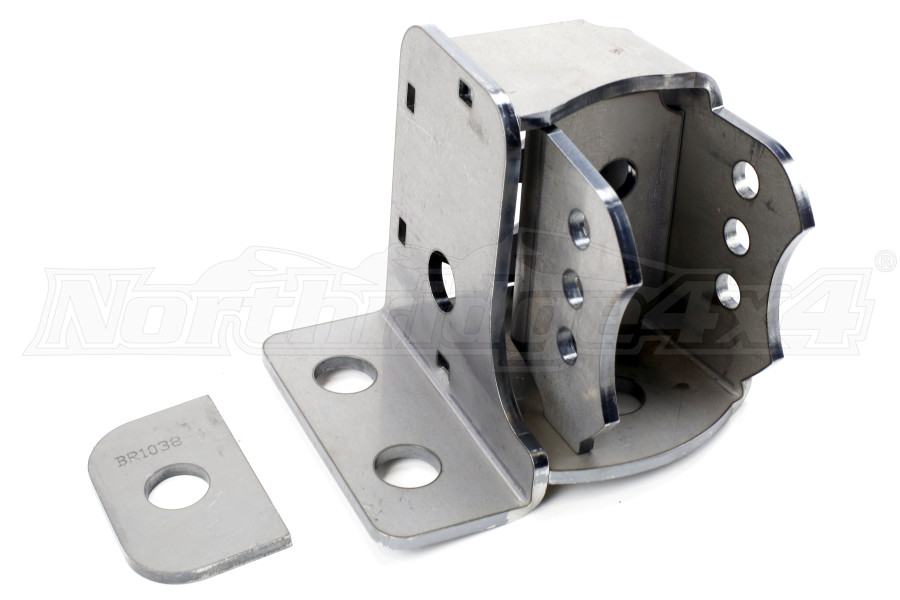

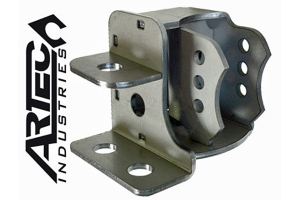

The Artec Industries Adjustable Inner Frame Bracket is a machined work of art, allowing the user to have several options and variations to achieve. Artec Industries has designed this bracket with both form and function in mind, and this particular bracket shown is the 10° front passenger bracket.

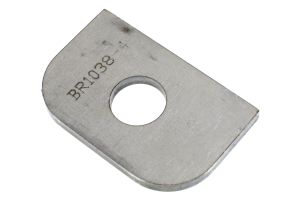

The Inner Frame Brackets have 1” of separation between each hole for adjustability, and have been designed with a floating top gusset which allows any height frame. A frame plate has been added to increase strength, but also promotes a surface to weld a bracket to with jigs, for an easy assembly. There is a 2.625” mounting width with a 9/16” bolt hole for common sized cartridge joints such as Johnny Joints, Flex, Ballistic, etc, and can be drilled out to a larger hole size for a 1.25” rod ends with spacers. And it could easily be modified for smaller joints.

This bracket has been crafted from ¼” thick boxed steel plate, to be strong enough to handle impacts. And the grease fittings are accessible at the top to allow maintenance to be performed on the most utilized joints. The skid plate at the bottom of the bracket wraps around the joint which offers protection from impacts, and also protects the joints from premature wear. This results in longer life, and less replacements. However the design of the skid plate won’t hinder the movement of the joint.
