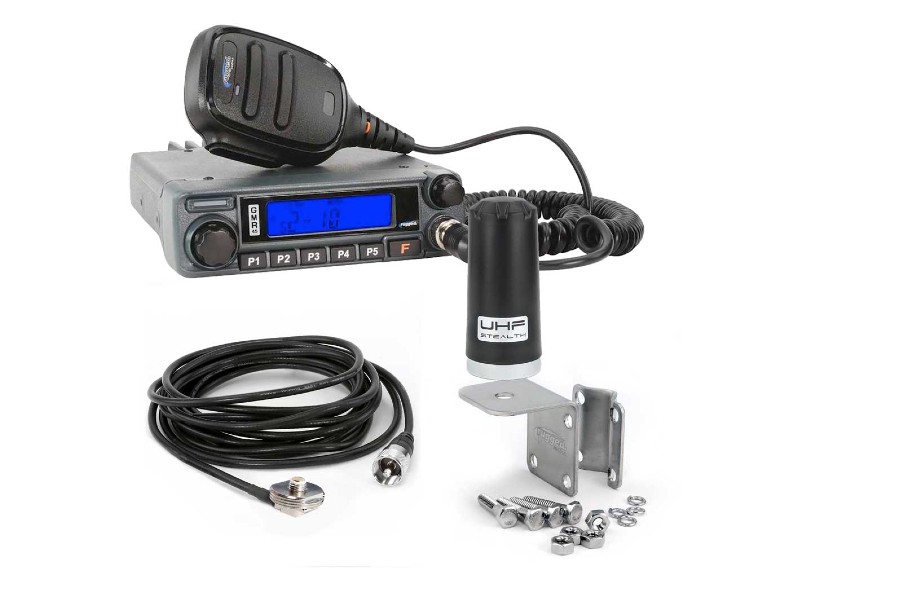

Rugged Radios GMRS Mobile Radio Kit Lite w/ Stealth Antenna - 45 Watt

Go Further with our powerful, industry leading 45-watt GMRS radio kit featuring a low profile Stealth Antenna. Superior wattage provides superior power and range, giving you the ability to transmit long-distances when it matters.

Kit Features:

Compatibility:

Included:

Note: This Non Ground Plane Stealth antenna was designed for applications where a metal ground plane (such as a steel or aluminum) is not available. This design makes it perfect for mounting on a roll bar, fabricated tab, and other similar mounts. It will also work well on non-metallic roofs such as plastic or fiberglass. NOT intended for ground plane applications such as a steel or aluminum roof.

Specifications:

Frequency Range: 462-467MHz

Channel Capacity: 23

Channel Spacing: 12.5KHz

Frequency Stability: 2.5ppm

Operating Temperature: -10ºC~ + 60ºC

Operating Voltage: 13.6V DC ±20%

Dimension (HxWxD): 142 x 180 x 42mm

TRANSMITTER

Radio Frequency (RF) Power: 45W/5W

Frequency Modulation: 1KφF3E

Antenna Impedance: 50Ω

Modulation Limiting: ±2.5KHz

Modulation Distortion: < 5%

Radiated Spurious Emission: ≥ 60dB

FM Hum & Noise: ≥ 35dB

Adjacent Channel Power: ≥ 60dB

RECEIVER

Reference Sensitivity: 0.35μV

Adjacent Channel Selectivity: ≥ 60dB

Intermodulation Rejection: ≥ 60dB

Spurious Response Rejection: ≥ 60dB

Rated Audio Power: ≥ 2W

Audio Response: +1` -3dB (0.3 - 2.55KHz)

Rated Audio Distortion: ≤ 5%

FM Hum & Noise: ≥ 35dB
