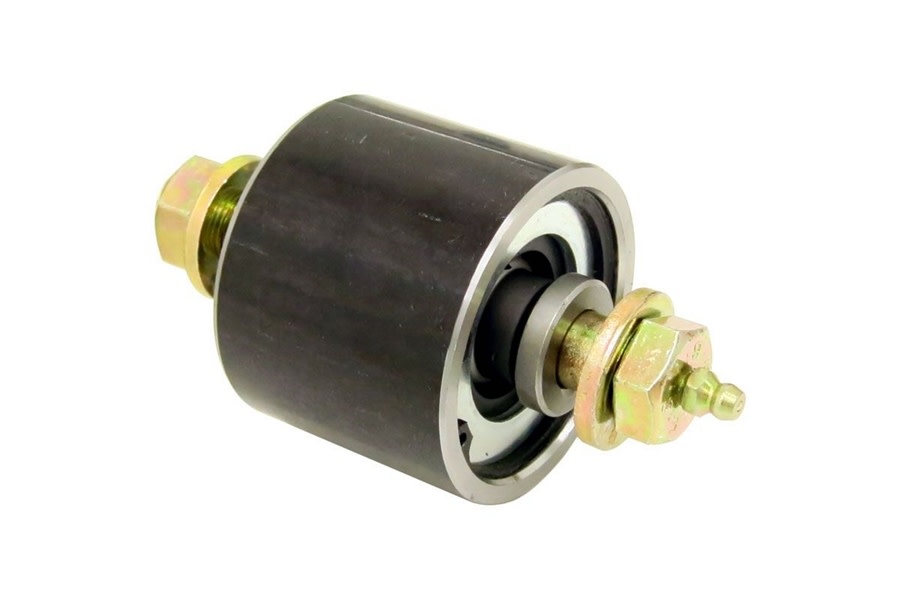

RockJock 2.5in Johnny Joint Rod End w/ Greaseable Bolt - 2.368in x 0.625in Ball

RockJock's weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat-treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180" wall machined DOM tubing. This specific joint is a 2 1/2" o.d. and features a 2.465" mounting width and a .625" thru bolt hole. This ball center does not have a flange on one side for use in front trac bar applications. Grade 8 greaseable bolt with nut and washers included.
