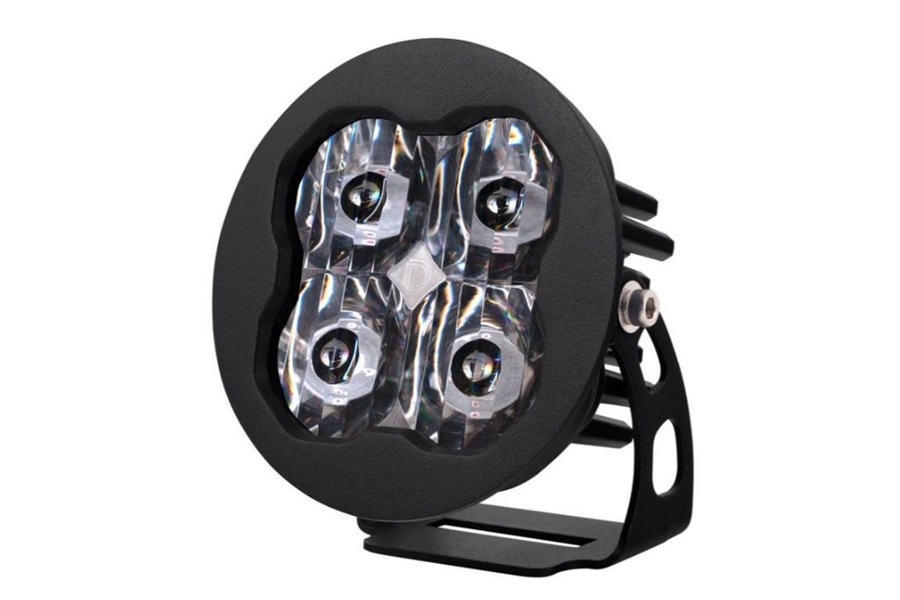

Diode Dynamics SS3 Max Round LED Pod - White Driving
Diode Dynamics SS3 Max Round LED Pod - White Driving
Diode Dynamics SS3 Max Round LED Pod - White Driving

Diode Dynamics SS3 Max Round LED Pod - White Driving

Write a Review | Q&A
Part # DD6493S
$249.95
msrp: $250.00

Out of Stock. Average time to ship: 30 days
Universal part
ANY QUESTIONS?

Features & Product Details

Introducing the SS3 3” Max LED Pod! The first of its kind, the SS3 Max utilizes the newest LED chip technology to deliver higher output intensity than any other 3” light on the market.

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with the brand new Osram HX Boost 20-watt LEDs, the total output intensity of the SS3 Max is greater than any other LED pod on the market today, with a maximum of 251,000 candela, shining light over a kilometer away!

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

  • Driving is great for general illumination. Rather than a traditional "spot" pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds. Normally, our Driving optic is available as a compliant SAE Driving pattern, but due to its extreme intensity, the SS3 Max exceeds the SAE output requirements. It’s still a great option for off-road use at high speed, such as stage rally racing.
  • White. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting.

    Max.  The Max option uses high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand-new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.

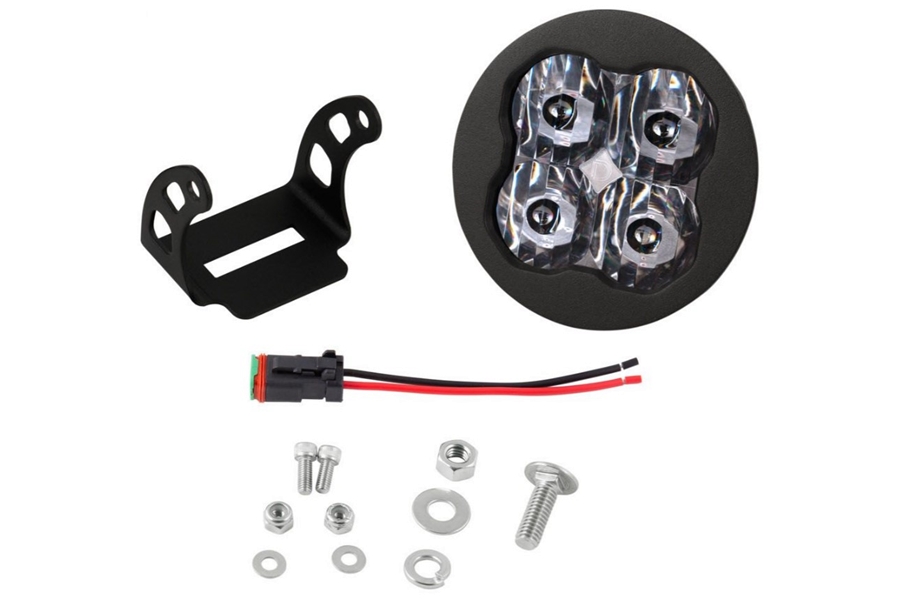

    In the Box:

  • One (1) SS3 3” LED Pod
  • One (1) Deutsch-style wire pigtail
  • One (1) Mounting bracket and hardware
  • Product Video

    Specifications

    Brand: Diode Dynamics
    Beam: Driving
    Bezel Color: Black
    Body Color: Black
    Bulb Type: LED
    Lens: Polycarbonate
    Light Color: White
    Mounting Bracket Included: Yes
    Qty: 1
    Size: 3.00in
    Wiring Included: No
    Mfgr. Warranty: 8 Year Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
