Derale Heat Sink Transmission Cooler Kit, 1/4 in. NPT, Inlet

The internal and external cooling fins in these new Derale heat sink transmission coolers provide maximum cooling efficiency without relying on direct airflow. Their compact diameter means that they can be mounted in a variety of locations, such as on the frame rail next to the transmission, directly under the radiator, under the floorboards, etc. The rugged aluminum extrusion features welded ends for long service life, in even the toughest environments. Derale Performance coolers are offered in several lengths with 3/8 in. inlets.

Overall Height (in):2.188 in.

Overall Width (in):14.250 in.

Overall Thickness (in):3.250 in.

Cooler Construction:Heat sink

Cooler Material:Aluminum

Inlet Size:1/4 in.

NPT Inlet Attachment:Female threads

Outlet Size:1/4 in. NPT

Outlet Attachment:Female threads

Fan Included:No

Number of Cooling Rows:2

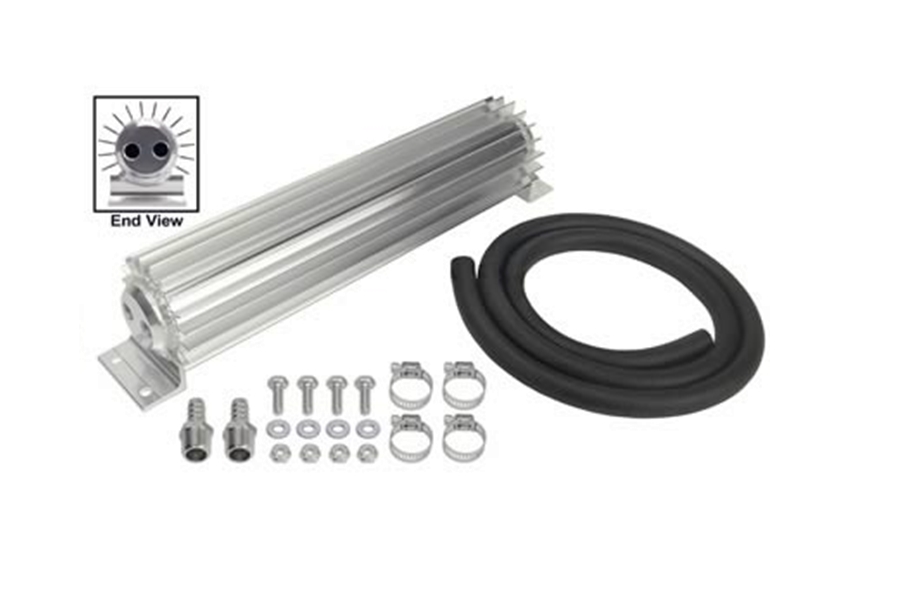

Notes:Dual pass cooler with rubber transmission line, clamps,3/8 in. hose barb adapters, and mounting hardware.
