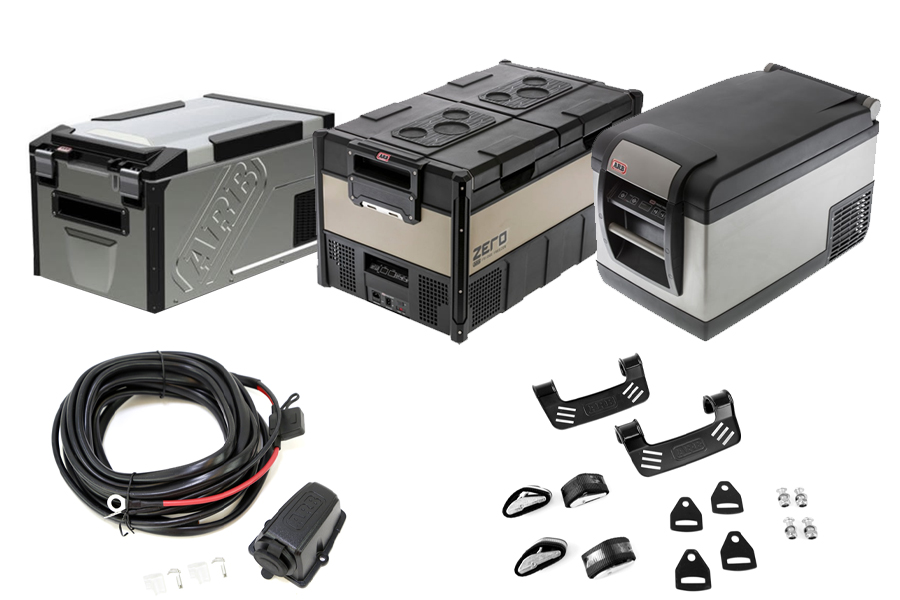

Trying to figure out which Fridge suits you. Here is what each one offers.
The Classic Fridge was introduced in 2009 and it became an instant hit. The Classic II features an updated color scheme and provides a Bluetooth operated monitor (FAR superior to the Wi-Fi system brand D uses) that can check OR change the temperature and functions of the fridge. This can be done on our Linx accessory interface system or your smart phone. The temperature range is from 0*- 50* and the fridge can maintain a temperature 90* below ambient (I.E.- at 100* ambient temperature the fridge can maintain 10*).
The chassis of the Classic II is unique to ARB and offers the strength needed for off road use. The fully removeable lid makes loading and unloading easy in tight confines and the positive, durable latch prevents the scattering of fridge contents when that big bump is hit. The variable speed motor provides just the amount of power needed and no more to allow it to be highly energy efficient. Max amp draw is just under 7 amps and it averages about an amp per hour of use.The Fridge also has a built-in battery monitoring system. This system will shut down the Fridge when a predetermined battery voltage has been reached. There are 3 settings: Low 10.1V, Medium 11.4 V and High 11.8V. These prevent running your battery down too low and possibly damaging it.
Like all of theFridge designs, the Classic II has a built-in LED cabinet light and a drain plug. All Fridges are also supplied with both a 12V and 110power cords. These can both be used at the same time which works very well in motorhome, trailer or boat applications. These sound like simple additions but they are not available in all brands.
The Elements Fridge has been a real game changer. It is a true outdoor Fridge and has proven adept and handling the environment. While it encompasses many of the features of the Classic II Fridge, it also features a fully weatherproof exterior that has a stainless steel case and tamperproof controls. The stainless case helps prevent solar heat gain and surrounds insulation more suited for external applications. The tamperproof controls have a touchpad panel that operates a unique magnetic lock. In the closed position only the keypad can be accessed. This prevents any adjustment of the temperature or battery control feature. A padlock recess is also provided for additional security. There are security screws at the bottom of the case that are designed to be used with the optional bed mount bracket. This bracket allows you to affix the Elements Fridge into the bed of a truck and lessen your chance of theft.
The Elements Fridge is provided with a gas strut on the lid to hold it open. There is an optional wireless monitor kit available that will allow the user to keep track of the battery voltage and temperature. The Elements Fridge is only available in a 63 quart unit.
While many of the features of the other Fridges are used on the ZERO Fridges, the most important addition to the line are 2 new dual zone models. These Fridges have separate zones for refrigeration and freezing. They have separate controls so you can adjust to suit your needs. While both of the dual zone fridges are side opening units, the 101 quart unit has 2 separate reversable lids. This really helps you orient the fridge where it works best for your application. The 73 quart unit also is a reversible side opener but it has a single lid. While it still has 2 separate compartments and dual controls, it has a removeable internal wall to allow use of the entire interior as a single compartment.
The new ZERO Fridge also has a new basket design that is a very flexible, adjustable storage design. It does a great job of separating the area and allowing storage of varying sizes of items. Another new feature ZERO brings to the line is dual 110V outlets- one at each end of the fridge. This allows far easier access to the 110 outlet when the Fridge is already installed in the vehicle. Frequently a customer will precool the fridge using 110V before leaving on a trip or just plug in the full Fridge if they plan on leaving the truck sit for an extended time with food in the fridge. It also has a USB port that is handy to charge your phone or tablet.
Tried and tested, the ARB Fridge Freezer has been a staple in the off-roading community for years thanks to its proven performance. ARB has given these reliable essentials a revamp in styling and characteristics–introducing the ARB Classic Fridge Freezer Series II. Featuring a new color scheme inspired by the recently released-ARB Jack, the gunmetal grey fridge body contrasts perfectly with the black highlights. Whether you’re in the driver’s seat, or relaxing in your camp chair, keeping an eye on the temperature of your fridge freezer has never been easier. A new Bluetooth® transmitter has been developed that allows full-control and monitoring via Android, Apple devices, and even ARB LINX. Now, you can adjust or monitor the fridge freezer’s temperature and receive an alert when your friend leaves the lid open. The transmitter is included at no additional cost with the purchase of a new Series II Fridge Freezer.
What’s New?
Color scheme:
Inspired by ARB Jack, the gun-metal color body of the fridge highlights the black plastics offering a smart and sleek contrast and improved UV resistance.
Electronic updates:
Backlit control panel buttons for ease-of-use in poor light conditions.
Customizable dimmable display.
12V power input display to assist with monitoring battery condition.
Communication:
A new transmitting module has been introduced that utilizes Bluetooth® connectivity that allows both monitoring and control of your Series II Fridge Freezer.
For existing ARB Fridge customers, the new transmitter will work with any ARB Fridge Freezer manufactured post-2014.*
The mobile application is available for free via Google Play or the Apple App Store.
If you choose to fully integrate your fridge freezer into your vehicle via LINX, update to the latest version (1.4 or above) and the module will download for free onto your device.
App Fridge Control (only available on Classic Series II):
Settings can be adjusted from the app such as; battery protection, unit measurement (°C or °F), display brightness, and preset temperature settings.
Target temperature can be manually adjusted or altered via customizable preset settings.
Fridge can be put into standby.
Series II vs Series I Fridge Freezers:
Dimensions:
All exterior and internal dimensions remain the same as the Series I Fridge Freezers.
Performance:
We’ve carried over the proven performance of the Series I Fridge Freezers utilizing the existing compressors and associated cooling components.
Functionality:
All the existing features and benefits such as removable lid, reversible basket, mounting points etc were carried over from Series I Fride Freezers.
Specifications:
Capacity: 50 Quart (72 x 12oz cans)
External Dimensions: 20in (H) x 15in (W) x 27.8in (D)
Internal Dimensions: Fruit & Dairy Compartment 8.1in (H) x 11.2in (W) x 6in (D) / Main Compartment 15.5in (H) x 11.2in (W) x 13.3in (D)
Weight: 53lbs
Cooling Capacity: 50˚F to 0˚F
Power: Built-in 12/24V DC and 100-240 AC power integrated battery protection system
Current Draw: 0.85 amps/hour average power consumption tested at 37.4˚F cabinet temp. 78.8˚F - 87.8˚F ambient temperature range. Test duration of 66 hours and supply voltage of 12V DC.
Tried and tested, the ARB Fridge Freezer has been a staple in the off-roading community for years thanks to its proven performance. ARB has given these reliable essentials a revamp in styling and characteristics–introducing the ARB Classic Fridge Freezer Series II. Featuring a new color scheme inspired by the recently released-ARB Jack, the gunmetal grey fridge body contrasts perfectly with the black highlights. Whether you’re in the driver’s seat, or relaxing in your camp chair, keeping an eye on the temperature of your fridge freezer has never been easier. A new Bluetooth® transmitter has been developed that allows full-control and monitoring via Android, Apple devices, and even ARB LINX. Now, you can adjust or monitor the fridge freezer’s temperature and receive an alert when your friend leaves the lid open. The transmitter is included at no additional cost with the purchase of a new Series II Fridge Freezer.
What’s New?
Color scheme:
Inspired by ARB Jack, the gun-metal color body of the fridge highlights the black plastics offering a smart and sleek contrast and improved UV resistance.
Electronic updates:
Backlit control panel buttons for ease-of-use in poor light conditions.
Customizable dimmable display.
12V power input display to assist with monitoring battery condition.
Communication:
A new transmitting module has been introduced that utilizes Bluetooth® connectivity that allows both monitoring and control of your Series II Fridge Freezer.
For existing ARB Fridge customers, the new transmitter will work with any ARB Fridge Freezer manufactured post-2014.*
The mobile application is available for free via Google Play or the Apple App Store.
If you choose to fully integrate your fridge freezer into your vehicle via LINX, update to the latest version (1.4 or above) and the module will download for free onto your device.
App Fridge Control (only available on Classic Series II):
Settings can be adjusted from the app such as; battery protection, unit measurement (°C or °F), display brightness, and preset temperature settings.
Target temperature can be manually adjusted or altered via customizable preset settings.
Fridge can be put into standby.
Series II vs Series I Fridge Freezers:
Dimensions:
All exterior and internal dimensions remain the same as the Series I Fridge Freezers.
Performance:
We’ve carried over the proven performance of the Series I Fridge Freezers utilizing the existing compressors and associated cooling components.
Functionality:
All the existing features and benefits such as removable lid, reversible basket, mounting points etc were carried over from Series I Fride Freezers.
Specifications:
Capacity: 82 Quart (120oz cans)
External Dimensions: 20in (H) x 17.7in (W) x 33.3in (D)
Internal Dimensions: Fruit & Dairy Compartment 8.1in (H) x 14in (W) x 6in (D) Main Compartment 15.8in (H) x 14in (W) x 18.8in (D)
Weight: 60lbs
Cooling Capacity: 50˚F to 0˚F
Power: Built-in 12/24V DC and 100-240 AC power integrated battery protection system
Current Draw: 0.85 amps/hour average power consumption tested at 37.4˚F cabinet temp. 78.8˚F - 87.8˚F ambient temperature range. Test duration of 66 hours and supply voltage of 12V DC.
If you are looking for a new way to keep the cans cold and your meals frozen, look no further than ARB's new Zero Fridge Freezer. Having both fridge and/or freezer space at the one time means you can travel for longer periods without restocking. Available in sizes including 47qt, 63qt, 73qt, and 101qt, the Zero Fridge Freezer can be installed in your car, camper, or trailer with ease thanks to the side-opening, quick-release lid to swap openings, and front and rear DC inlets. For extra convenience, the fridge also features a front AC inlet for home or powered site connection and a handy USB outlet to charge your devices. The Zero Fridge Freezer has boost function for rapid cool down and anti-condensation technology to keep contents dry and at the temperature you need. For all your cooling and traveling needs, make sure you have the Zero Fridge Freezer along for the trip.
Features:
Dual, independently-controlled cooling zones
Removable compartment divider and internal lid
Wireless monitoring and control via compatible Bluetooth-enabled devices
Highly-efficient, variable-speed compressor
Convenient USB five-volt, 3,000mA outlet for charging phones and similar devices
Dual DC power inlet at opposing ends for customized installations
Front AC power inlet for quick home or powered site connection
Tough, durable steel outer casing
Recessed carry handles with integrated tie-down points
Quick-release lid with non-slip glass/bottle provision
Low power draw LED interior light
Versatile, removable internal basket system with provision for tall items/bottle
Specs:
87 x 375ml cans with compartment and 108 cans without)
External Dimensions:(L) 29.7 in x (W) 18.5 in (H) 22.2 in
Internal Dimensions:
Upper Compartment: (L) 14 in x (W) 15.9 in x (H) 8.2
Lower Compartment: (L) 6.9 in (W) 15.9 in x (H) 7.1 in
Rear Zone: (L) 13.9 in x (W) 15.9 in x (H) 15.3 in
Weight:82 lb
Cooling Capacity: -7.6°F to +50°F
Power Voltage: 12/24V DC/100 240V AC Integrated battery protection system
Current Draw: 3.1Ah (DC12V set at 5 C, 32 C ambient temperature)
Transmitting module: Bluetooth connectivity allows 2-way communication on your mobile device
If you are looking for a new way to keep the cans cold and your meals frozen, look no further than ARB's new Zero Fridge Freezer. Having both fridge and freezer space at the one time means you can travel for longer periods without restocking.
Available in sizes including 73qt and 101qt, the Zero Fridge Freezer can be installed in your car, camper, or trailer with ease thanks to the side-opening, quick-release lid to swap openings, and front and rear DC inlets. For extra convenience, the fridge also features a front AC inlet for home or powered site connection and a handy USB outlet to charge your devices.
Both sizes of the Zero Fridge Freezer have dual cooling zones independently controlled via the panel on the front or wirelessly via the app on compatible Bluetooth-enabled devices.
The Zero Fridge Freezer has boost function for rapid cool down and anti-condensation technology to keep contents dry and at the temperature you need.
For all your cooling and traveling needs, make sure you have the Zero Fridge Freezer along for the trip.
101qt has two lids to keep compartments separate and chilled accordingly
SPECS:
Capacity: 101QT (144 x 375ml cans)
External Dimensions:(L) 36.8 in x (W) 21.6 in x (H) 20 in
Internal Dimensions:
Upper Compartment: (L) 15 in x (W) 12.8 in x (H) 10.4
Lower compartment: (L) 8 in x (W) 12.8 in x (H) 7.1 in
Rear Zone: (L) 6.7 in x (W) 12.8 in x (H) 17.5 in
Weight:72.8 lb
Cooling Capacity: -7.6°F to +50°F
Power Voltage: 12/24V DC/100 240V AC Integrated battery protection system
Current Draw: 2.9Ah (DC12V set at 5 C, 32 C ambient temperature)
Transmitting module: Bluetooth connectivity allows 2-way communication on your mobile device
If you are looking for a new way to keep the cans cold and your meals frozen, look no further than ARB's new Zero Fridge Freezer. Having both fridge and/or freezer space at the one time means you can travel for longer periods without restocking. Available in sizes including 47qt, 63qt, 73qt, and 101qt, the Zero Fridge Freezer can be installed in your car, camper, or trailer with ease thanks to the side-opening, quick-release lid to swap openings, and front and rear DC inlets. For extra convenience, the fridge also features a front AC inlet for home or powered site connection and a handy USB outlet to charge your devices. The Zero Fridge Freezer has boost function for rapid cool down and anti-condensation technology to keep contents dry and at the temperature you need. For all your cooling and traveling needs, make sure you have the Zero Fridge Freezer along for the trip.
Features:
Wireless monitoring and control via compatible Bluetooth-enabled devices
Highly-efficient, variable-speed compressor
Convenient USB five-volt, 3,000mA outlet for charging phones and similar devices
Dual DC power inlet at opposing ends for customized installations
Front AC power inlet for quick home or powered site connection
Tough, durable steel outer casing
Recessed carry handles with integrated tie-down points
Quick-release lid with non-slip glass/bottle provision
Low power draw LED interior light
Versatile, removable internal basket system with provision for tall items/bottle
Specs:
Capacity:65 x 12oz cans
External Dimension:(L) 26.6 in x (W) 16.7 in x (H) 19.5 in
Internal Dimensions:
Upper Compartment:(L) 19 in x (W) 11.5 in x (H) 8
Lower Compartment:(L) 12.4 in (W) 11.5 in x (H) 7.1 in
Weight: 53.1 lb
Cooling Capacity: -7.6°F to +50°F
Power Voltage: 12/24V DC/100 240V AC Integrated battery protection system
Current Draw: 0.8Ah (DC12V set at 5 C, 32 C ambient temperature)
Transmitting module: Bluetooth connectivity allows 2-way communication on your mobile device
If you are looking for a new way to keep the cans cold and your meals frozen, look no further than ARB's new Zero Fridge Freezer. Having both fridge and/or freezer space at the one time means you can travel for longer periods without restocking. Available in sizes including 47qt, 63qt, 73qt, and 101qt, the Zero Fridge Freezer can be installed in your car, camper, or trailer with ease thanks to the side-opening, quick-release lid to swap openings, and front and rear DC inlets. For extra convenience, the fridge also features a front AC inlet for home or powered site connection and a handy USB outlet to charge your devices. The Zero Fridge Freezer has boost function for rapid cool down and anti-condensation technology to keep contents dry and at the temperature you need. For all your cooling and traveling needs, make sure you have the Zero Fridge Freezer along for the trip.
Features:
Wireless monitoring and control via compatible Bluetooth-enabled devices
Highly-efficient, variable-speed compressor
Convenient USB five-volt, 3,000mA outlet for charging phones and similar devices
Dual DC power inlet at opposing ends for customized installations
Front AC power inlet for quick home or powered site connection
Tough, durable steel outer casing
Recessed carry handles with integrated tie-down points
Quick-release lid with non-slip glass/bottle provision
Low power draw LED interior light
Versatile, removable internal basket system with provision for tall items/bottles
Specs:
Capacity:96 x 12oz cans with compartment and 108 cans without
External Dimensions:(L) 29.7 in x (W) 18.5 in (H) 19.5 in
Internal Dimensions:
Upper Compartment:(L) 22.8 in x (W) 12.8 in x (H) 7.8
Lower Compartment:(L) 15.8 in x (W) 12.8 in x (H) 7.1 in
Weight: 61.3 lb
Cooling Capacity:-7.6°F to +50°F
Power Voltage: 12/24V DC/100 240V AC Integrated battery protection system
Current Draw: 0.8Ah (DC12V set at 5 C, 32 C ambient temperature)
Transmitting module: Bluetooth connectivity allows 2-way communication on your mobile device
The Jeep is loaded, bikini top is on and drinks are in your ARB Elements Fridge and you’re just about to go for a drive when suddenly the rain starts! Not to worry, keep on driving, you’ve got the all new ARB Elements Weatherproof Fridge Freezer that welcomes the rain! That’s right, this Fridge is as tough as is looks and will handle the harsh weather conditions it encounters.
The new ARB Elements Weatherproof Fridge Freezer is constructed of stainless steel and offers a fully weatherproof exterior. While designed to withstand 365 days a year mounted in the bed of a pickup, the new 63 QT Elements Fridge Freezer is just as suitable in the back of a SUV, Jeep or under a dual cab canopy, in the kitchen of the camper or on the deck of your boat.
In addition to its rugged stainless steel and weatherproof exterior, this 4WD, fishing and camping portable fridge freezer features a gas strut assisted lid, which means you no longer need to hold the lid open as you search the fridge. Wandering hands will be kept at bay with the introduction of a programmable electronic 4-digit pin lock, ensuring temperatures are not changed, drinks are not swiped and power is not switched.
Features
Stainless steel body with ARB embossing Unique infinite-position gas spring assisted lid Durable ASA plastic protective moldings Anodized aluminum latches Heavy duty cast stainless steel hinges Tamper-proof bolts for permanent mounting Security pin code protected electronic locking system Provision for padlock for added security Weather protected control panel Backlit LED display with dimming function Recessed back for power cable storage Easy carry handle design Reversible cabinet basket with removable divider Rubberized mounting feet Wireless display compatible Secop BD35F compressor Built in 3 stage battery protection Drain plug LED rear facing cabinet light with auto on/off Full-length cooling zone with dual height compartments
Specs:
Capacity: 96 x 12oz cans with compartment and 108 cans without
External Dimensions:(H) 17.1 in x (W) 19.3 in (D) 32.3 in
Internal Dimensions:
Fruit & Dairy Compartment:(H) 5.7 in x (W) 14.0 in x (D) 6.1
Main Compartment:(H) 13.1 in x (W) 14.0 in x (D) 18.8 in
Weight: 70 lb
Cooling Capacity:-7.6°F to +50°F
Power Voltage: 12/24V DC/100 240V AC Integrated battery protection system
Current Draw: 0.8Ah (DC12V set at 5 C, 32 C ambient temperature)
Transmitting module: Bluetooth connectivity allows 2-way communication on your mobile device
ARB Fridge Wiring Kit W/ Threaded Socket Features:
8 Gauge Double Insulated
20 Feet In Length
Includes covered socket and wiring with fuse holder
2-Year Warranty
Keep Food and Drinks Cold Out On The Trail
Keep your fridge around when tailgating or camping with this kit from ARB. ARB created this kit to be able to provide the best conditions for the fridge by minimizing voltage drop. This kit consists of 20ft (6m) of double insulated 8 gauge (6mm) auto cable, pre-assembled with in-line fuse and eyelets (8mm, 5/16") for quick installation onto your battery terminals. Included in this kit are 2 x 1/4" side entry quick-connect terminals and insulators. Also the rear terminals of the socket are identified with ' + & - ' for correct installation of the connectors.
ARB’s tie down system is ideal for ensuring your fridge is secured at all times. With black powder coated steel clamps and plastic coated ends, matched with webbing straps and quality spring loaded clips, this accessory is a smart and functional addition for your ARB Fridge Freezer. Powder coated steel adaptor brackets bundled with stainless steel mounting hardware means fitment to ARB’s fridge slide is simple.

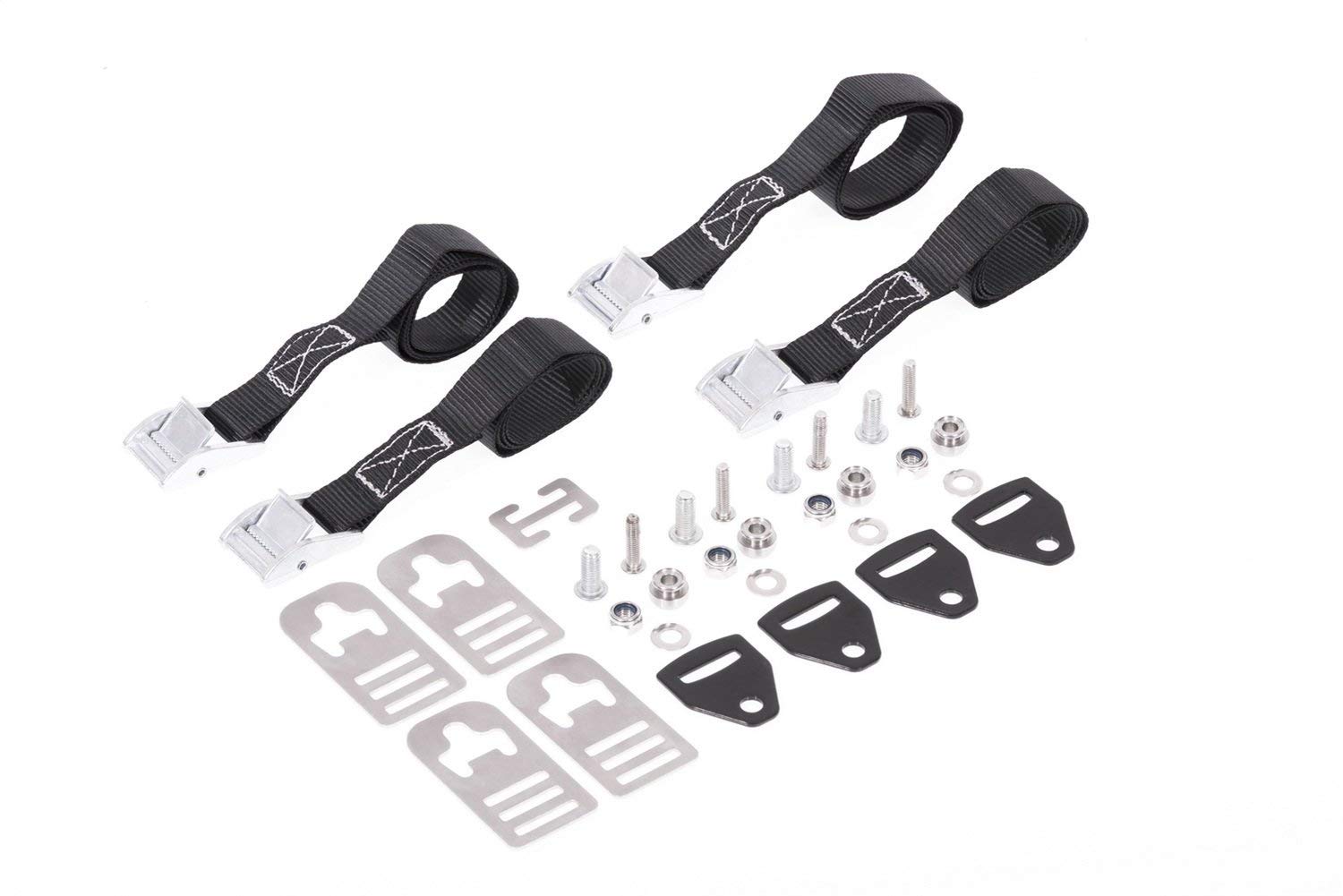

ARB Zero Fridge Freezer Tiedown Kit Features:
Semi-permanent or temporary solution to fasten Zero fridge in place
Stainless Steel bracket
Tie down mounting system
Easy to remove
Mounts to any hard surface
Keep your fridge in place and your food safe during your next camping trip
Secure your ARB Zero Fridge Freezer with a Tiedown kit. Keep in place in the back of your Jeep by attaching below fridge handle using the included stainless-steel brackets. For added convenience brackets can be mounted directly to any hard surface.
Easy to Install
Kit includes brackets, straps and hardware. Covered by 3 Year Limited Manufacturer Warranty

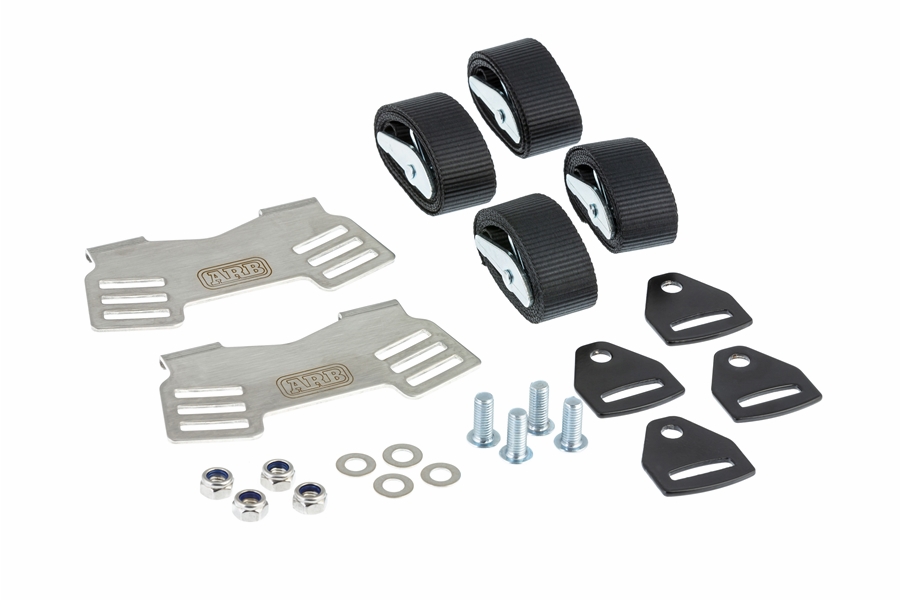

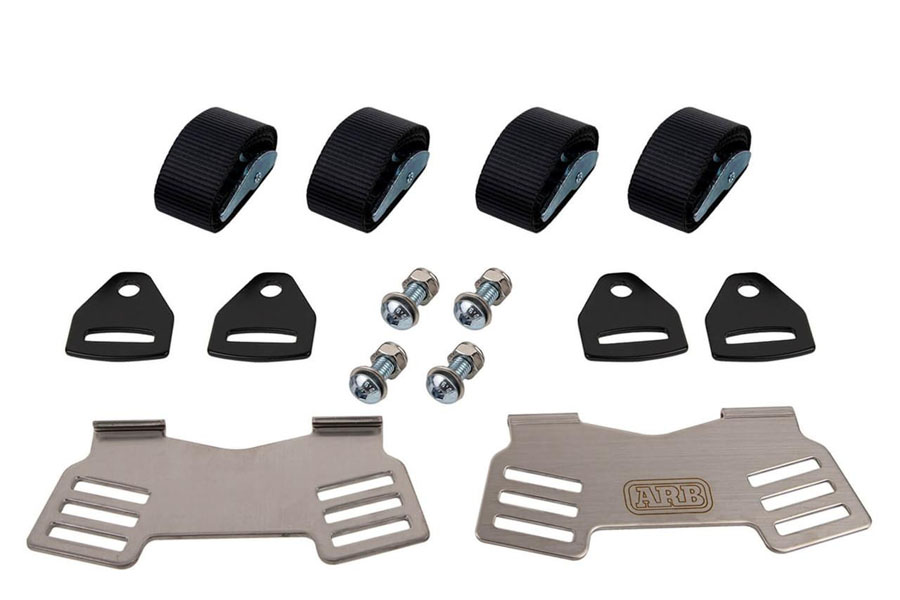

ARB Elements Fridge Tiedown Kit Features:
Semi-permanent or temporary solution to fasten Elements Fridge in place
Stainless Steel brackets
Tie down mounting system
Easy to remove and install
Mounts to any hard surface
Quick release buckles
Bottle Opener
Retention Buckle to prevent cord damage
Includes all mounting hardware to suit ARB Zero Fridge
Secure your Elements Fridge with a Tiedown Kit from ARB
Perfect for rough roads and trails this kit will help keep your fridge and food in place. Serving dual function are the stainless steel brackets that also work as a bottle opener.
Easy Set up
Made for the ARB Elements Fridge Freezer this kit includes all necessary hardware, straps and stainless-steel brackets. Mounts directly to any hard surface. Covered by 3 Year Limited Manufacturer Warranty.
Note: Fridge and accessories sold separately.

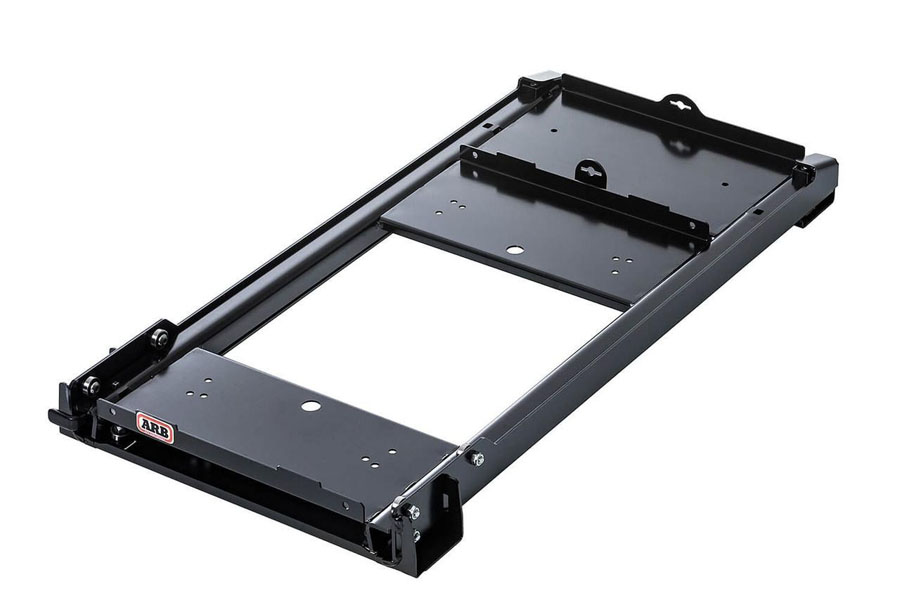

ARB Fridge Freezer Slider 37/50 qt. pulls the ARB fridge freezer out of vehicles so there is easier access when the freezer is pulled out of the vehicle. It works well on any vehicle, and is easy to install.
**ONLY COMPATIBLE WITH CLASSIC SERIES 1 AND CLASSIC SERIES 2 MODELS.
This fridge slide accommodates the ARB 63 and 82 quart Fridge Freezers
The product development team created a new product to add to the range of our popular heavy-duty fridge slides. This slide enables the sliding tray to extend more than the length of the fridge. This benefits users as the fridge comes out further from the vehicle so you do not have to reach as far (particularly with drop down tailgates).
This slide enables any user to slide out the Fridge Freezer to have more comfortable position to gain easy access to cold food and drinks, organize your content and clean the fridge.
Optional slide allows you to pull your ARB fridge freezer out of your vehicle on a drawer-type slide for easier access.
Design for 63 and 82 Quart Fridge Freezers
Tie downs sold separately
Note: The mount is for the Elements Series Fridge/Freezer 63qt.
