Artec Industries 5-Hole Knuckle Bolt Kit
Product Resources
Features & Product Details

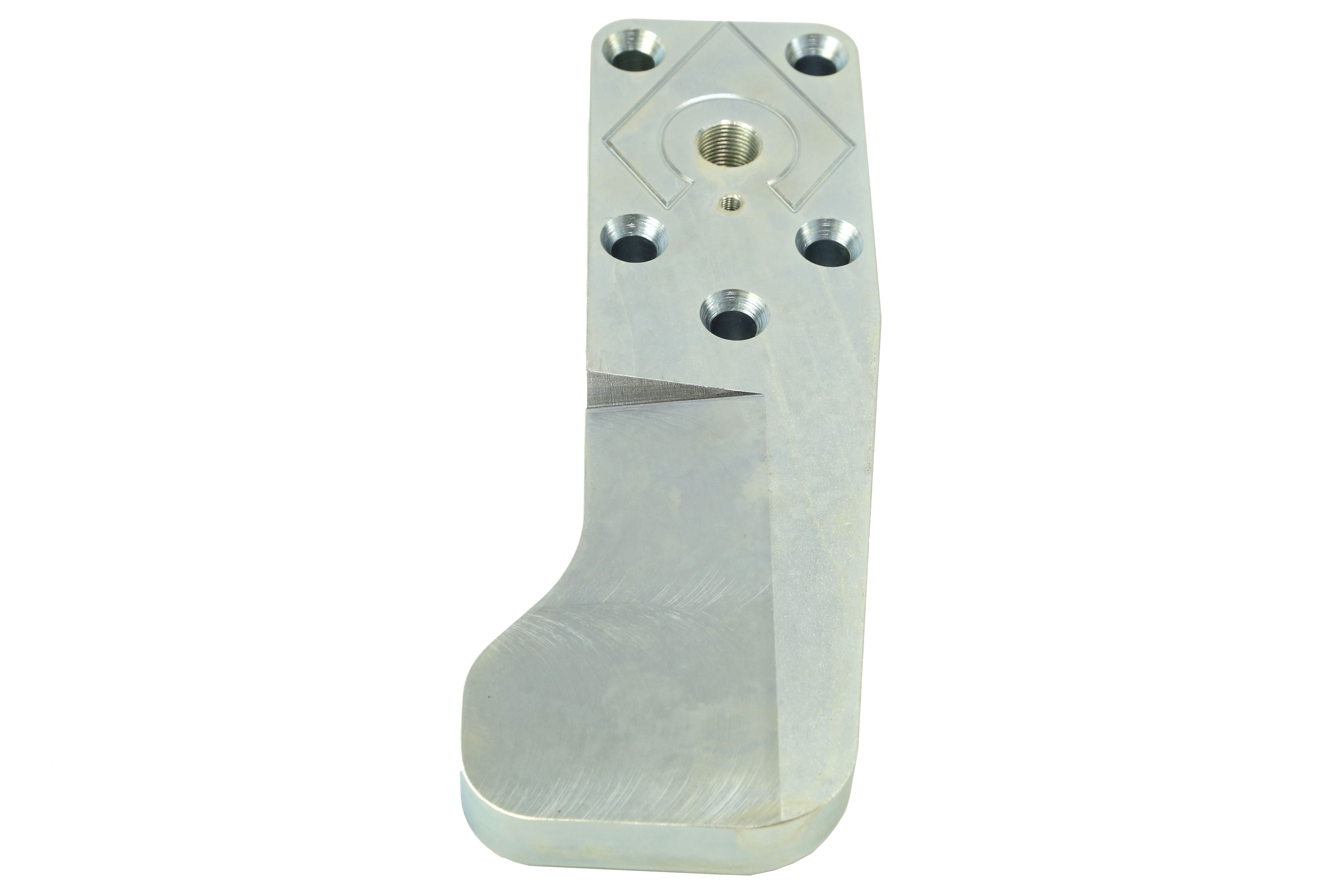

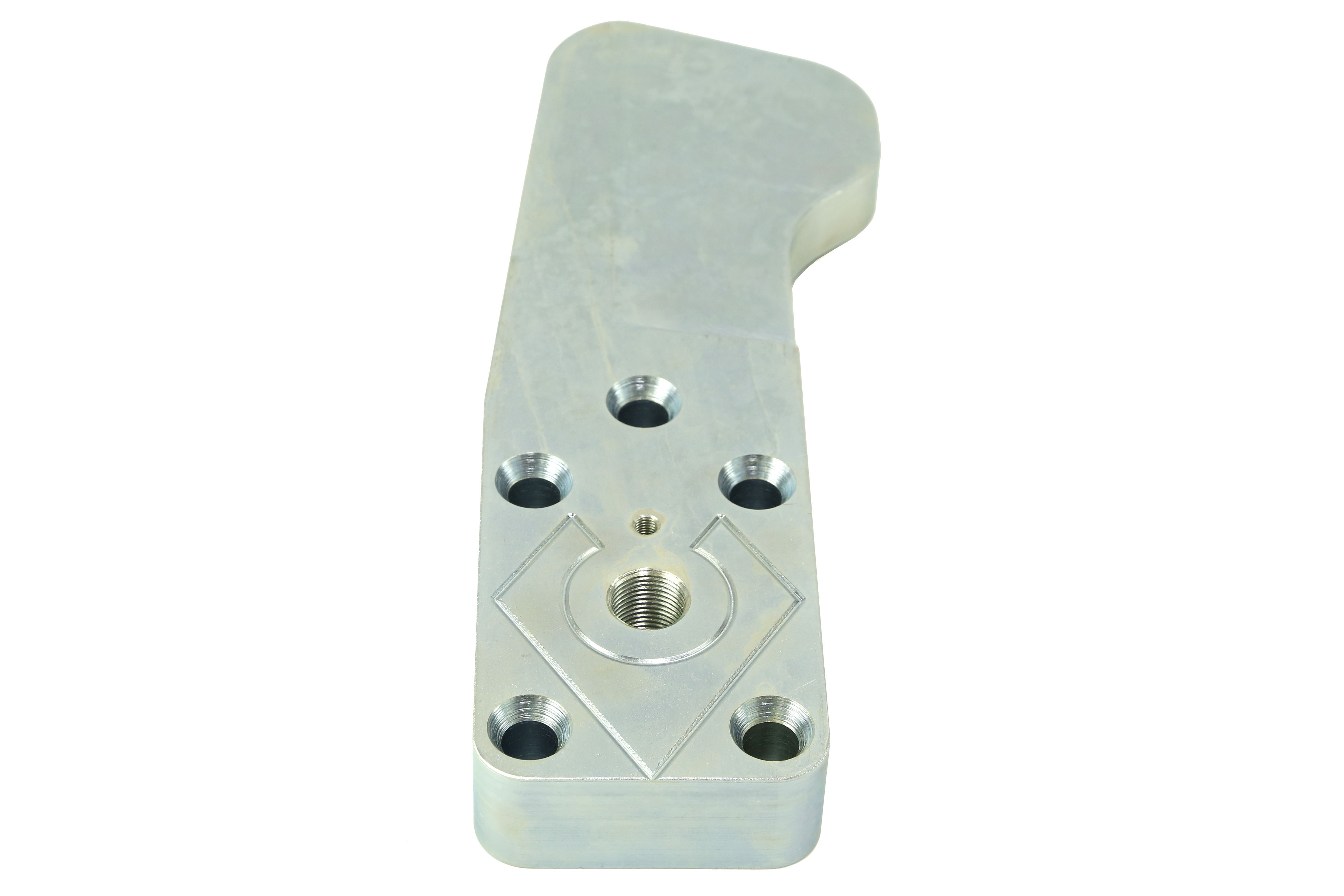

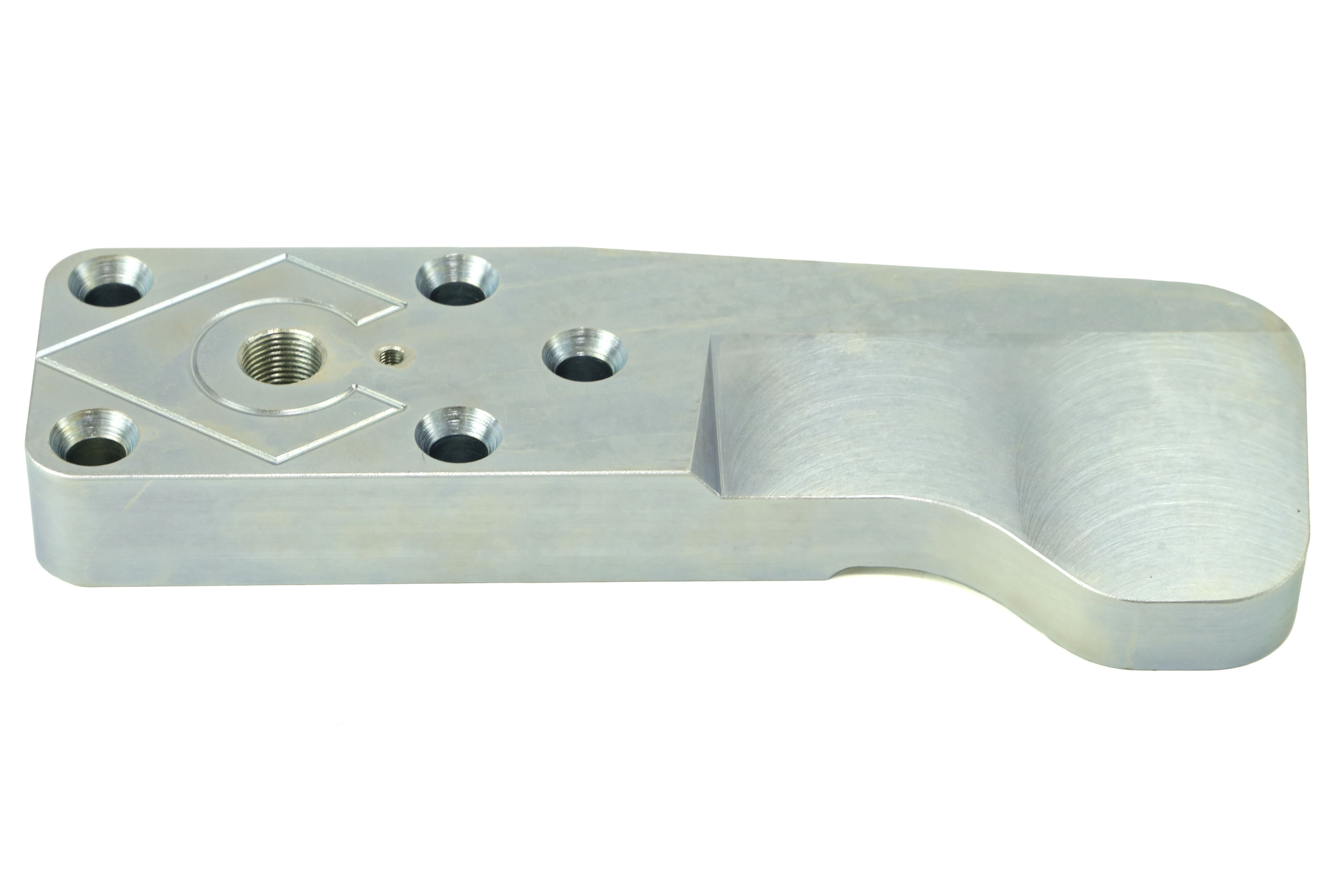

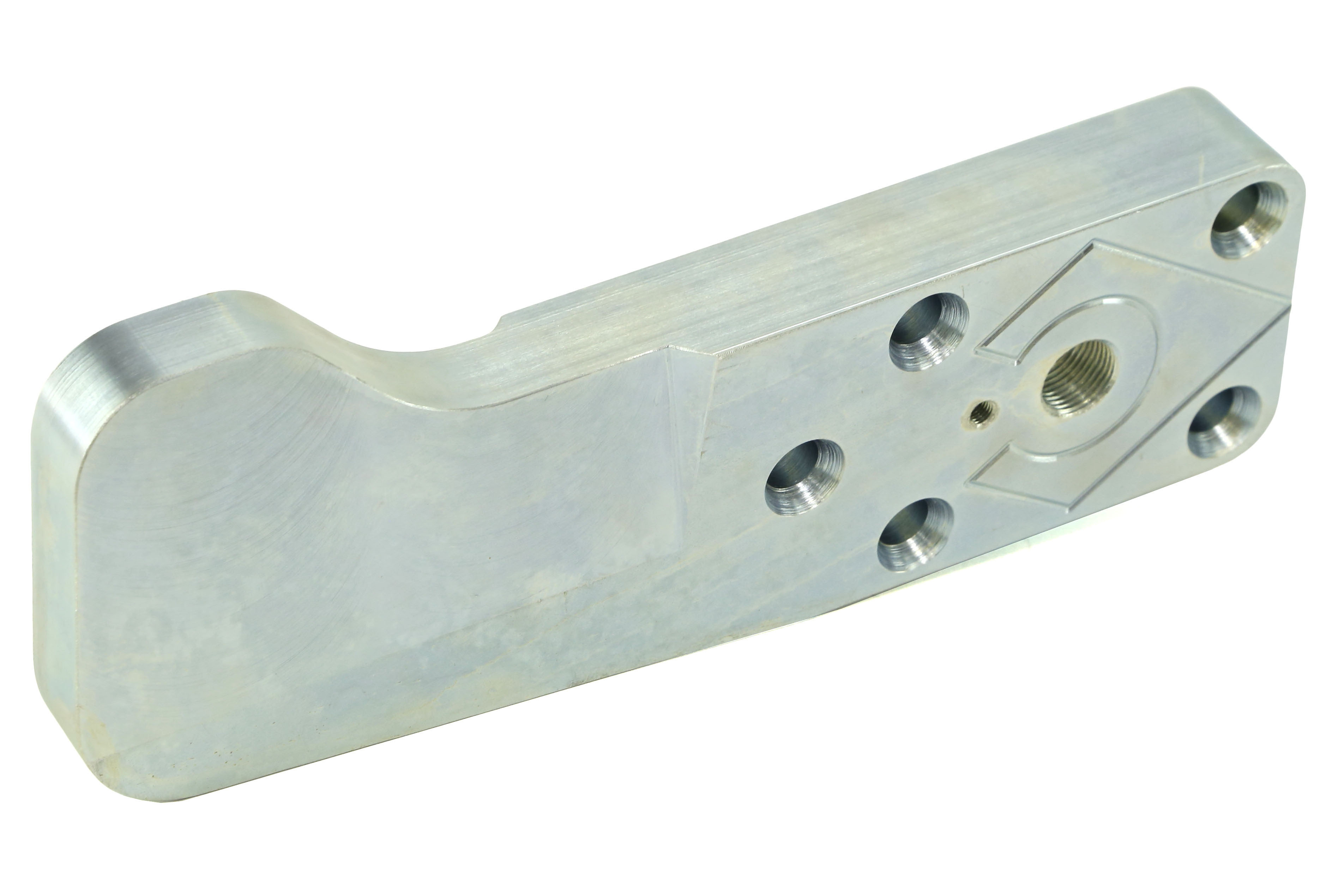

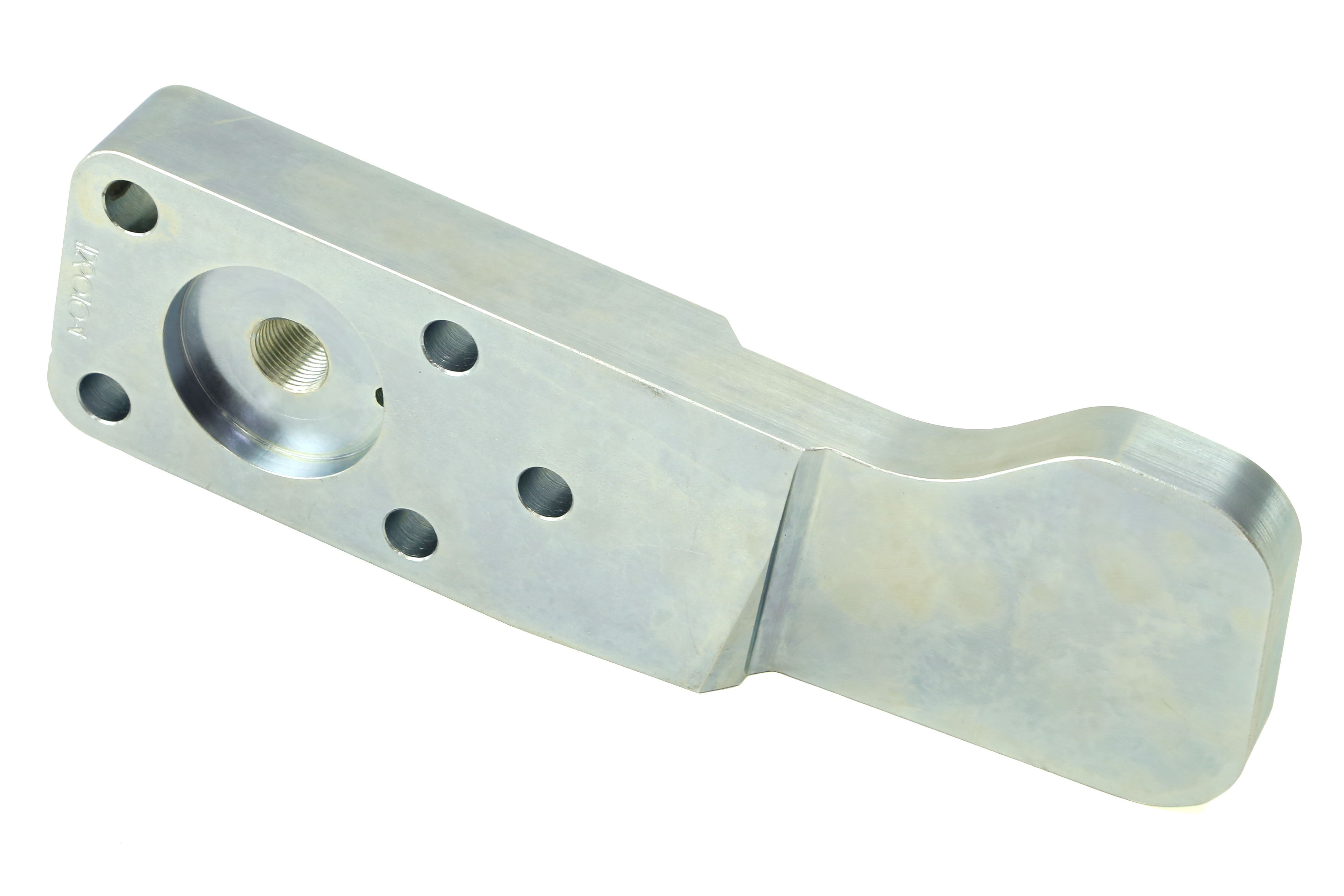

The knuckle Bolt kit has specifically been designed to work with the 44 High Steer Arms to enhance both the entire knuckle and the steering. It also provides options for mounting on the steering. This kit has been designed to fit multiple different steering configurations, whether it is running your tie rod in double sheer or the knuckle bolt just needs to be strengthened for efficiency.

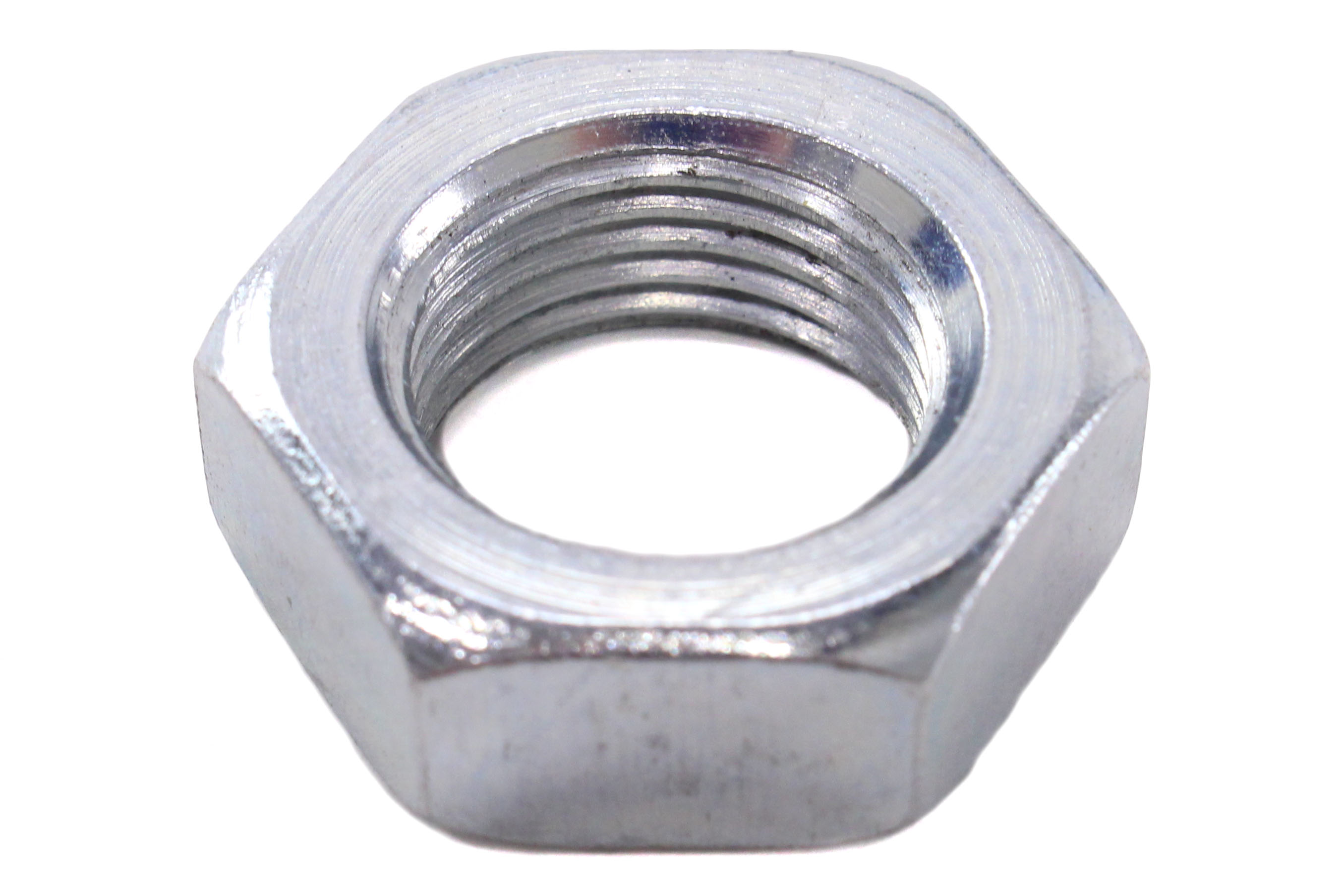

The kit has one 3/4 inch grade 8 bolt, one 1.25 inch outer diameter, .25 inch wall sleeve, one 3/4 inch all-steel mechanical locking nut, and one knuckle exact bracket. For a pair of quality high steer arms, two bolt kits will need to be purchased. In order for you to fit the two bolt kits perfectly, they will require some welding on the sleeves to the brackets.
Basic drilling tools will be required to drill the factory tie rod end hole on the knuckle to a 3/4 inch hole for the kit to fit perfectly. The kit features include; 3/4 inch -16 tpi 4 inch long grade 8 bolt, 3/4 inch machined 1.25 inch OD-.250 inch wall DOM sleeve, knuckles precise brackets to ensure proper fitment. These features enhance overall knuckle and steering strength, optional double sheer and can mount over or under arm.
Specifications
PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED
QUESTIONS & ANSWERS
This Part Fits
This item is non application specific.
Please verify compatibility before purchase. May require some modification for proper installation.
