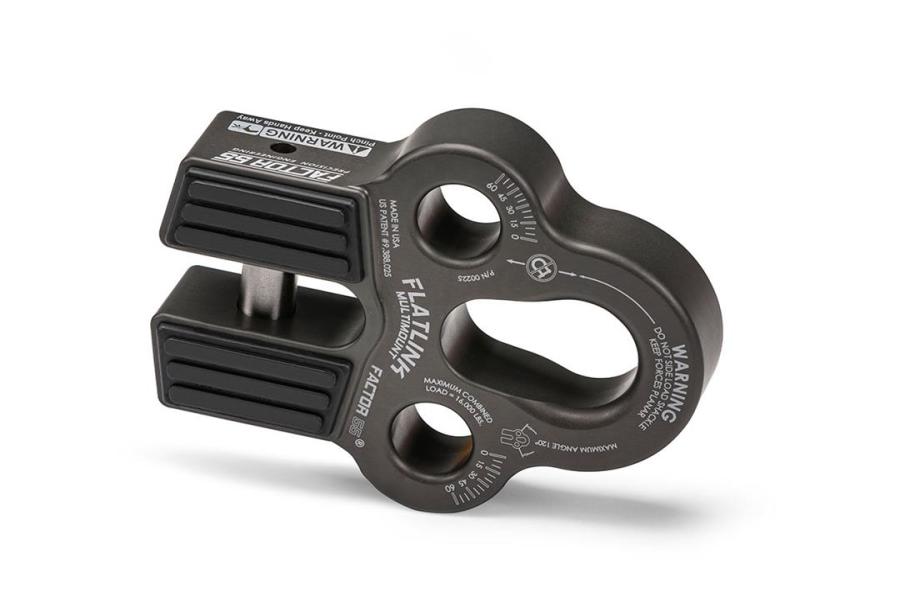

Factor 55 Flatlink Multimount, Gray
Factor 55 Flatlink Multimount, Gray
Factor 55 Flatlink Multimount, Gray

Factor 55 Flatlink Multimount, Gray

Write a Review | Q&A
Part # 00225-06
$199.00
msrp: $210.00

Product will ship from manufacturer, average time to ship: 3-5 business days
Universal part

Product Resources

Features & Product Details

FlatLink MultiMount is designed for difficult off camber vehicle recovery scenarios where two different winches pull directions are often necessary. The two additional shackle pin mounting holes provide secure shackle attach points for multiple winch pull directions, while the center hole provides a secure conventional center pull shackle mount point. This arrangement eliminates any shackle side loading forces at the Multimount interface (Shackles are free to rotate and align to the load directions).

Winching with a bridle arrangement is also possible by using the two outer shackle pin mounting holes in combination with common bridle rigging. Like the rest of the FlatLink product line, the MultiMount may be folded flat against fairlead surfaces when stowed, resulting in minimal impact to vehicle approach angles.

Features

• Replace conventional winch hooks with a safer more secure shackle/D-ring
• Multiple shackle interface for bridle and off-camber towing
• Replace conventional winch hooks with a safer more secure shackle/D-ring
• Lightweight – Precision CNC machined 6000 series aluminum
• No splicing required – titanium double shear pin design
• Designed for both steel cables and synthetic winch ropes
• Integrated EPDM rubber pads for fairlead protection
• Foldable – 1.75” thick (Compatible with all fairlead license plate mounting brackets)
• For rope and cable diameters up to 3/8’’
• Fits multiple 3/4’’ screw pin shackles

• Oval Hole opening connects to either the pin or bow end of common ¾” screw pin shackles
• Oval Hole opening connects to the pin ends of 7/8” and 1” screw pin shackles
• Fits over most OEM tow hooks
• WARNING: Keep forces in line. DO NOT SIDE LOAD SHACKLE
• 5/8” diameter 6AI-4V titanium double shear pin
• Max Load: 16,000 pounds
• Ultimate Strength: 40,000 pounds
• Weight: 30oz

Specifications

Brand: Factor 55
Capacity: 16000lbs
Color: Grey
Finish: Anodized
Material: Aluminum
Type: Winch Hook
Mfgr. Warranty: 1 Year Warranty
Condition: New Product
Return Policy:
Standard

PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

REVIEWS & CUSTOMER MEDIA

Be the first to write a review

QUESTIONS & ANSWERS

No questions have been asked about this product.

This Part Fits

Universal Product
This item is non application specific.
Please verify compatibility before purchase. May require some modification for proper installation.
