Artec Industries Dana 44 Knuckle Bolt Kit

Artec Industries 4ft Tubing knuckle bolt kit has been designed to specifically work with the 44 high steer arms to enhance both the knuckle and the steering. It also provides options for mounting the steering. The bolt kit can be used to run the tie rod in double sheer or re-enforce the knuckle. It has been designed to fit multiple different steering configurations .

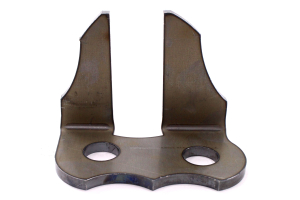

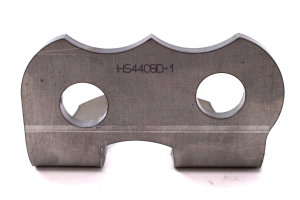

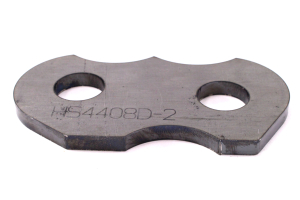

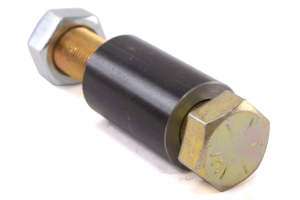

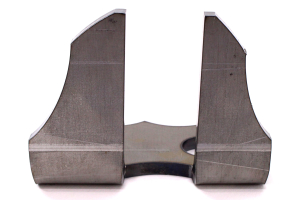

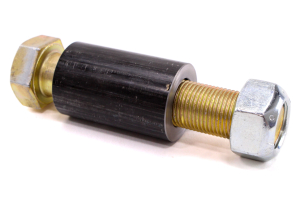

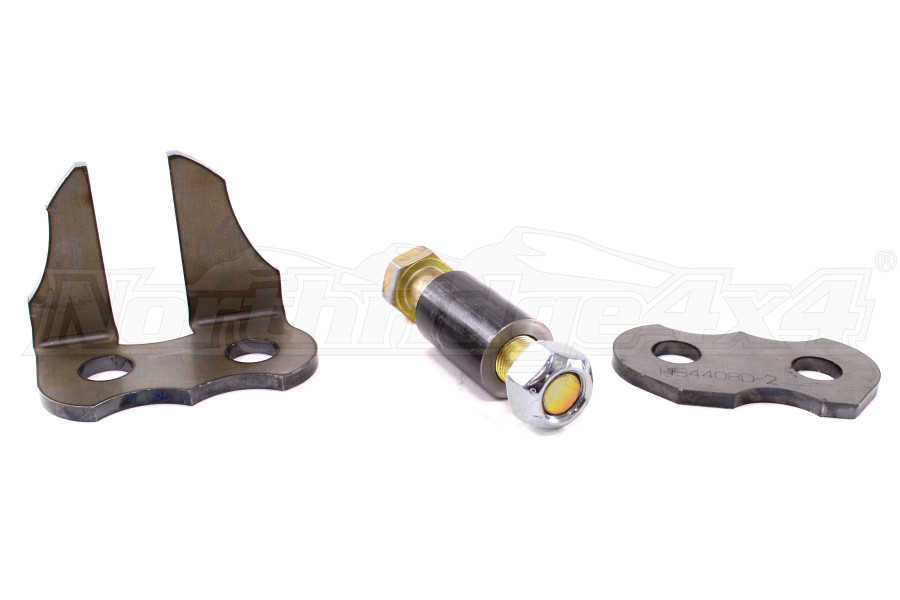

The kit has one 3/4 inch grade 8 bolt, one 1.25 inch outer diameter, .25 inch wall sleeve, one 3/4 inch all-steel mechanical locking nut, and one knuckle exact bracket. For a pair of quality high steer arms, two bolt kits will need to be purchased. In order for you to fit the two bolt kits perfectly, they will require some welding on the sleeves to the brackets for proper fitment.

Basic drilling tools will be needed to drill the factory tie rod end holes on the knuckle to get a 3/4 inch hole for this kit to work perfectly. The kit features include; 3/4 inch -16 tpi 4 inch long grade 8 bolt, 3/4 inch machined 1.25 inch OD-.250 inch wall DOM sleeve, knuckles particular brackets to ensure proper fitment. These features enhance overall knuckle and steering strength, optional double sheer, and can mount over or under arm.
