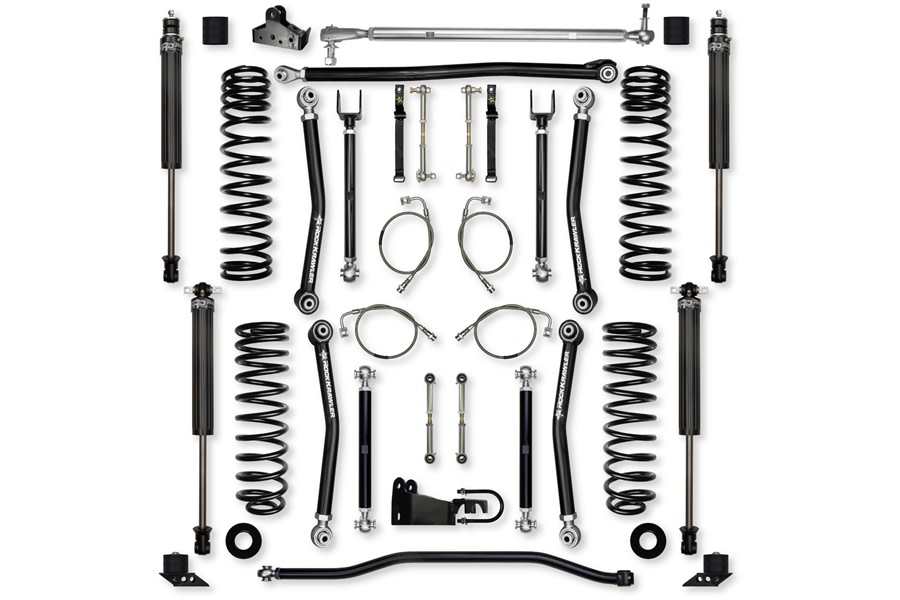

Rock Krawler 4.5in X-Factor Stage 1 Mid Arm Lift Kit - JK 4Dr

Rock Krawler 4.5in X-Factor Stage 1 Mid Arm Lift Kit

JK 4Dr

Rock Krawler 4.5in X-Factor Stage 1 Mid Arm Lift Kit - JK 4Dr
INCLUDED IN PRICE
$3,918.96
15%
Off
(Price as configured)

Universal part
You will earn Reward Points with this Purchase.
Write a Review | Q&A
Part # JK45XF-4S1We price match! Call 866-601-5340!
ANY QUESTIONS?

Product Resources

Features & Product Details

The Rock Krawler Suspension JKU Wrangler 4.5 inch X-Factor Mid-Arm System is specifically designed for Wrangler owners who want a complete system, bolt-in installation, and the best articulation of any MID-ARM kit on the market. Our system proves its durability and off-road performance every time you hit the streets or trail! Our industry leading, X-Factor Series, adjustable upper and lower control arms offer a total of 95 degrees of misalignment when paired with our Pro-X Krawler Joints and Adventure Series joints. The inherent bind in a factory JK control arm is greatly reduced. Our maintenance free "Adventure Series" joints are found in your front and rear control arms at the frame connection, while our "PRO Krawler Joints" tie in your axle connections.

With so much adjustability, it allows you to precision tune the JK's caster and pinion angle front and rear. Driving you home with the most comfortable ride possible in a Wrangler, are our TRIPLE RATE coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM linear rate springs. The coil itself is built with the proper "Free-length" for off-road articulation and stays firmly seated in the coil bucket (as long as a proper length shock is installed), and overall a very controlled reaction to bumps, rocks, sand, mud and whatever else you can manage to throw at them! All Rock Krawler JK systems include correction pads that reduce the spring bow inherent in the factory set up. The provided track bar geometry corrections, both front and rear, lets you perfectly center the axles so there is no compromise in on road handling.

System Benefits:

  • Complete bolt in system
  • Excellent highway ride and handling
  • The best off-road ability of all Mid Arm Systems
  • Improved rear roll center
  • Tuned Triple Rate Coils
  • Spring Correction Seats
  • Vehicle lean correction
  • Upgradable to RK Longarm System
  • Best Technical support in the industry
  • Jeep remains level on all 4 corners
  • Lifetime Warranty Coverage
  • Wheel Fitment:

  • We typically recommend 4.5" of backspacing on a wheel used with 33" & 35" tall tires
  • We typically recommend 3.5" of backspacing on a wheel used with 37" tall tires
  • Tire Fitment:

  • 33" or 35" Tires using OEM fender flares
  • 37" tires if using flat fenders
  • General Notes:

  • All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
  • If building with a spare delete we recommend dropping 1” in coil lift height for the rear.
  • If building an overland or heavily up-fitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
  • We recommend a new front driveshaft if you plan to off-road routinely. (Adam's Driveshaft, Tom Woods, J.E. Reel)
  • Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
    Return Policy:
    Standard
