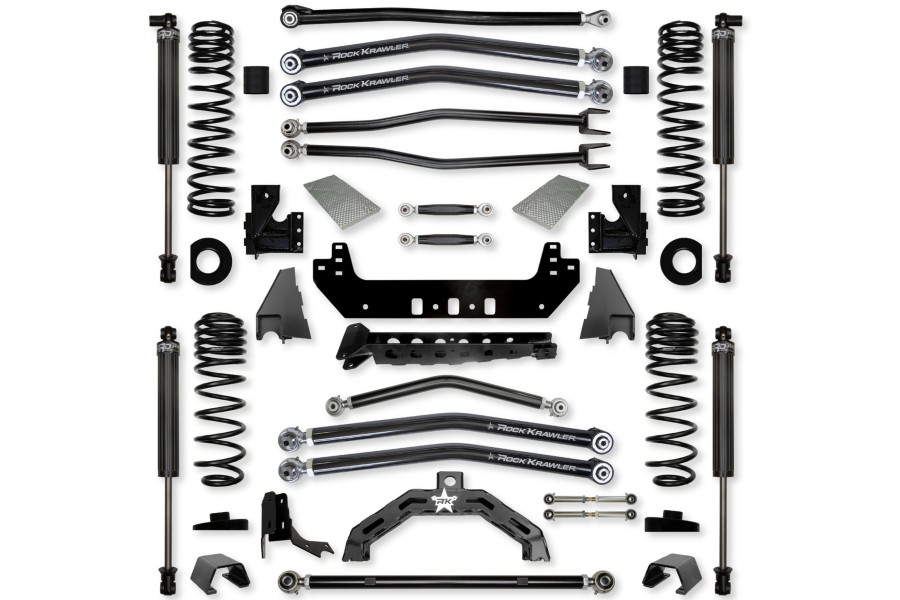

Rock Krawler 3in Adventure-X 'No Limits' Long Arm Lift Kit  - Stage 1 - JT Rubicon

Rock Krawler 3in Adventure-X 'No Limits' Long Arm Lift Kit - Stage 1

JT Rubicon

Rock Krawler 3in Adventure-X 'No Limits' Long Arm Lift Kit  - Stage 1 - JT Rubicon
This item is no longer available.
ANY QUESTIONS?

Product Resources

Features & Product Details

The Rock Krawler 3.0 Adventure-X Systems is the ultimate in compromise between daily driver/hard core off-roader. The Rock Krawler No Limits systems feature our No limits front sway bar links that allow Rubicon owners to utilize the factory Rubicon sway bar disconnect feature and still achieve full articulation. The Adventure-X systems combine the benefits of a full high clearance 4 link front suspension with a high clearance independent 3 link rear suspension. This is where conventional on road handling meets bad a$$ off-road ability. The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The combination of a full high clearance 4 link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails.

System Benefits:

  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Full High Clearance Design
  • High Clearance 4 Link Long Arm Front Suspension
  • High Clearance Independent 3 Link Long Arm Rear Suspension
  • Weld on Long Arm Mounting Brackets with Weld Scheduling just like OEM
  • Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
  • Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability
  • Tire Fitment:

    Sport and Sahara with Full OEM Fenders

    38in Tall Tires (4in Bump Stop Height Recommended)

    Sport and Sahara with Trimmed or High Lined OEM Fenders

    40in Tall Tires (4in Bump Stop Height Recommended)

    Rubicon with Full OEM Fenders

    39in/40in Tall Tires (4in Bump Stop Height Recommended

    Rubicon with Trimmed or High Lined OEM Fenders

    42in Tall Tires (4in Bump Stop Height Recommended)

    Wheel Fitment:

    Sport and Sahara Wheel Fitment Recommendations

    38in Tall Tires - Recommend 3.5in of Backspacing

    Rubicon Fitment Recommendations

    39in Tall Tires - Recommend 4.0in of Backspacing

    42in Tall Tires - Recommend 3.5in of Backspacing

    Shock Notes:

    Generic Front Shock Length - 18-19in Collapsed/ 31in Maximum Extended

    Generic Rear Shock Length - 19in Collapsed/ 32in Maximum Extended

    General Notes:

    *All lift heights based on Rubicon models for standard style build (i.e., front bumper and winch).

    *If building an overland or heavily upfitted build in the back, we recommend upsizing 1in in coil lift height for the rear.

    *Designed to maintain 1/2in of rake on Rubicon Models

    *As shown valid for OEM axles only

    *If so equipped will require removal of rear shutter shock

    *For tires larger than 37in or hard core off-road use, welding of the rear cradle to the axle tubes is required.

    *Requires welding of front long arm mounts

    *Requires the use of Steersmarts XD Yeti HD Bottom Mount Drag Link for Off-Road Use

    *Not intended for use with 1-piece rear driveshaft.

    *Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29in

    *Requires welding of the Front and Rear Long Arm Mounts

    *Requires removal of the OEM frame side lower front and rear control arm mounts

    *Requires removal of the OEM frame side front and rear upper control arm mounts

    *Requires removal of the OEM axle side rear lower control arm and track bar mounts

    *Requires modifying the OEM rear shock mounts and welding of the raised rear upper shock mounts

    *Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up

    Specifications

    Brand: Rock Krawler
    Control Arms Included: Yes
    Lift: 3.00in
    Mfgr. Warranty: Lifetime Limited
    Condition: New Product
    Return Policy:
    Standard
