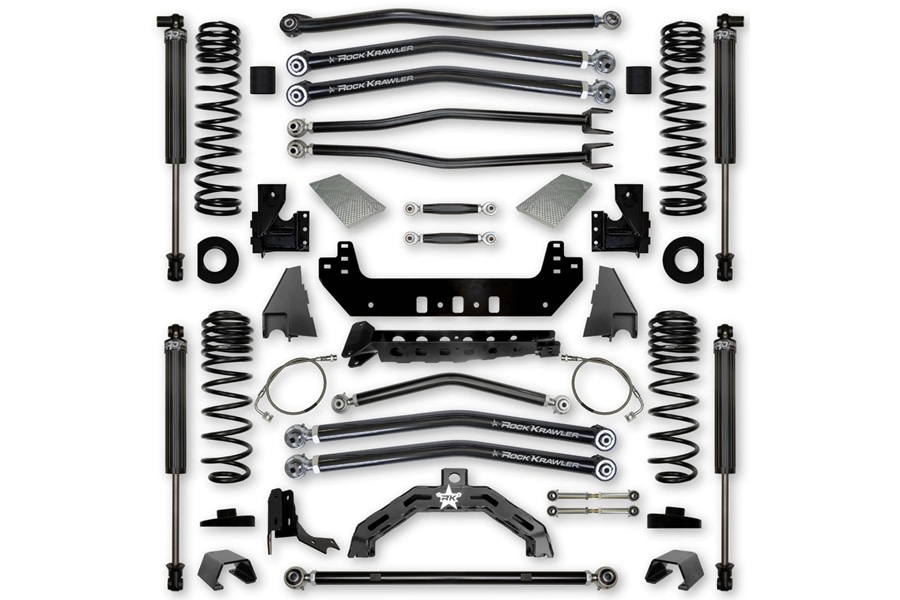

Rock Krawler 4.5in Adventure-X 'No Limits' Long Arm Stage 1 Lift Kit - JT Rubicon

Rock Krawler 4.5in Adventure-X 'No Limits' Long Arm Stage 1 Lift Kit

JT Rubicon

Rock Krawler 4.5in Adventure-X 'No Limits' Long Arm Stage 1 Lift Kit - JT Rubicon
This item is no longer available.
ANY QUESTIONS?

Product Resources

Features & Product Details

The Rock Krawler 4.5 Adventure-X Systems is the ultimate in compromise between daily driver/hard core off-roader. The Rock Krawler No Limits systems feature our No limits front sway bar links that allow Rubicon owners to utilize the factory Rubicon sway bar disconnect feature and still achieve full articulation. The Adventure-X systems combine the benefits of a full high clearance 4 link front suspension with a high clearance independent 3 link rear suspension. This is where conventional on road handling meets bad a$$ off-road ability. The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The combination of a full high clearance 4 link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails.

System Benefits:

  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Full High Clearance Design
  • High Clearance 4 Link Long Arm Front Suspension
  • High Clearance Independent 3 Link Long Arm Rear Suspension
  • Weld on Long Arm Mounting Brackets with Weld Scheduling just like OEM
  • Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
  • Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability
  •

    Tire Fitment:
    Sport and Sahara with Full OEM Fenders
    38" Tall Tires (4" Bump Stop Height Recommended)
    Sport and Sahara with Trimmed or High Lined OEM Fenders
    40" Tall Tires (4" Bump Stop Height Recommended)
    Rubicon with Full OEM Fenders
    39"/40" Tall Tires (4" Bump Stop Height Recommended
    Rubicon with Trimmed or High Lined OEM Fenders
    42" Tall Tires (4" Bump Stop Height Recommended)

    Wheel Fitment:
    Sport and Sahara Wheel Fitment Recommendations
    38" Tall Tires - Recommend 3.5" of Backspacing
    Rubicon Fitment Recommendations
    39" Tall Tires - Recommend 4.0" of Backspacing
    42" Tall Tires - Recommend 3.5" of Backspacing

    Shock Notes:
    Generic Front Shock Length - 18-19" Collapsed/ 31" Maximum Extended
    Generic Rear Shock Length - 19" Collapsed/ 32" Maximum Extended

    General Notes:
    *Requires the use of Steersmarts XD Yeti HD Bottom Mount Drag Link for Off-Road Use
    *All lift heights based on Rubicon Models
    *Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29"
    *Requires welding of the Front and Rear Long Arm Mounts
    *Requires removal of the OEM frame side lower front and rear control arm mounts
    *Requires removal of the OEM frame side front and rear upper control arm mounts
    *Requires removal of the OEM axle side rear lower control arm and track bar mounts
    *Requires modifying the OEM rear shock mounts and welding of the raised rear upper shock mounts
    *Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
