ARB Dana 60HD 35 Spline 4.10 Down Air Locking Differential
ARB Dana 60HD 35 Spline 4.10 Down Air Locking Differential
ARB Dana 60HD 35 Spline 4.10 Down Air Locking Differential

ARB Dana 60HD 35 Spline 4.10 Down Air Locking Differential

Write a Review | Q&A
Part # RD167We price match! Call 866-601-5340!
We Price Match
$1,399.95

In stock!
Universal part
2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!!
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Features & Product Details

The world's premier traction aid, an ARB Air Locker keeps you moving in all conditions. With the flick of the switch an Air Locker gives instant lock at any moment, and its super strong design allows activation at any speed, allowing you to tackle the toughest terrain. The advantage of the Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the internal differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates like a conventional open differential. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.



Features

  • Provides 100 percent traction on demand without affecting on-road drivability or driveline wear
  • Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver's seat
  • Two-piece design is ultra-durable and extremely strong, minimal moving parts ensure maximum reliability
  • Patented timed locking mechanism offers high strength and ultra-fast unlocking
  • Steel reinforced, elastomer bonded annular seal designed to handle the most extreme climatic temperatures on Earth

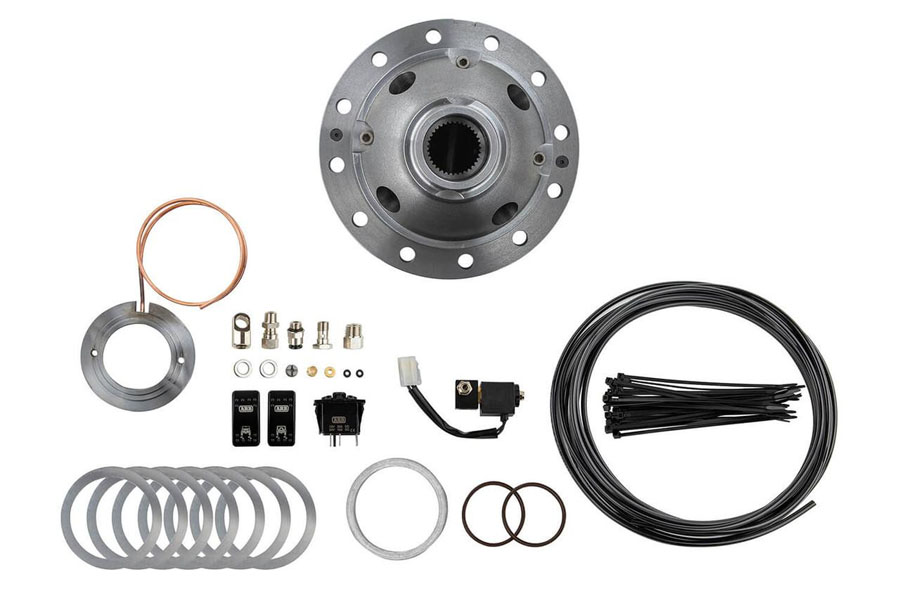

  • Kit includes: Air Locker differential, activation switch, solenoid valve, air line and bulkhead fitting
  • Air compressor required for operation (sold separately)
  •

    Fitment Info

  • Axle: Full Float Dana 60; Position: Rear; Shaft: 1.50 in; Spline: 35; Ratio: 4.10 Down
  • Axle: Dana 60; Position: Rear; Shaft: 1.50 in; Spline: 35; Ratio: 4.10 Down
  • Axle: Dana 60; Position: Front; Shaft: 1.50 in; Spline: 35; Ratio: 4.10 Down
  •

    Note:

  • Several axle shaft variants were used. Verify spline count prior to ordering.
  • Reverse rotation Dana 60 front ends with aftermarket ring and pinion sets may require use of  RD166 or RD167. This is determined by the ring and pinion.
  •

    In order to run this part on your vehicle, these additional parts are required:

  • CKSA 12 air compressor (extremely compact). Operates up to 2 air lockers. Not intended for oversized tire inflation.
  • CKMTA12 air compressor (Still compact, operates up to 2 air lockers when paired with 171503, and will inflate tires and run air tools when paired with a 171302, and will run even faster when paired with 171501 air tank.
  • Product Video

    Specifications

    Brand: ARB
    Axle Type: Dana 60
    Gear Ratio: 4.10 and Down
    Location: Front or Rear
    Locker Type: Selectable Air
    Qty: 1
    Spline Count: 35
    Mfgr. Warranty: 5 Year
    Condition: New Product
    Return Policy:
    Standard

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
