ARB Front/Rear Air Locker M220/M210 35 Spline

Name: ARB Front/Rear Air Locker M220/M210 35 Spline
Brand: ARB
SKU: RD246
Price: 1299.95 USD
Availability: InStock

JT/JL RUBICON

Write a Review | Q&A

Part # RD246

$1,299.95

3897 entries2598 entries - 2025 Northridge4x4 Jeep Giveaway

Quantity

Only 3 left!

Qualifies for
free shipping!

Set your vehicle to confirm fitment

2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!!

You will earn Reward Points with this Purchase.

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

The world's premier traction aid, an ARB Air Locker keeps you moving in all conditions. With the flick of the switch an Air Locker gives instant lock at any moment, and its super strong design allows activation at any speed, allowing you to tackle the toughest terrain. The advantage of the Air Locker lies in the pneumatically operated locking system inside the differential. When activated, the Air Locker prevents the internal differential gears from rotating and therefore prevents the axle shafts from turning independently of each other. With both wheels tied directly to the rotation of the ring gear, the vehicle maintains maximum possible traction at all times. When unlocked, it operates like a conventional open differential. An Air Locker equipped vehicle can be driven in a slower, safer and more controlled manner, greatly reducing the likelihood of vehicle damage and environmental impact.

Features

Provides 100 percent traction on demand without affecting on-road drivability or driveline wear

Easy, convenient operation allows the user to concentrate on the terrain without leaving the comfort and safety of the driver's seat

Two-piece design is ultra-durable and extremely strong; minimal moving parts ensure maximum reliability

Patented timed' locking mechanism offers high strength and ultra-fast unlocking

Steel reinforced, elastomer bonded annular seal designed to handle the most extreme climatic temperatures on Earth

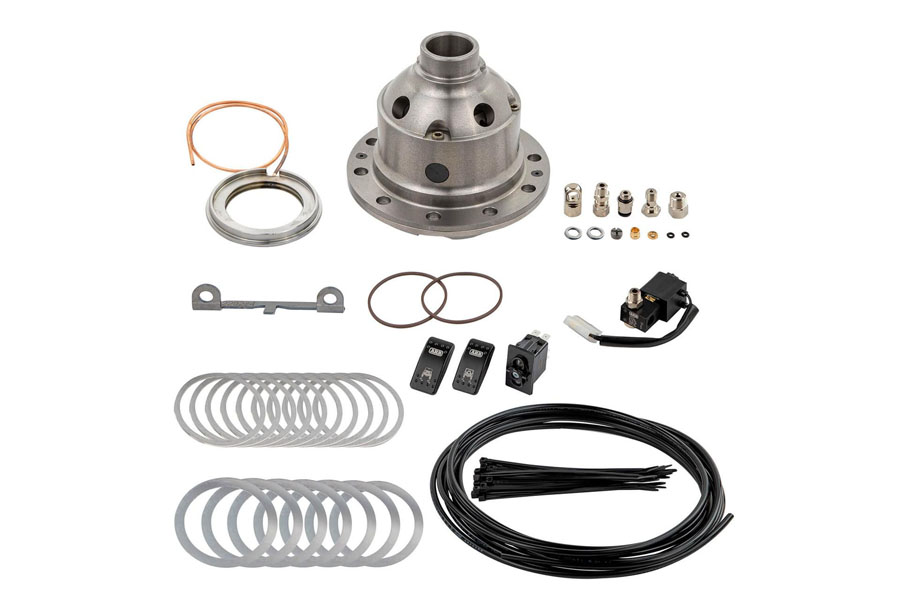

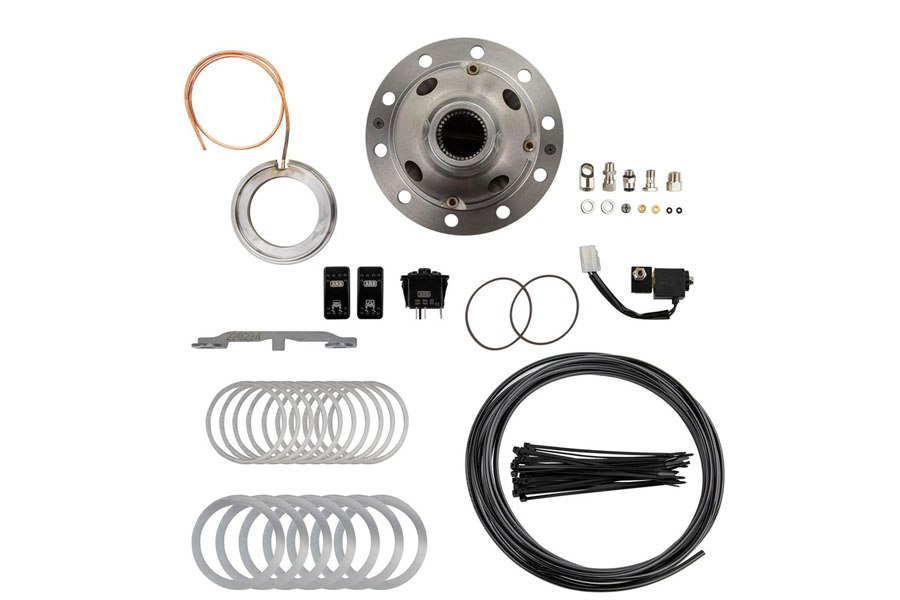

Kit includes: Air Locker differential, activation switch, solenoid valve, air line and bulkhead fitting

Air compressor required for operation (sold separately)

Fitment Info:

Axle: Rubicon Dana M210; Position: Front; Spline: 35; Ratio: All

Axle: Rubicon Dana M220; Position: Rear; Spline: 35; Ratio: All

Axle: Dana M210; Position: Front; Spline: 35; Ratio: All

Axle: Dana M220; Position: Rear; Spline: 35; Ratio: All

Note:

Performance application models do not suit any original equipment axle shafts. Custom shafts to suit your specific axle assembly must be obtained.

Requires upgrade to aftermarket 35 spline axle shafts (sold separately) for JL Wrangler applications.

RD246 cannot be used in rear only Jeep JL applications. It can be used in front only or front and rear together, however both of these will require aftermarket electronics (not supplied by ARB) to modify the ECU to clear the error codes.
