Switch-Pros 8 Switch Panel System
Switch-Pros 8 Switch Panel System
Switch-Pros 8 Switch Panel System
Switch-Pros 8 Switch Panel System
Switch-Pros 8 Switch Panel System
Switch-Pros 8 Switch Panel System
Switch-Pros 8 Switch Panel System
Switch-Pros 8 Switch Panel System
Switch-Pros 8 Switch Panel System
Switch-Pros 8 Switch Panel System

Switch-Pros 8 Switch Panel System

This item is no longer available.
Universal part
ANY QUESTIONS?

Product Resources

Features & Product Details

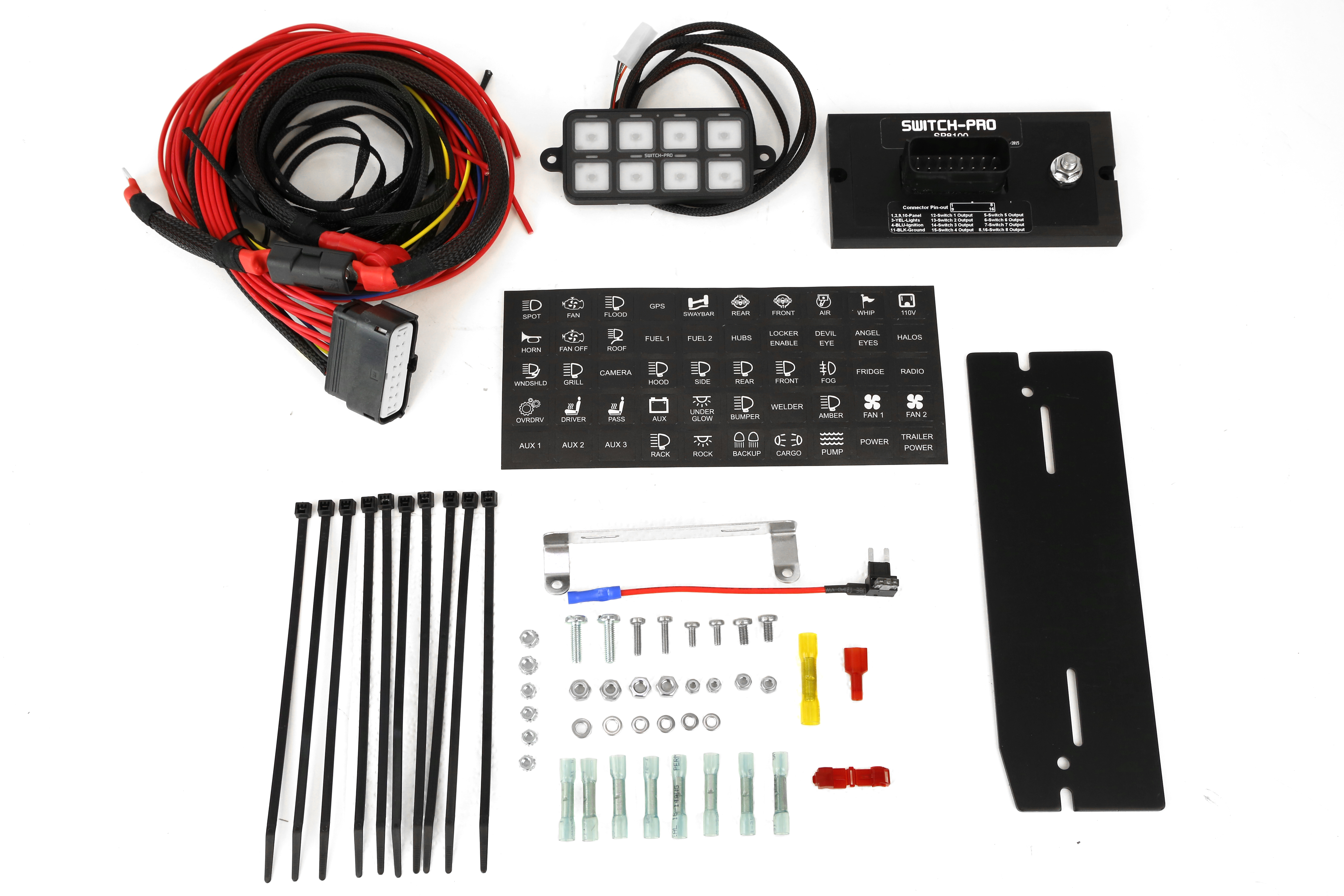

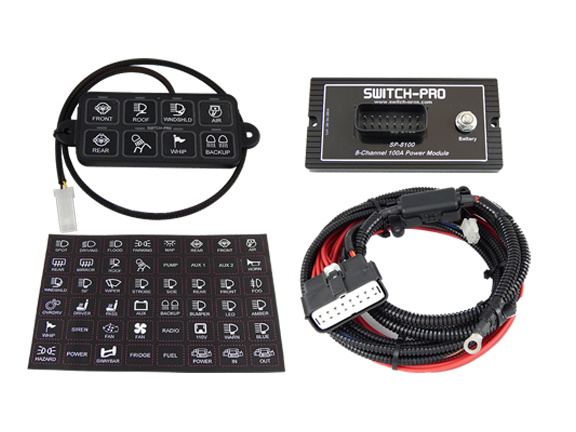

If you’re looking for a programmable switch panel that can power up all of your accessories, then check out Switch Pros 8 Switch Panel Power System.

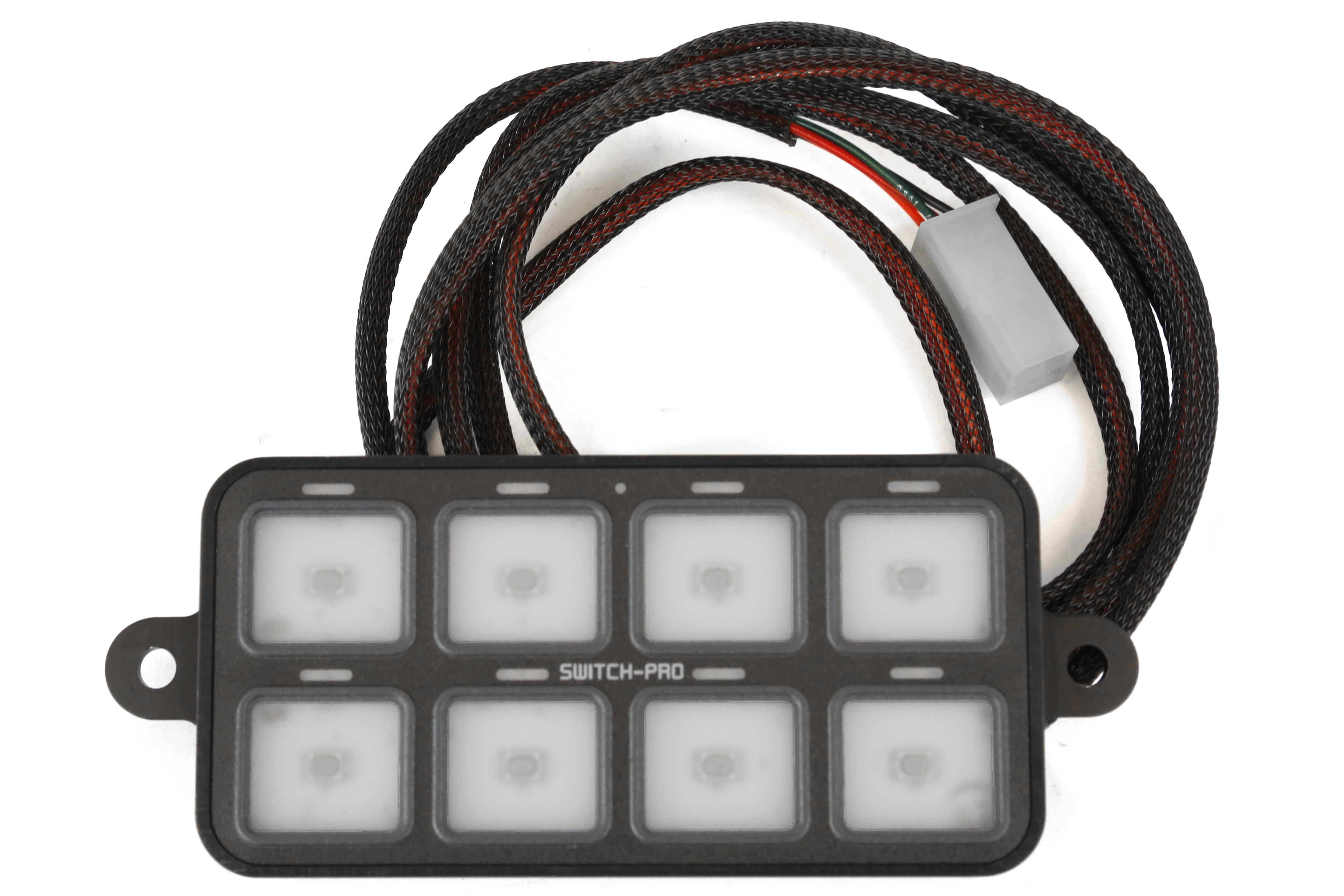

This Switch Panel features illuminated switches with user-adjustable brightness. You can even program these switches though your smart phone, and comes with a built in blue tooth interface. It has a 100A solid state power module, and has an automatic shutdown for overcurrent, and low voltage.

The programming options are On/Off of Momentary, Ignition or Battery, Flash and Strobe functions.  There is also a low voltage disconnect, and switch memory.The switch panel has been crafted out of anodized aluminum, and contains orange LED switch indicators. It has green backlighting, and a 4’ interface cable.

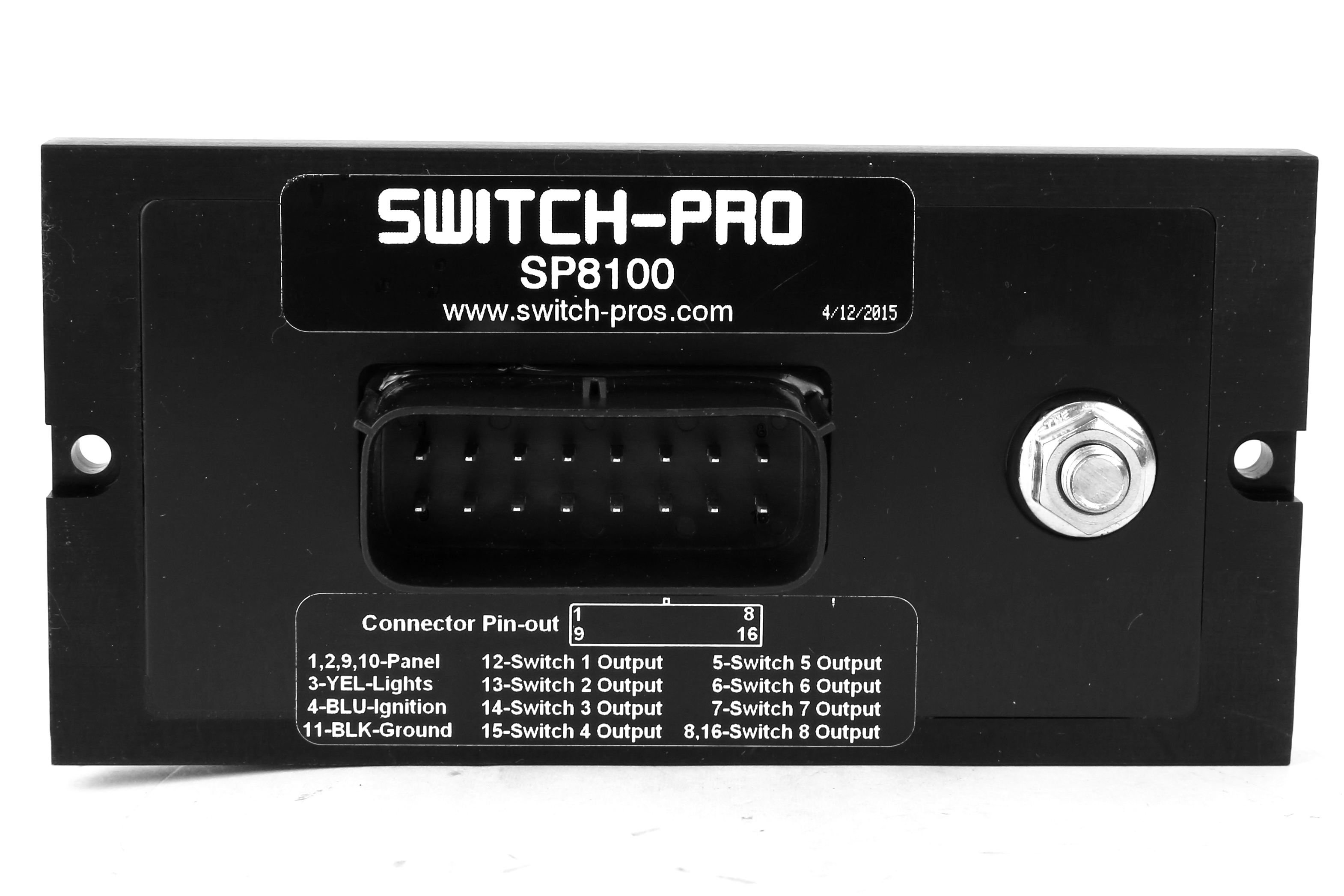

For the Power Module, it features:
•    6” L x 3”W x 5”H (excluding connectors)
•    Enclosure is fabricated out of anodized aluminum
•    8 outputs, 7 rated at 18A, 1 rated @ 30A
•    100A maximum rating 120 degrees C to -40 degrees C

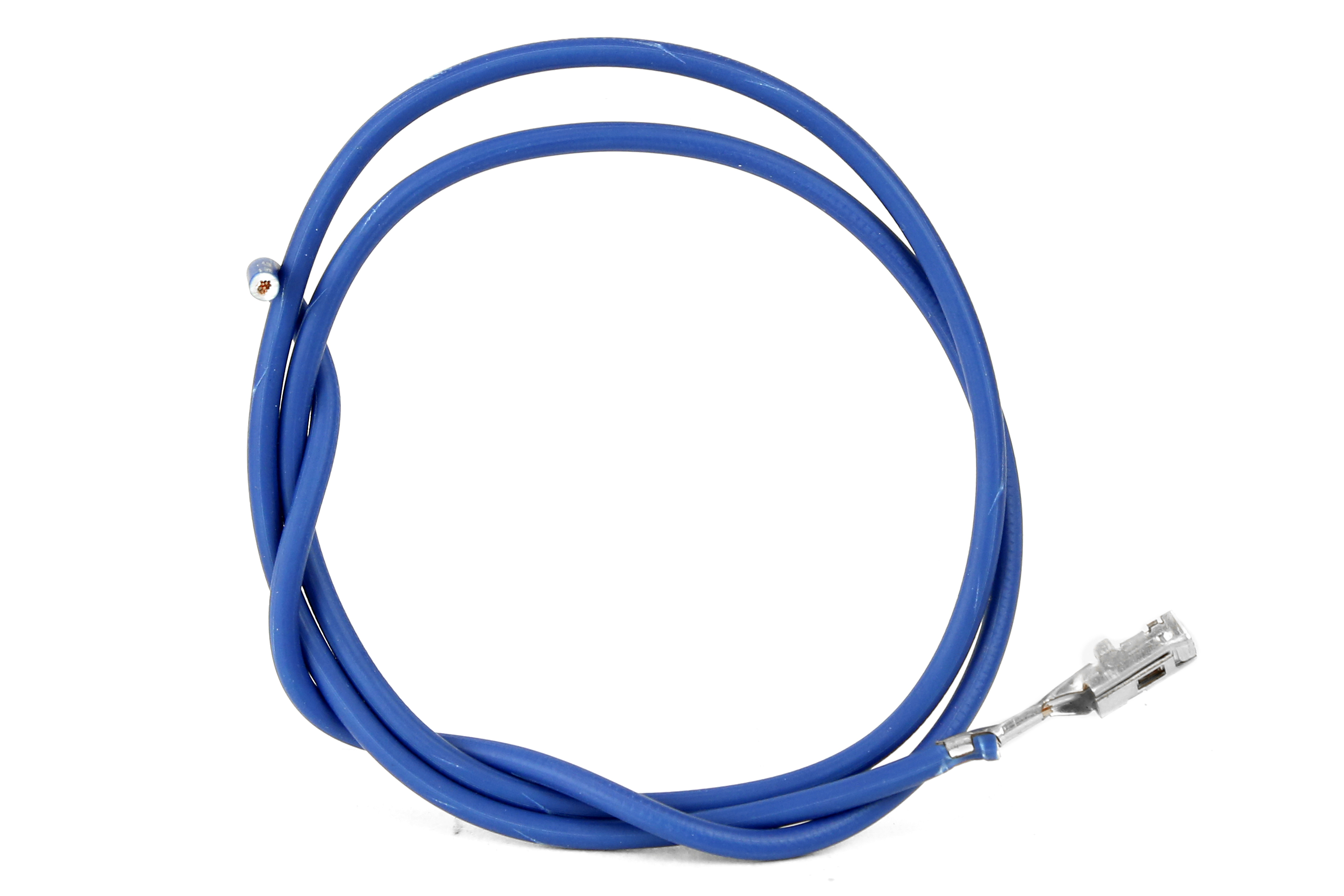

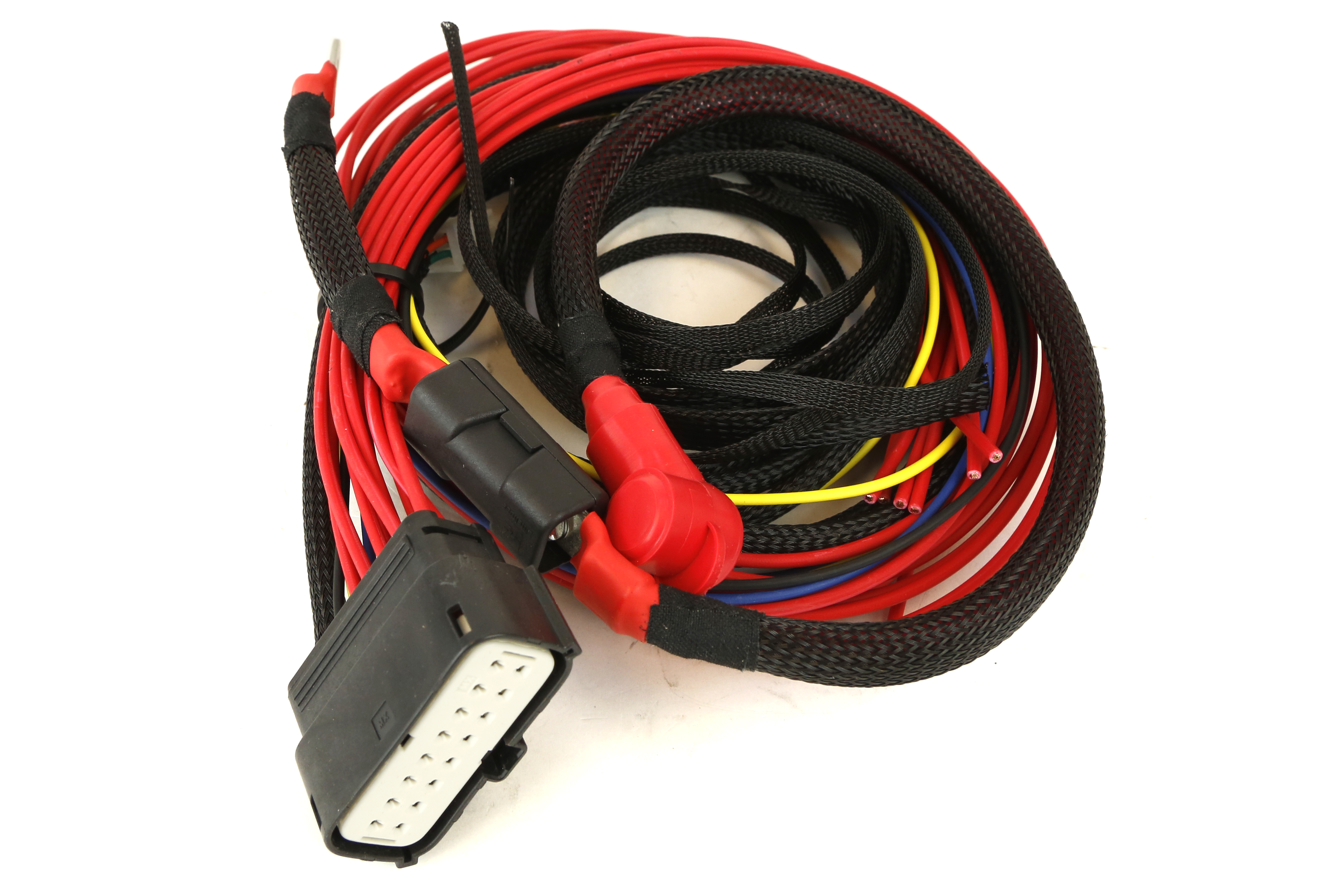

•    16-pin, sealed automotive connector, wire harness w/100A fused power cable, light and ignition input wires, and eight 3’ long output wires

The switches can be programmed to be On/Off or Momentary, ignition or battery powered, flash, strobe, low voltage disconnect, and memorize previous settings. There is also a programming function to adjust the brightness of the backlighting and indicator LEDs.

Specifications

Brand: Switch-Pros
Capacity: 8 Switches

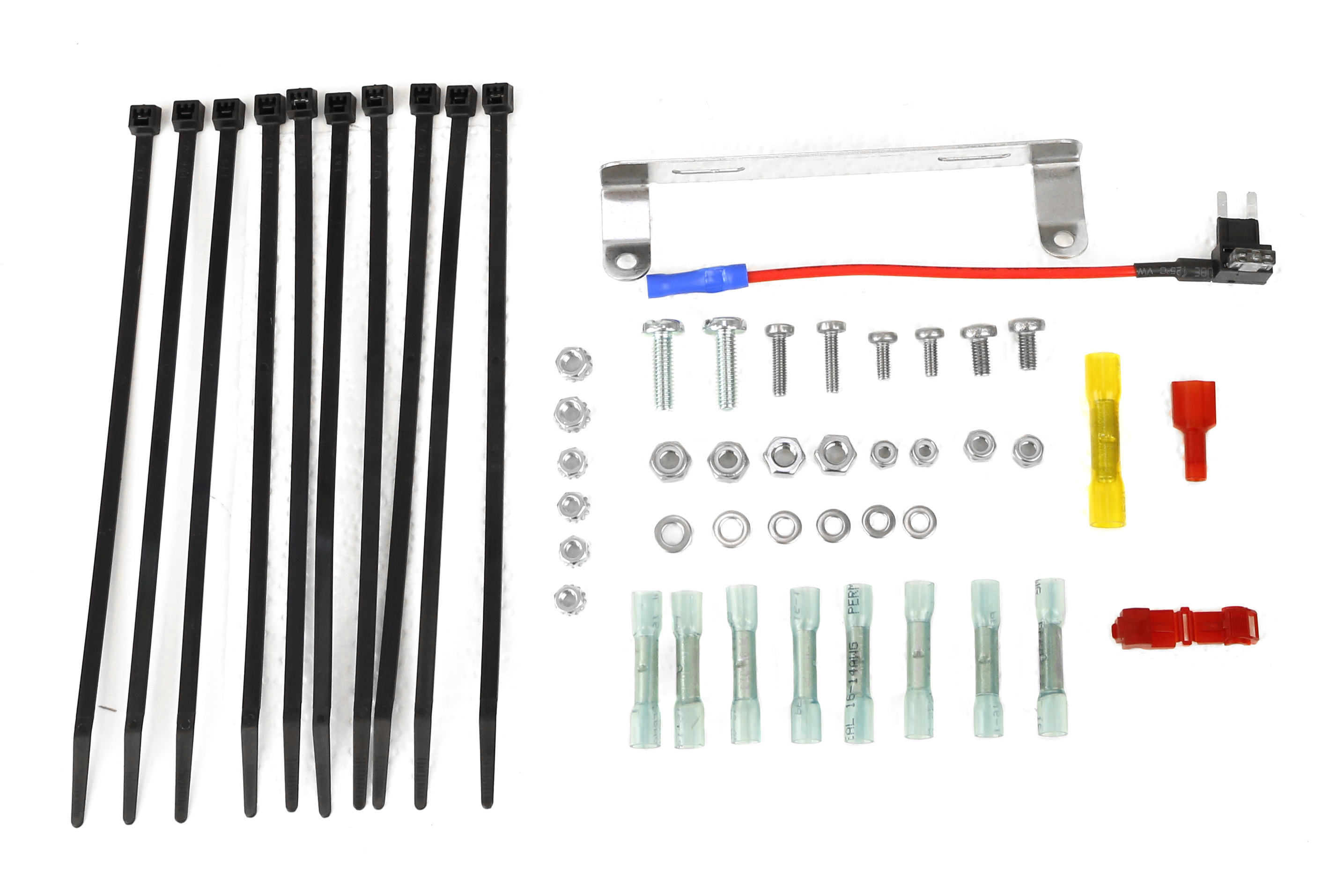

Hardware Included: Yes
Includes Gauges: No
Includes Genesis Adapter: Yes
Includes Switches: Yes
Switch Illumination: Non LED
Mfgr. Warranty: 2 Year Limited
Condition: New Product
Return Policy:
Standard

PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

REVIEWS & CUSTOMER MEDIA

3 Reviews
4.3 out of 5 Stars
5 Stars
(1)
4 Stars
(2)
3 Stars
(0)
2 Stars
(0)
1 Stars
(0)
Customer Photos and Videos
No user media. You can upload a photo or video of your install by posting a review.
Simply Amazing Product 8 years ago
4out of 5stars

I am utterly impressed with Switch Pro’s product! I needed to configure switches/relays for my 2015 JKU but there is even less room to stash a fuse block/relay block than on my 2007. After considering the options, I bought this product and I cannot describe how awesome it is. The product quality is incredible just opening the box and the directions are some of the best I have seen for an aftermarket product including color pictures that make the installation a breeze. A novice with little to no wiring/mechanical experience would be able to follow the instructions. The great thought that went into cleanly mounting it in the tight space behind the battery really keeps the unit looking like a clean install and it doesn’t obstruct other parts of the Jeep that might require maintenance from time to time. It is a completely sealed unit so water intrusion has not been an issue and I imagine it will survive severely deep water after the OEM electronics fail. The switch unit looks really sharp mounted above the rear view mirror and I have a friend that mounted theirs on the dash above the stereo; also a really clean look. As for the functions of the unit, the buttons feel really crisp and offer a tactile feel that lets you know that you have pushed a button. The backlighting is really good and shows well through the stickers that fit absolutely perfectly on the switches. I initially had concerns about putting a sticker on a button (thought it would look cheesy) but that was short lived… The stickers are thick, WAY STICKY, and a perfect fit as mentioned before. After wiring up the system, programming the unit is way easy! I really like that the unit can be programmed for constant power or switched power. Another feature that really makes me happy is that the switches can be programmed for steady on or strobe. I really liked this when we were doing nighttime snow recoveries, winching drivers out of ditches, and had tow straps and winch line out across a street. By strobing the rock lights and windshield lights it lets passersby know that something is going on and they hopefully will not try to drive through the winch line. Anyway, when the switch is selected, the amber light above or below the switch (depending on mounting) lets you know what is on. I cannot speak highly enough of the customer service! During my install, I had run into a problem where the unit was intermittent, a problem I induced by adding additional wire to route the wires to match a wire bundle I had run for other things. The owners of the company were BEYOND supportive and were VERY concerned about the product possibly having a defect; so much so that they were going to send me a unit to replace mine so that I could have my rig up in time for an event. I asked them for time to let me verify my wiring was good. Once I changed my wiring path and shortened my length to an appropriate length for the data bus, the thing has worked PERFECTLY!! The story doesn’t end there though. After the event, the owners called me back to see if I had fixed the problem and were wanting to make sure that everything was functioning as advertised. Best customer service I have ever had and I would (and have) recommended this to many of the Jeepers I know! While the cost may seem high, it was only mildly more expensive than buying a quality fuse block, relay block, wire, Carling switches, and a mount. It is so worth every penny I have paid for it!

Was this review helpful?
Incredible Product! 8 years ago
5out of 5stars

I ended up buying this unit because the new JKs have absolutely no room for relay blocks and fuse blocks, even less than my '07. This unit mounts right above the battery (or anywhere else, but conveniently there) and is easy to wire in. The instructions are so easy to follow that any skill level could wire it in and it comes with pictures so it is hard to mess up. Once the main wiring is done, simply select which red wire number you want for each component based on which switch you want to activate it. It comes with thorough details related to that. When that is done, programming is super simple and it even has Bluetooth functionality as well, which I haven't yet used. Very importantly, if you run into issues, the customer service at Switch Pros is incredible!!! I ran into a data bus issue because of how I had wired it (custom mod through a Duetch connector in the firewall). They were ready to ship me a replacement unit that afternoon but I had them wait until I troubleshot the gripe. A week later they called me back to ensure that I was good or whether they still needed to ship me another unit. I would MOST DEFINITELY buy this product again and strongly recommend it to anyone adding switches. One final note, as a guy who likes Carling switches, I was concerned about the feel of the switch. The switches provide enough feedback to let you know that they have been pushed without looking.

Was this review helpful?
Fits anywhere and easy to install 9 years ago
4out of 5stars
Piefra
The installation instructions are straight forward and easy to follow. The buttons on the switch panel have a nice tactile feel to them and an audible noise. Programming/configuration of the buttons is also extremely simple. The price seems a bit high at first, but you can tell that they have spent a lot of time making it easy and simple to install and use. 10/10 would buy again.

Was this review helpful?
