Stinger Offroad Weatherproof Powersports Media Player, Radio Only

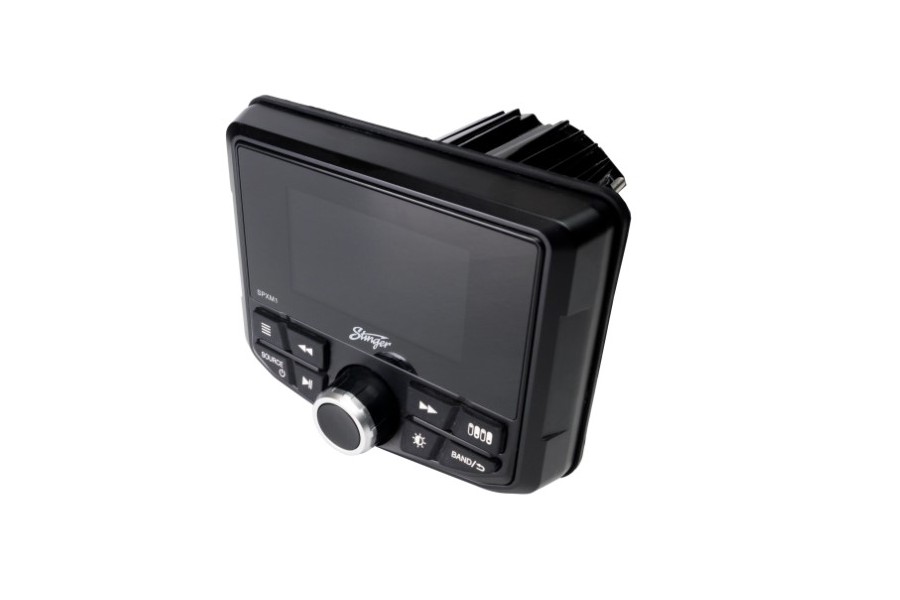

SPXM1 Digital Media Receiver is designed to be at home in either marine or Powersports applications.

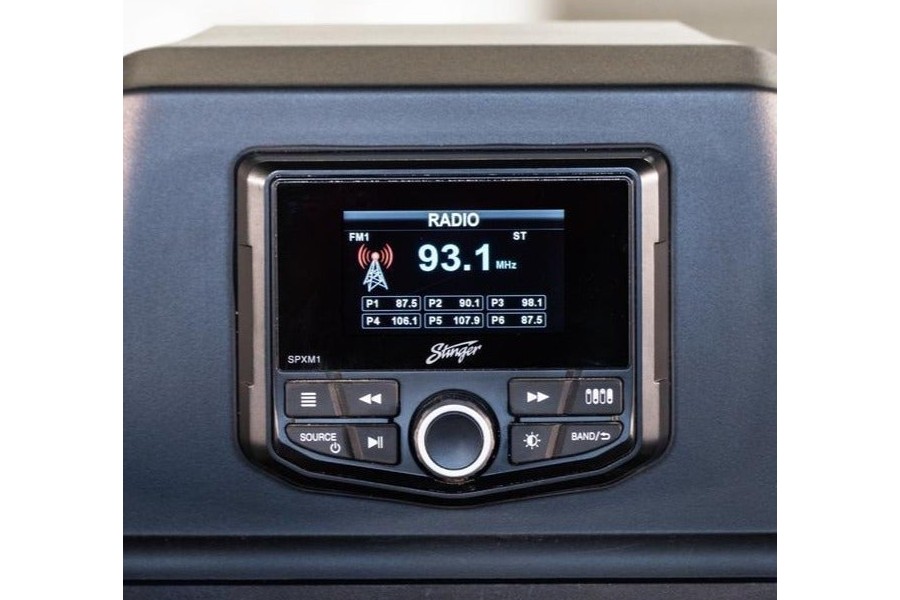

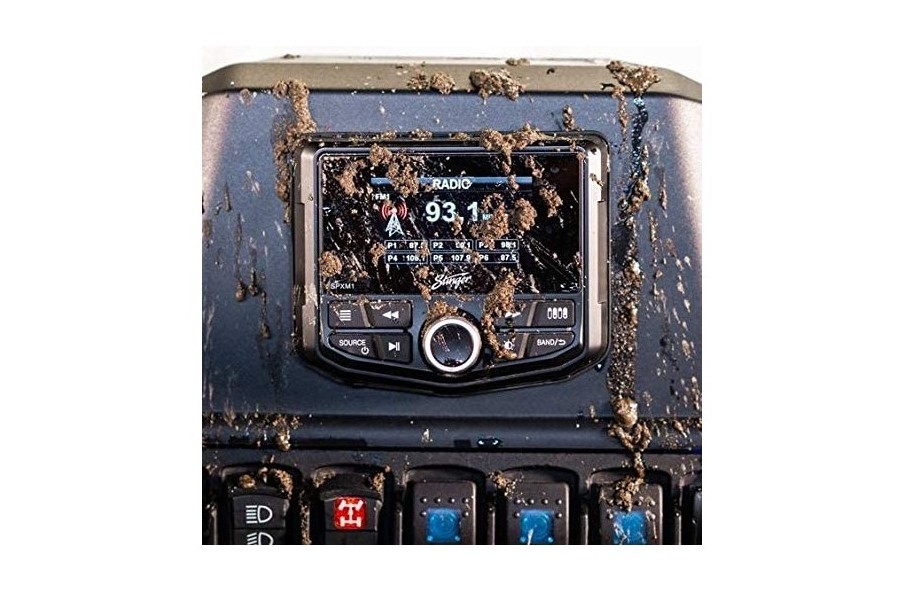

SPXM1 features a 2.7" full-color display for full sun-capable viewing, since, as you know, you will be outside! SPXM1’s display is big enough for easy reading while you're bouncing around, and for added viewing ease, it features LED-backlit buttons for low light situations. We know quality is important, so SPXM1 is built to last with an IPX6-rated optical bonded front panel that can withstand those harsh outside elements with great reliability.

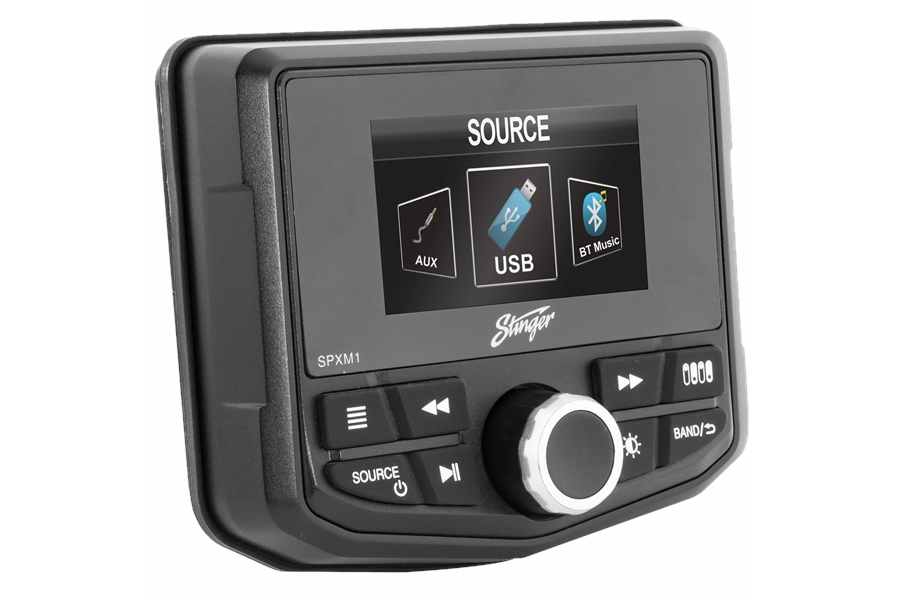

Now for the fun stuff-- the built-in high power 45x4 amplifier can get your speakers screaming out your favorite tunes. If that’s not enough, SPXM1 can be expanded and controlled with the onboard front and selectable rear/subwoofer RCA outputs, and you can tweak this sound to your liking using the onboard EQ (with 8 presets) and subwoofer-level control. Those tunes we mentioned; can come from one of many sources, including a Global AM/FM/Weather Tuner, via USB input for MP3/WMA/WAV files, streamed content via Bluetooth, or a wired AUX RCA input. Want to keep tabs on what’s going on around you? By utilizing the onboard video input and adding a camera, you can watch that wakeboarder, fisherman, or ATV following you.



SPXM1 is your new Command Center, capable of controlling up to 4 devices in conjunction with the optional SwitchHUB (SPXSH440) 4 output, 100A total, solid-state switcher. For quick and easy access to those controls, SPXM1 uses a dedicated switch panel button so the onboard display shows the current status of all 4 devices at once. SPXM1 becomes an ALL-IN-ONE Digital Media and Control Center, keeping things simple, and that console clutter-free.



FEATURES:

AUDIO:

High power 4 x 45W peak built-in amplifier

Global AM/FM/Weather Tuner (tunes odd and even-numbered stations throughout the world)

Plays MP3/WMA/WAV files

USB input

Rear RCA AUX-input

4-Channel preamp outputs (2-volt front and selectable rear/sub)

Easy subwoofer control

7-band graphic equalizer with (8) Music genre presets (to customize your sound)

Selectable high-pass and low-pass crossovers

Adjustable input gain for each source (so when you change sources the volume is the same)



MARINE:

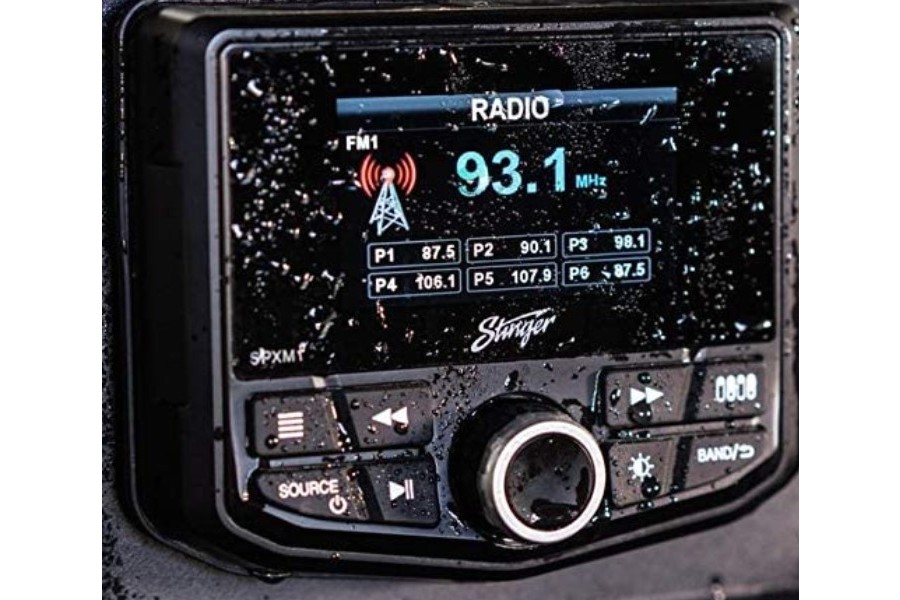

Water-resistant front panel (IPX-6 rating) backlit LED buttons Can resist high-pressure, heavy sprays of water

Conformal coated circuit board

Two-piece mounting system to secure the panel to the mounting surface

Easy access voltage gauge with low voltage alert



GENERAL:

SwitchHUB ready, 4 Channel external accessory control with optional SPXSH440 (sold separately)

2.7" Color TFT Optical Bonded Display

Camera input with external trigger

Built-in Bluetooth for A2DP music streaming

Memory Saver - EEPROM non-volatile memory (retains your presets and settings in case of a power outage, zero current draw in off-mode)

Part Number: SPXM1

​

WHAT'S IN THE BOX:

SPXM1 Marine Digital Media Receiver

Trim-ring

Mounting bracket

Wiring harness

Backstrap

Power Harness

(4) 3.5 x 24 Screws

(4) Machine screws

(4) Hex-nuts

Installation Instructions

Warranty Card
