ZOLEO Universal Mount Kit
ZOLEO Universal Mount Kit
ZOLEO Universal Mount Kit
ZOLEO Universal Mount Kit
ZOLEO Universal Mount Kit

ZOLEO Universal Mount Kit

This item is no longer available.
Universal part
ANY QUESTIONS?

Product Resources

Features & Product Details

**While Supplies Last**   **All Sales are Final, No Returns**

*Device Not Included

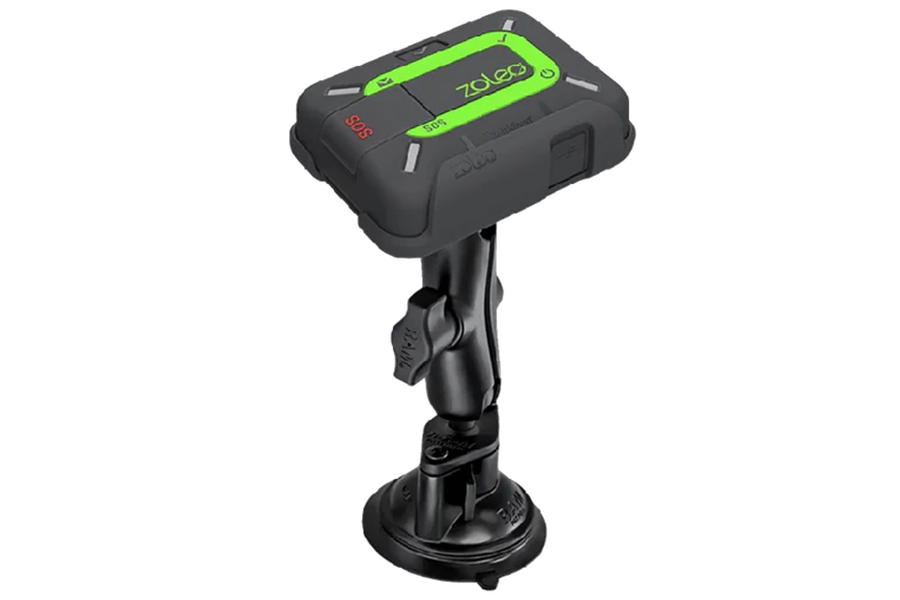

Ideal for securing the ZOLEO satellite communicator on the windshield of a vehicle or vessel, the ZOLEO Universal Mount Kit secures the ZOLEO device in place and keeps it charged. This kit includes a USB car charger, RAM Twist-Lock Suction Cup Mount for a strong hold on glass and non-porous plastic surfaces, and an adjustable arm. It also includes the complete ZOLEO Cradle Kit.

Includes:

  • USB car charger, for use with any 12-24 V power source
  • A RAM® Twist-Lock™ Suction Cup Mount with 1/4"-20 UNC threaded camera adapter
  • Double socket arm (adjustable to the desired look-angle)
  • Micro-USB cable, 1.2 m (3.9 ft)
  • ZOLEO Cradle Kit
  • Quick Start Guide
  •

    Specifications

    RAM Mount Components

    RAM Twist-Lock Suction Cup Base with Ball

  • Suction Cup Dimension: 8.38 cm (3.3 in) in diameter
  • Weight: 118 g (4.16 oz)
  • Ball: B Size 2.54 cm (1 in) rubber ball
  •

    RAM Double Socket Arm

  • Dimensions: 9.47 cm (3.73 in)
  • Weight: 140.6 g (4.96 oz)
  •

    RAM Ball Adapter with ¼"-20 Threaded Stud for Action Cameras

  • Dimension: 63.5 mm (2.5 in) in diameter
  • Weight: 72.57 g (2.56 oz)
  • Stud: ¼”-20 threaded steel stud
  • Ball: B Size 2.54 cm (1 in) rubber ball
  •

    DC Car Charger

  • Single USB port for use with the included USB to Micro-USB cable
  • Input Voltage: 12-24 V
  • Output Voltage: 5 V
  • Max Current (A): 2.5 A
  •

    USB Cable

  • 1.2 m (3.9 ft) (USB to Micro-USB)
  •

    Cradle Kit Components (Included)

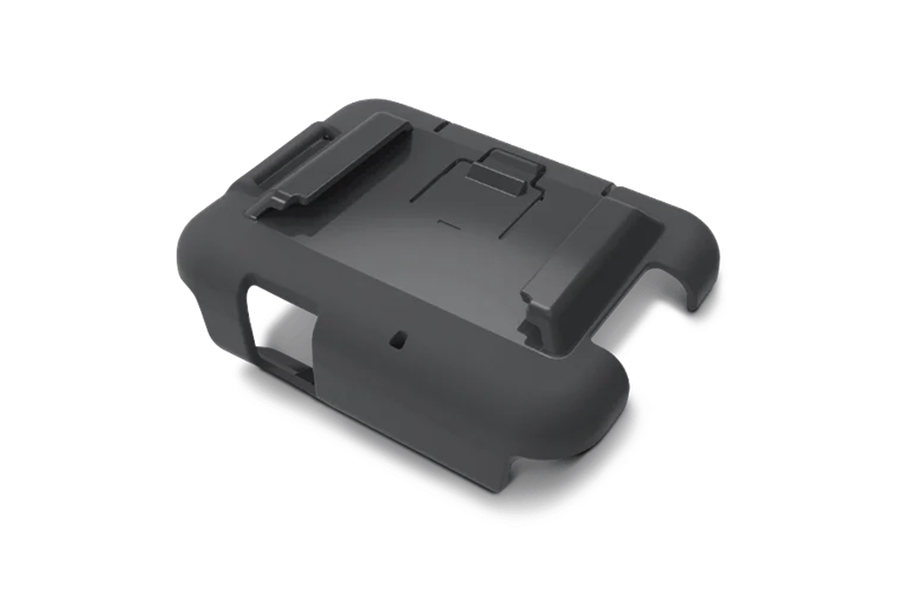

    Main Cradle

    Secures and protects your ZOLEO device and includes a locking tab to enable easy installation or removal of all included clips/inserts.

  • Dimension: 74.5 x 95.0 x 27.8 mm (2.93 x 3.74 x 1.09 in)
  • Weight: 3.0 g (0.10 oz)
  • Colour: Grey
  •

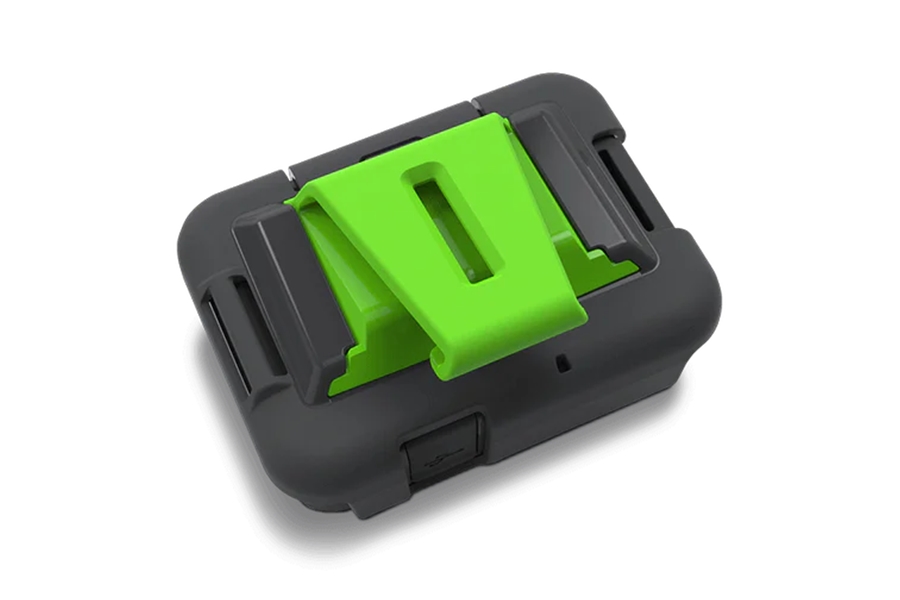

    Belt Clip Insert

    Secures your ZOLEO device to be worn on a belt.

  • Weight: 2.0 g (0.07 oz)
  • Colour: Green
  •

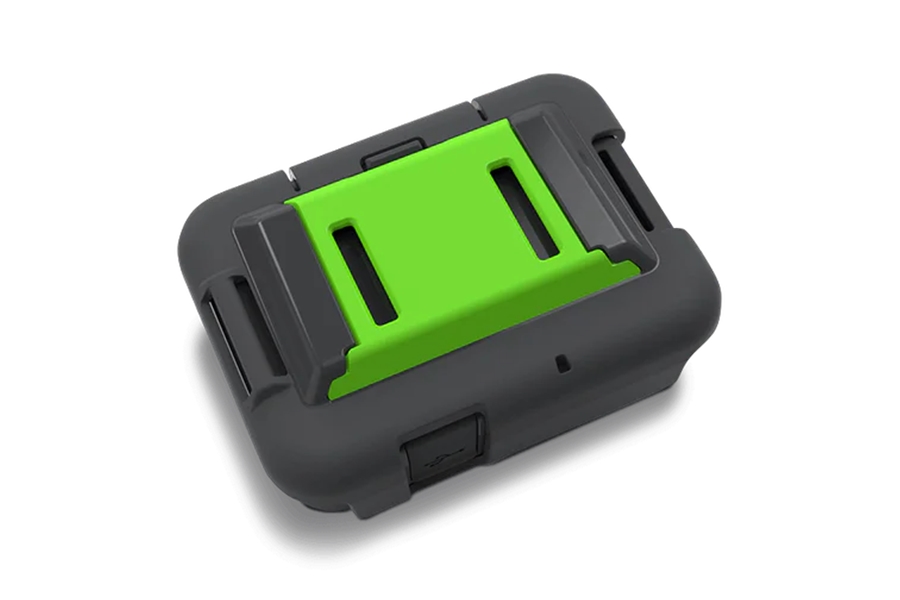

    Strap Mount Insert

    Secures your ZOLEO device flat against a backpack or other installations using a strap or tether. Simply slip the strap through the insert.

  • Fits straps up to: 25 mm (1 in)
  • Weight: 1.0 g (0.03 oz)
  • Colour: Green
  •

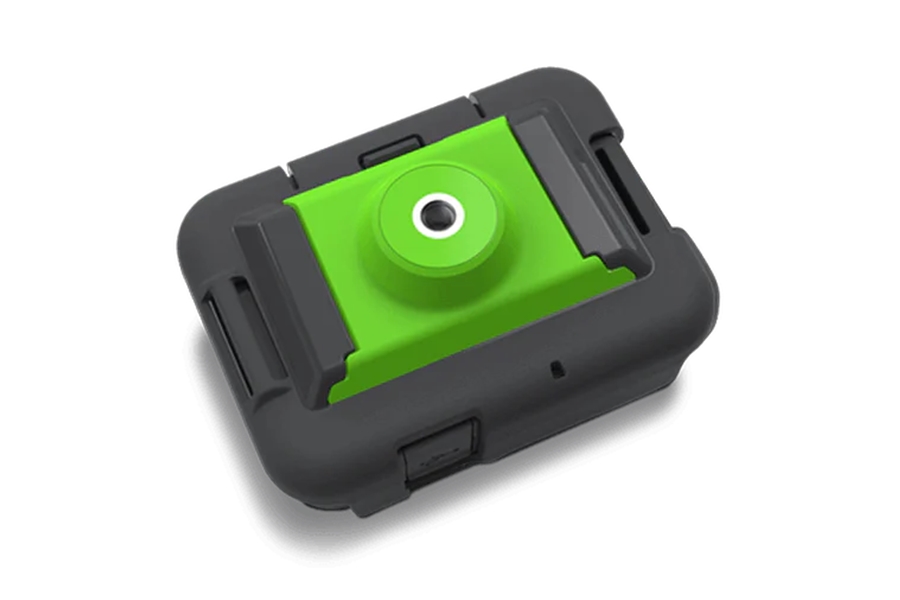

    Camera Mount Insert

    Secures your ZOLEO device to any universal camera mount. Ideal for use with other RAM mounts and other accessories with a camera mount.

  • Weight: 1.5 g (0.05 oz)
  • Thread Type: ¼"-20 UNC
  • Colour: Green
  • Specifications

    Qty: 1 Kit
    Type: Mount
    Mfgr. Warranty: 2 Year Warranty
    Condition: New Product
    Return Policy:
    None
