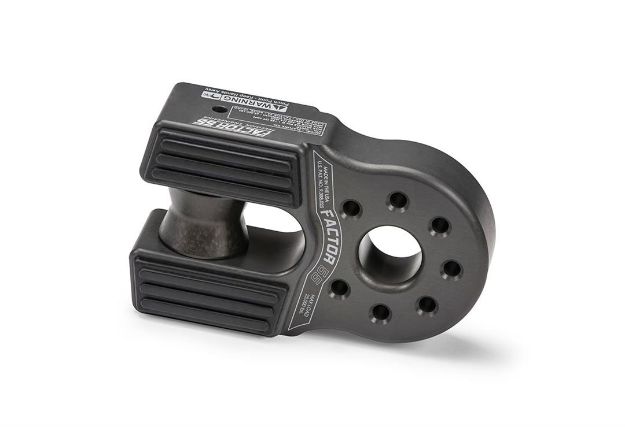

Factor 55 Flatlink XXL, Gray

Factor 55 Flatlink XXL, Gray

Factor 55 Flatlink XXL, Gray
Read 1 Reviews | Q&A
Part # 00090-06We price match! Call 866-601-5340!
We Price Match
$190.62
msrp: $286.25
190 entries190 entries - 2025 Northridge4x4 Jeep Giveaway

Product will ship from manufacturer, average time to ship: 2 business days
Qualifies for
free shipping!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
Factor 55Authorized
Dealer

Product Resources

Features & Product Details

The world’s first foldable winch shackle mount with self-centering load spool.

Compatible with wire rope diameters of up to 3/4″ and synthetic rope tube thimbles up to 5/8″ in diameter. Fits shackle pin diameters of 1 1/8″. 7/8″ diameter titanium double shear pin. Minimum breaking strength of 65,000 lbs.

Features

  • Replace conventional winch hooks with a safer more secure shackle/D-ring
  • Safer recoveries through the practice of Closed System Winching
  • Lightweight – Precision CNC machined 6000 series Military Grade Aluminum
  • No splicing required – double shear pin design
  • Designed for both steel cable and synthetic winch rope eyes
  • Equipped with a shear pin load centering spool for wire rope applications
  • Foldable and stows rattle free against fairleads
  • Integrated EPDM rubber pads for fairlead protection
  • Fits common 7/8 and 1” screw pin shackle sizes (1.0 and 1.125 pin diameters)
  • For synthetic rope diameters up to 5/8 and wire rope up to 1”
  • Available in the Military Specification Hard Anodizing (Mil-A-8625 F Type III) Gray
  • 7/8” diameter double shear pin
  • Max Rated Load: 26,000 pounds
  • Ultimate Strength: 68,000 pounds
  • Weight: 51oz

    • Frequently Asked Questions (FAQs)

    Q: What are the advantages of a closed loop winch system?

    A: Closed loop winching systems offer much greater safety than open hooks. The FlatLink XXL creatures a secure connection to your shackles, greatly decreasing the chance of accidental disengagement.

    Q: Is it easy to install?

    A: Yes. The FlatLink XXL installs quickly to your winch line with the included 7/8" double shear pin and internal snap ring.

    Specifications

    Brand: Factor 55
    Capacity: 26,000lbs
    Color: Grey
    Finish: Anodized
    Material: Aluminum
    Type: Shackle Mount
    Mfgr. Warranty: 1 Year Warranty
    Condition: New Product
    Return Policy:
    Standard
