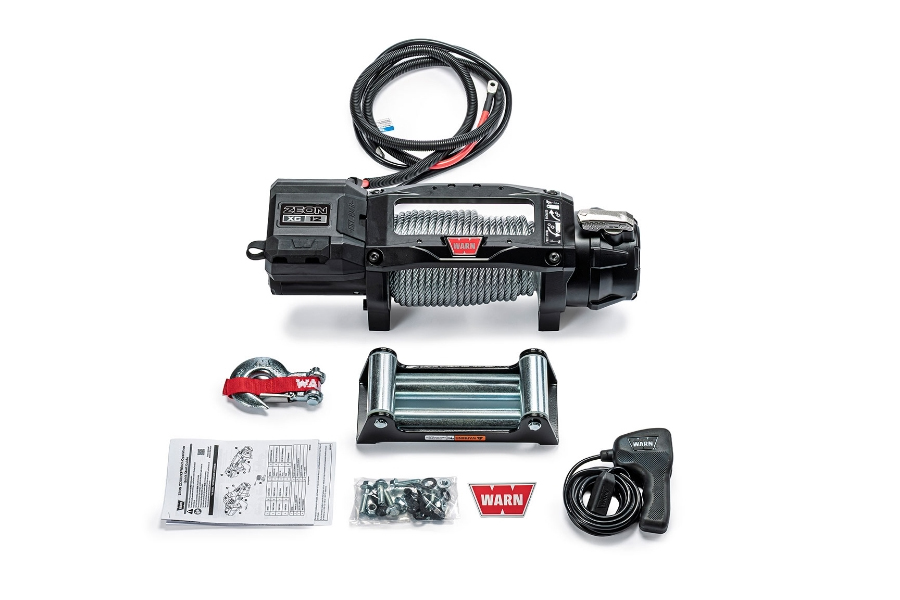

Warn Zeon XC 10 Winch
Warn Zeon XC 10 Winch

Warn Zeon XC 10 Winch

Warn Zeon XC 10 Winch
Warn Zeon XC 10 Winch Warn Zeon XC 10 Winch
★★★★★
★★★★★
()
Write a Review | Q&A
Part # 110410We price match! Call 866-601-5340!
We Price Match
$1,529.99
msrp: $1,799.98

Only 3 left!
Qualifies for
free shipping!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
WarnAuthorized
Dealer

Product Resources

Features & Product Details

10,000 lbs. single-line pulling capacity. Equipped with 80’ of 3/8” steel rope, roller fairlead, and ruggedized corded remote.

The compact, low-profile ZEON XC winch delivers unmatched performance with best-in-class line speed and capacity. Engineered, tested, and assembled at our Clackamas, Oregon facility, ZEON XC is a premium, ultra-reliable recovery tool that’s backed by the industry’s leading warranty.

  • All the performance of the ZEON XD winches but in a more compact size for mounting in tighter spaces
  • High-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min—the fastest in its class
  • Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68 submersion and IP69K high pressure spray rated
  • Corrosion resistant black fasteners meet the highest OEM-grade specifications
  • All-new low-profile control box with WARN exclusive Albright contactor and bus bars for ultimate control, reliability and efficiency
  • Remote socket can be relocated up to 9” away from control pack without disassembly
  • Control pack can be relocated off of the winch using one of WARN’s control pack relocation kit (PN 111872: ZEON XC 31” relocation kit; PN 111991: ZEON XC 78” relocation kit)
  • Motor can be rotated up to 90° forward; control pack moves with motor; transmission can be clocked up to five different positions
  • The ZEON XC fairleads can be utilized for both feet down and feet forward installations — no separate offset fairlead is needed
  • Large diameter aluminum-alloy drum reduces rope wear and helps to dissipate brake heat. The patented rope anchor system is the strongest on the market, and allows for easy rope installation
  • Automatic load-holding cone brake offers excellent control and holding strength
  • Exceptionally durable corded remote with 12’ lead
  • Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network

    •

    Specs:

  • Rated Line Pull (Single Line) - 10,000lbs (4536 kg)
  • Motor - 12V DC, series wound
  • Electrical controls - Albright Contactor
  • Remote Control - Remote Switch, 12" (3.7m)
  • Geartrain - 3-stage planetary
  • Gear Ratio - 141:1
  • Clutch (freespooling) - Rotating Ring Gear
  • Brake - Automatic, six segment mechanical cone
  • Drum diameter/Length - 3.15”/9.0” (80mm/229mm)
  • Rope - 3/8" x 80' (9.52mm x24m) Steel rope
  • Fairlead - Steel Roller
  • Recommended Battery - 650 CCA minimum for winching
  • Battery  leads - 2 gauge, 72” (1.83m)
  • Zeon Finish - Satin-black powder coat
  • Corrosion Resistance - 408 hour salt spray, OEM grade fasteners
  • Ingress Protection - IP68/IP69K rated waterproof
  • Warranty - Limited lifetime mechanical, 7 years electrical
  • Zeon Dimensions - length: 22.06" (560.3mm), height: 7.83" (198.8mm)
  • Mounting Bolt Pattern - 10" x 4.5" (254mm x 80mm)

    • Specifications

    Brand: Warn
    Line Material: Steel Cable
    Rated Capacity: 10,000lbs
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
    Return Policy:
    Standard

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
