BDS Suspension Recoil Rear Traction Bar Mounting Kit

These new RECOIL traction bars are built to the highest standards for ultimate performance on and off-road. The bars are fabricated from 2" OD x 3/16" wall steel tubing with a threaded bung welded toward the axle and a CNC machined end at the frame.

The axle mount uses the tried-and-true BDS large, forged flex end and jam nut RECOIL Traction Bars to take whatever abuse you throw at it. Utilizing a forged housing with a large 1-1/4" -12 threaded shank, a single-sided snap ring, and a 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction.

At the frame end, the bar uses a durometer-specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual-stage internal compression springs and UHMW polyurethane bearings. Both ends are greaseable and serviceable.

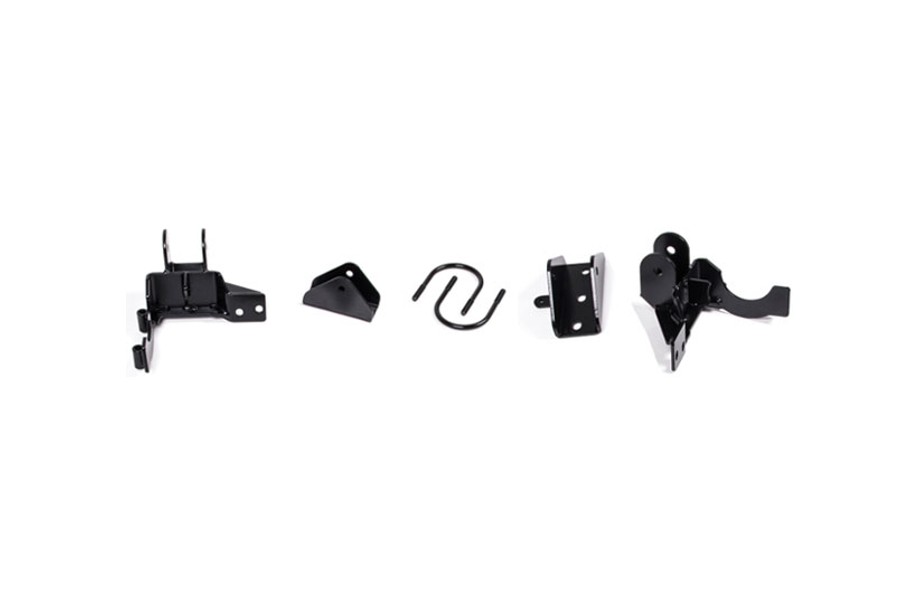

RECOIL Brackets | Vehicle Specific

Fully assembled, the RECOIL traction bars are 60" long and mount to the vehicle using fabricated 1/4" steel brackets. Bracket kits are vehicle specific. The frame brackets install by drilling mounting holes for the brackets, while the axle brackets install using a set of U-bolts. The traction bars and mounting brackets use a durable gloss black powder coat finish.

Vehicle Fitment:
