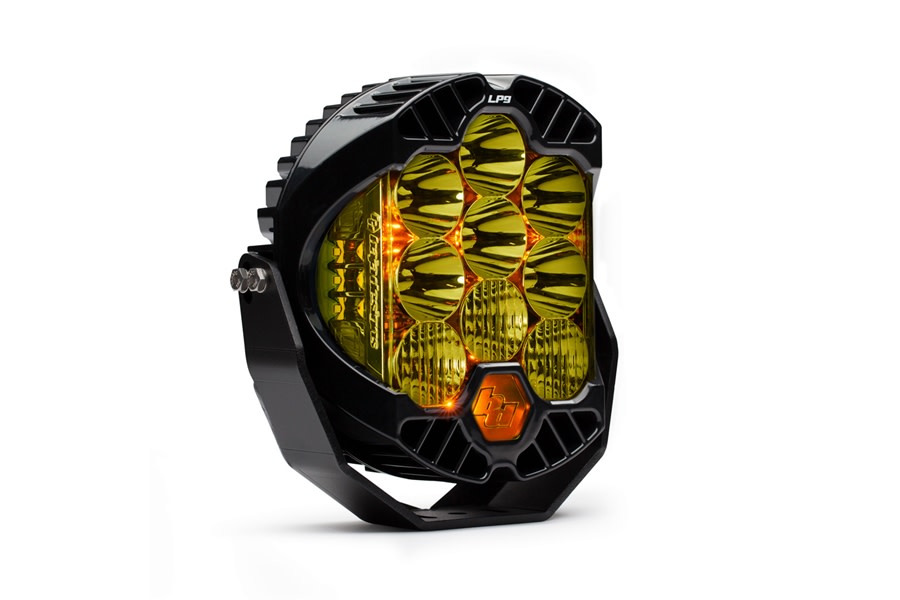

Baja Designs LP9 Pro LED Driving/Combo Light - Amber
Baja Designs LP9 Pro LED Driving/Combo Light - Amber

Baja Designs LP9 Pro LED Driving/Combo Light - Amber

Write a Review | Q&A
Part # 320013
$548.96
msrp: $609.95

Out of Stock. Average time to ship: 30 business days
Universal part
ANY QUESTIONS?

Product Resources

Features & Product Details

A design that was inspired by Baja Designs’ legendary 8" La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.

The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200° spread of usable light.

The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a daytime running light, low, and high power mode, the LP9 will fulfill all your lighting needs.

Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high-speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Specifications:

  • Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
  • Forward Projecting Wattage/Amps:  105W / 7.6A
  • IPT Lumens: 2,280 Utilizing 6 LEDs
  • IPT Wattage/Amps: 21W / 1.52A
  • Backlight Wattage/Amps: 2.8W / 0.2A
  • Dimensions: 8" Diameter/ 3.25" Depth
  • Weight: 6.5lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens:  Hardcoated Polycarbonate
  • Housing:  Hard Anodized Aluminum
  • Bezel: Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
  • Specifications

    Brand: Baja Designs
    Beam: Driving/Combo
    Bezel Color: Black
    Body Color: Black
    Bulb Type: LED
    Lens: Polycarbonate
    Light Color: Amber
    Mounting Bracket Included: Yes
    Qty: 1
    Wiring Included: No
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
    Return Policy:
    Standard
    WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
