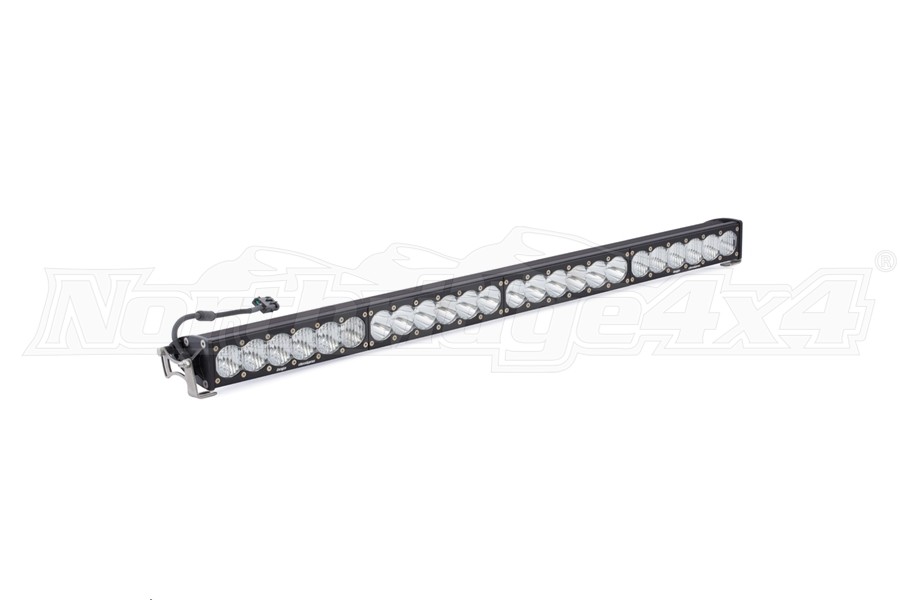

Baja Designs OnX6 40in Driving/Combo LED Light Bar

Baja Designs OnX6 40in Driving/Combo LED Light Bar

Baja Designs OnX6 40in Driving/Combo LED Light Bar
Write a Review | Q&A
Part # 454003We price match! Call 866-601-5340!
We Price Match
$1,441.95

Only 1 left!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

At an impressive 38,900 lumens, the brightest just got up to 69% brighter.  The OnX6+ LED light bar also integrates Baja Designs’ trademarked High Speed Spot reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6+ LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30-Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

Note: This light does NOT include a harness and the applicable harness to this light is 640119.

Features

  • uService – Replaceable Lenses and Optics
  • ClearView – All the Light, Right Where You Need It.
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  • Specifications:

  • Lumens: (High) 38,900  (Low) 32,440 Utilizing 24 Cree LEDs
  • Wattage/Amps: (High) 346W / 26.8A (Low) 290W / 22.4A
  • Dimensions: 40" x 4.29" x 2.69"
  • Weight: 15.05 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
  • Includes:

  • OnX6+ 40” LED Light Bar
  • Mounting Brackets
  • Hi-Low Dongle
  • Pattern:

    Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

    Specifications

    Brand: Baja Designs
    Beam: Driving
    Body Color: Black
    Bulb Type: LED
    Length: 40.00in
    Lens: Polycarbonate
    Light Color: White
    Mounting Bracket Included: Yes
    Qty: 1
    Wiring Included: No
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
