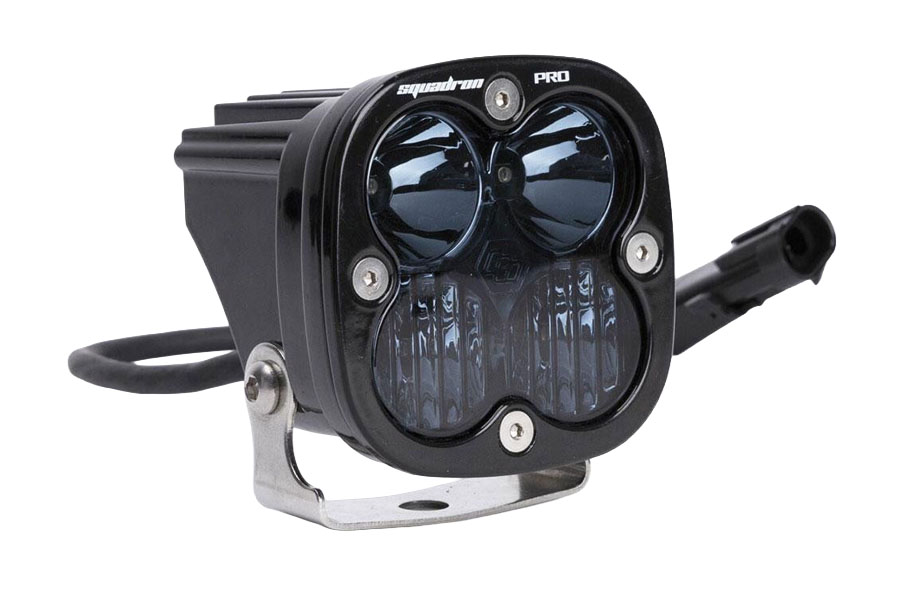

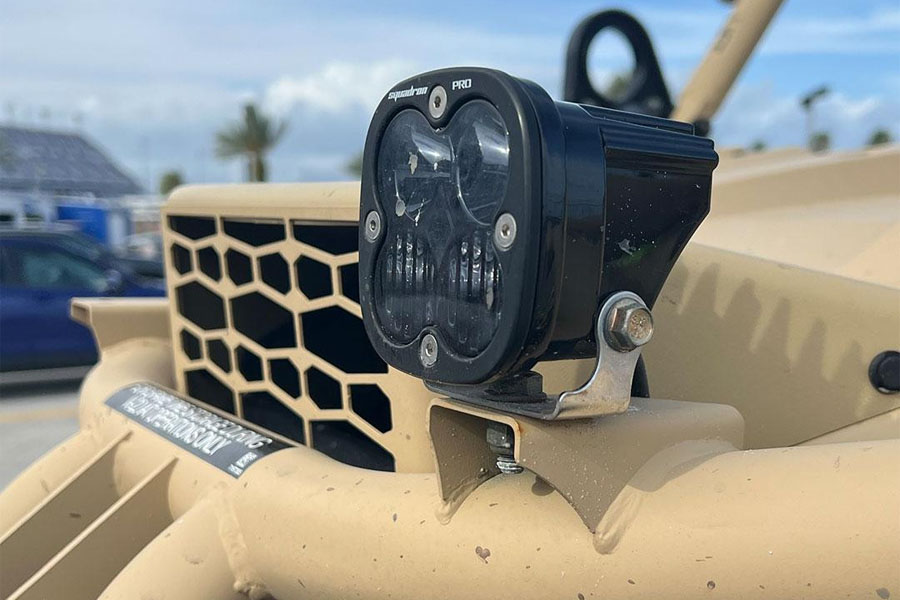

Baja Designs Squadron Pro Infrared LED Light Pod, Driving/Combo - 940nm
Baja Designs Squadron Pro Infrared LED Light Pod, Driving/Combo - 940nm

Baja Designs Squadron Pro Infrared LED Light Pod, Driving/Combo - 940nm

Write a Review | Q&A
Part # 497093We price match! Call 866-601-5340!
We Price Match
$324.95

In stock!
Universal part
2025 NORTHRIDGE4X4 JEEP® GIVEAWAY
Earn 2x Entries With This Purchase!!
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Features & Product Details

Although compact at 3 inch by 3 inch, don’t be fooled by its size, the Baja Designs Squadron Pro IR comes in 850nm or 940nm, and is more powerful than most larger lights on the market today. While compact in size the Squadron Pro IR is equipped with a sleek black gloss aluminum housing and outshines the competition through both appearance and performance. This light is perfect for covert applications such as military, hunting, or where stealth is needed during the night while using night vision goggles, or NODs. USPTO Reg No. 5,766,659



NOTE: This light does not come with a wiring harness. The applicable wiring harness for this light is 640117.



Features:

  • Satisfaction Guarantee – 30-Day Money Back Guarantee
  • uService – Replaceable Lenses and Optics
  • ClearView – All the Light, Right Where You Need It
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Safely Driving LEDs at 100%
  •

    Dimensions

  • Depth (in.): 2.760
  • Height (in.): 3.070
  • Length (in.): 3.070
  • Weight (lbs.): 0.750
  •

    Specifications

  • Amperage Rating (A): 3
  • Average Rated Life (hr.): 49,930
  • Beam Pattern: Driving/Combo
  • Bezel Material: Billet Machined Aluminum
  • Brightness (Lumens): 4095
  • Description: Driving/Combo; IR 940nm
  • Housing Color: Black
  • Housing Material: Aircraft Grade Aluminum with Mil-Spec Hard Anodize
  • Lens Color: Infrared
  • Lens Material: Hardcoated Polycarbonate
  • Light Quantity: 1
  • Lighting Modes: High (1700mW/sr; 3960mW)
  • Lighting Quantity: 4
  • Lighting Technology: Osram 940nm LED
  • Lighting Type: Forward Projecting
  • Mounting Hardware Included: Yes
  • Mounting Hardware Material: Stainless Steel
  • Overvoltage Protection: Built-In
  • Product Type: Squadron Pro Infrared LED Light Pod
  • Wattage (W): 41.400
  • Wiring Harness Included: No
  •

    Standards & Compliance

  • Standards/Compliance (Durability): Exceeds MIL-STD810G (Mil-Spec Testing)
  • Standards/Compliance (Impact Resistance): IK10 Compliant (Mechanical Impact Testing)
  • Standards/Compliance (Water Resistance): IP69K (Waterproof up to 9ft & Pressure Washable)
  • Specifications

    Brand: Baja Designs
    Beam: Driving/Combo
    Bezel Color: Black
    Body Color: Black
    Bulb Type: LED
    Lens: Polycarbonate
    Light Color: White
    Mounting Bracket Included: Yes
    Qty: 1
    Size: 3.00in x 3.00in
    Wiring Included: No
    Mfgr. Warranty: Limited Lifetime
    Condition: New Product
    Return Policy:
    Standard

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
