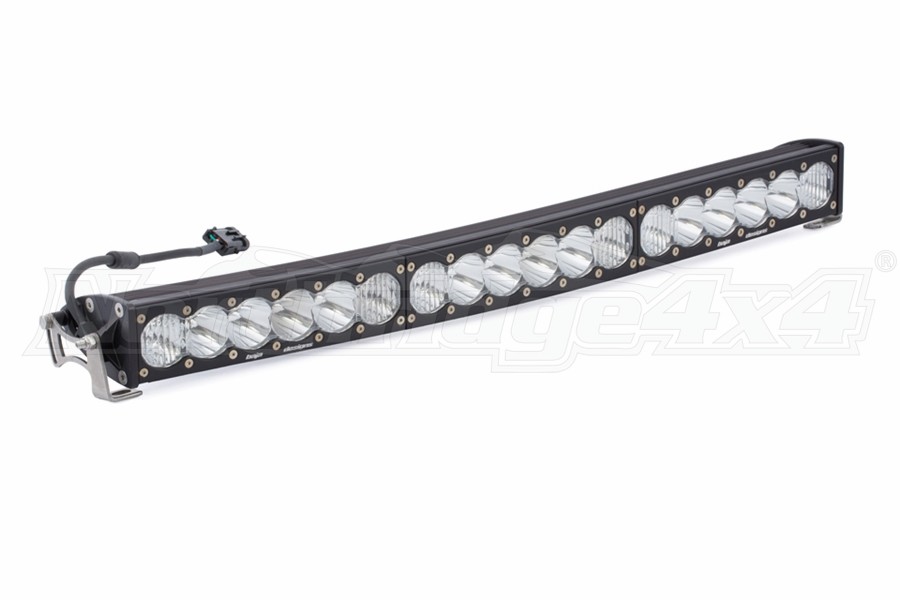

Baja Designs OnX6 Curved 30in Light Bar - White, Driving/Combo

Baja Designs OnX6 Curved 30in Light Bar - White, Driving/Combo

Baja Designs OnX6 Curved 30in Light Bar - White, Driving/Combo
Write a Review | Q&A
Part # 523003We price match! Call 866-601-5340!
We Price Match
$1,338.95

Only 1 left!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details


Please note that this light does NOT include a harness and the applicable harness to this light is found here.

The NEW OnX6+ Arc Series is the perfect combination of performance and aesthetics. Beautifully arched to fit the contour of your bumper or windshield, the Arc Series redefines the capabilities of the standard/traditional LED light bar. At an impressive 32,070 lumens, the brightest just got up to 69% brighter.  The OnX6+ LED light bar also integrates Baja Designs’ trademarked High-Speed Spot™ reflector, the same one used by our Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet. An industry-first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

This bar is equipped with BMT – Battery Management Technology

  • Elimination Of Flickering at Low Voltage
  • Added Protection to Vehicle Wiring and Systems
  • Protection from Dangerous Current Spikes
  •
    The OnX6+ LED Light Bar is BRIGHTER. BOLDER. BETTER.


    Baja Designs Features:

  • Satisfaction Guarantee – 30 Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService® – Replaceable Lenses And Optics
  • ClearView® – All The Light, Right Where You Need It.
  • MoistureBlock™ – Waterproof, Rain Proof, Submersible
  • CopperDrive® – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color
  •

    Specifications:

  • Lumens: (High) 32,070 (Low) 25,610 Utilizing 18 Cree LEDs
  • Wattage/Amps: (High) 278W / 21.7A (Low) 222W / 17.1A
  • Dimensions: 30" x 4.29" x 2.69"
  • Weight: 11.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens: Hard Coated Polycarbonate
  • Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)
  •

    Includes:

  • OnX6+ Arc 30” LED Light Bar
  • Mounting Brackets
  • Hi-Low Dongle

  • Patterns:

    Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

    Wide Driving:  BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 42° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2) (Also available in amber)

    High-Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
    ?
    Racer Edition Spot:  A 4° beam focus for illumination WAY down the trail or road.  The Racer Edition Spot is for speeds of 110+ MPH or if you need to see a mile+ away. This is the latest version for our Team Enlightened racers and is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 5+)

    Specifications

    Brand: Baja Designs
    Beam: Driving/Combo
    Body Color: Black
    Bulb Type: LED
    Color Temperature: 5000K
    Length: 30.00in
    Lens: Polycarbonate
    Mounting Bracket Included: Yes
    Qty: 1
    Wiring Included: No
    Mfgr. Warranty: Limited Lifetime Warranty
    Condition: New Product
