sPOD Universal Modular 6 Switch Panel
sPOD Universal Modular 6 Switch Panel
sPOD Universal Modular 6 Switch Panel
sPOD Universal Modular 6 Switch Panel

sPOD Universal Modular 6 Switch Panel

sPOD Universal Modular 6 Switch Panel
sPOD Universal Modular 6 Switch Panel sPOD Universal Modular 6 Switch Panel sPOD Universal Modular 6 Switch Panel sPOD Universal Modular 6 Switch Panel
sPOD Universal Modular 6 Switch Panel
This item is no longer available.
Universal part
ANY QUESTIONS?
sPODAuthorized
Dealer

Product Resources

 Installation Instructions

Features & Product Details

Universal Modular 6-Switch Panel w/36 Inch Battery Cable Set (Standard) with optional 84 Inch Battery Cable Set.
Universal System for use in many trucks and UTVs!

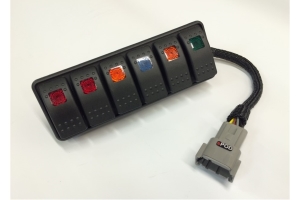

This system includes a Modular 6 switch panel. The sPOD switch panel is easy to install and arrives with switches installed and wired for plug and play ease.

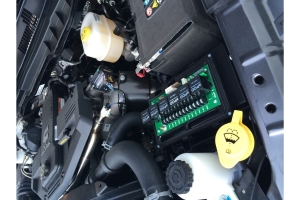

Source mounts to top of fuse box. Some cutting and drilling required.


NOTE:

  • For 2015+ Toyota Tacoma installs, must have a stock sunglasses holder for placement of the switch panel.
  • For 2004 and older Toyota Tacoma, please request the special 90 degree (2 tabs formed up) Source bracket.

    • Each system includes the following:

  • Switch actuator color: 2 Red, 2 Amber, 2 Green.
  • All required mounting brackets and hardware.

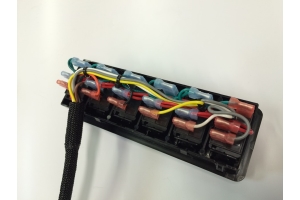

  • Switch panel with six Contura switches (installed and pre-wired)
  • 9 foot control harness (interconnect between the switches and the power distribution module)
  • All wires are wrapped in high temp abrasion resistant nylon braided sleeving.
  • 9 foot control harness (interconnect between the switches and the power distribution module)

    • The Source 6 Circuit power distribution system includes:

  • 12 position terminal block for accessory attachment
  • 6 Bosch style cube style relays (SPST 40amp) (plug-in style)
  • 6 ATO style automotive fuses 3 15 amp and 3 30 amp supplied
  • 6 Diodes to protect sensitive accessories such as LED lights from field collapse
  • Inline 50 amp manual resetting circuit breaker
  • 8 gauge power leads with crimped and soldered terminal for connection to the battery
  • Integrated LVCO (Low-Voltage-Cut-Off) circuit that detects the battery voltage and will cut-off at 11.2VDC and cuts-back in at 12.8VDC so there is enough juice to start your vehicle in case you left an accessory on!
  • LVCO can be disabled

    • Specifications

    Brand: sPOD
    Capacity: 6 Switches
    Color: Black
    Hardware Included: Yes
    Includes Switches: Yes
    Switch Illumination: Amber / Red / Green LED
    Type: Switch Panel
    Wiring Included: Yes
    Mfgr. Warranty: 1 Year Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
