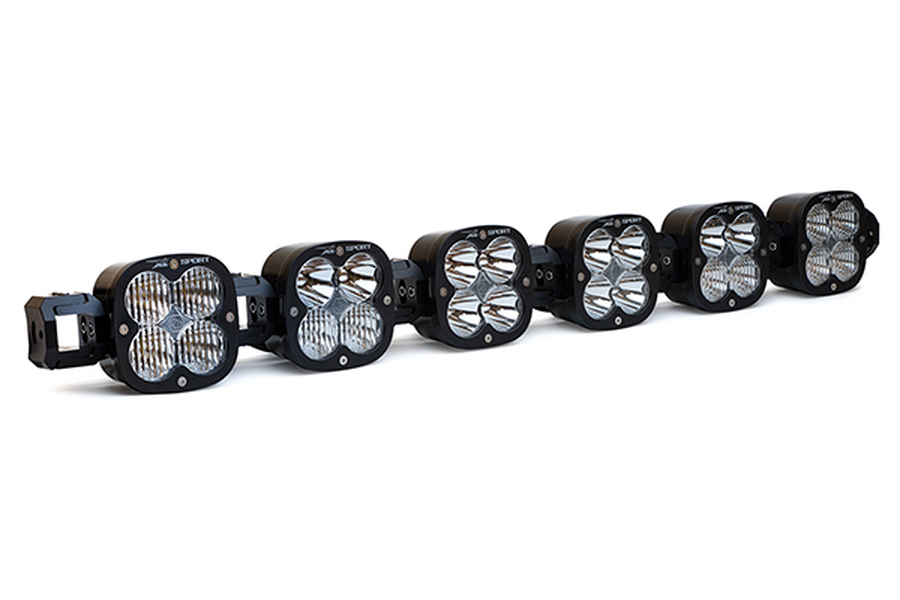

BAJA DESIGNS XL LINKABLE, 6 XL CLEAR LED LIGHT BAR
BAJA DESIGNS XL LINKABLE, 6 XL CLEAR LED LIGHT BAR
BAJA DESIGNS XL LINKABLE, 6 XL CLEAR LED LIGHT BAR
BAJA DESIGNS XL LINKABLE, 6 XL CLEAR LED LIGHT BAR
BAJA DESIGNS XL LINKABLE, 6 XL CLEAR LED LIGHT BAR
BAJA DESIGNS XL LINKABLE, 6 XL CLEAR LED LIGHT BAR

BAJA DESIGNS XL LINKABLE, 6 XL CLEAR LED LIGHT BAR

Write a Review | Q&A
Part # 740004We price match! Call 866-601-5340!
We Price Match
$1,390.95

Only 2 left!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Features & Product Details

Full adjustment. Total Performance. The XL Linkable was designed for the enthusiast looking to take charge with a light package that is completely customizable for their needs. This kit includes 6 XL Sports, Links, and Rock Guards.

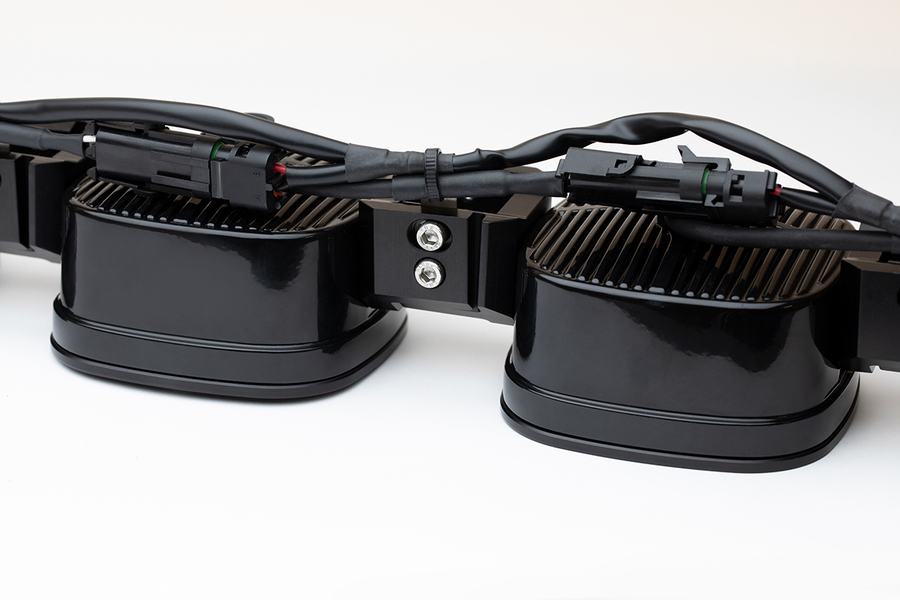

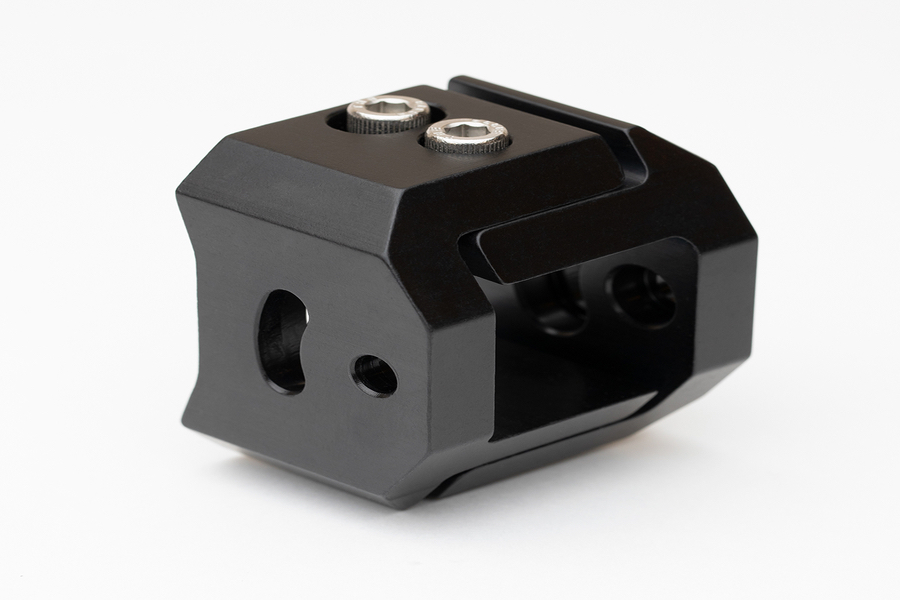

This system provides 45 degrees of vertical pitch adjustment within each light or the entire unit. Completely independent horizontal adjustment allows for straight or arced configurations to perfectly match the lines of your vehicle. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.    The wiring comes fully crimped and trimmed, allowing for easy install and the ability to add links down the road.

 If you're looking to have a lighting system that performs as well as it looks, this is the auxiliary light kit for you!

Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService® – Replaceable Lenses And Optics
ClearView® – All The Light, Right Where You Need It.
MoistureBlock™ – Waterproof, Rain Proof, Submersible
CopperDrive® – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:
Lumens: 18,900 Utilizing 24 LEDs
Wattage/Amps: 156W / 12A
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)



Includes:

  • x2 XL Sport Spot LED Light
  • x2 XL Sport Driving/Combo LED Light
  • x2 XL Sport Wide Cornering LED Light
  • x6 XL Sport Rock Guards
  • Pre-load Kit
  • Patterns:

    Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

    Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

    High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)






    Specifications

    Brand: Baja Designs
    Body Color: Black
    Lens: Polycarbonate
    Qty: 6
    Wiring Included: Yes
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
