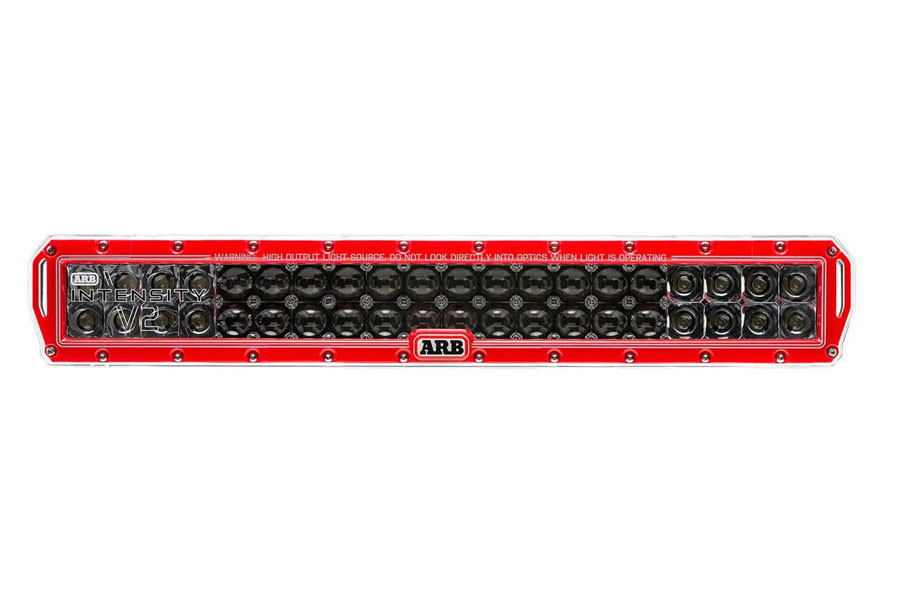

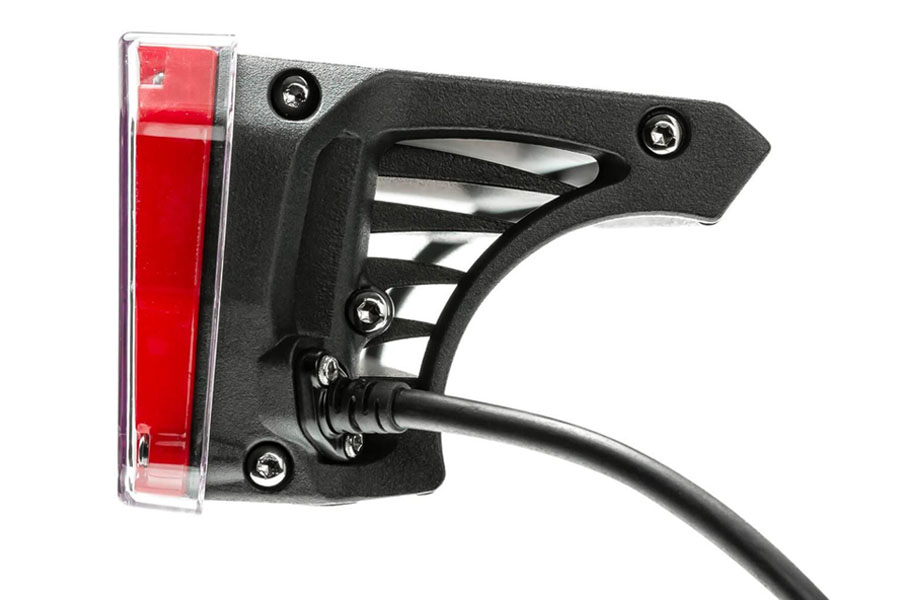

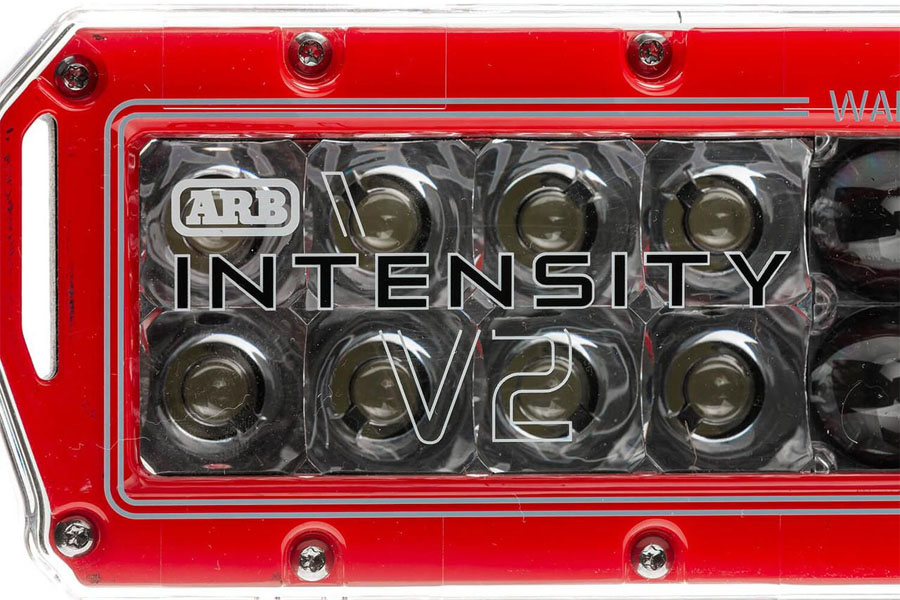

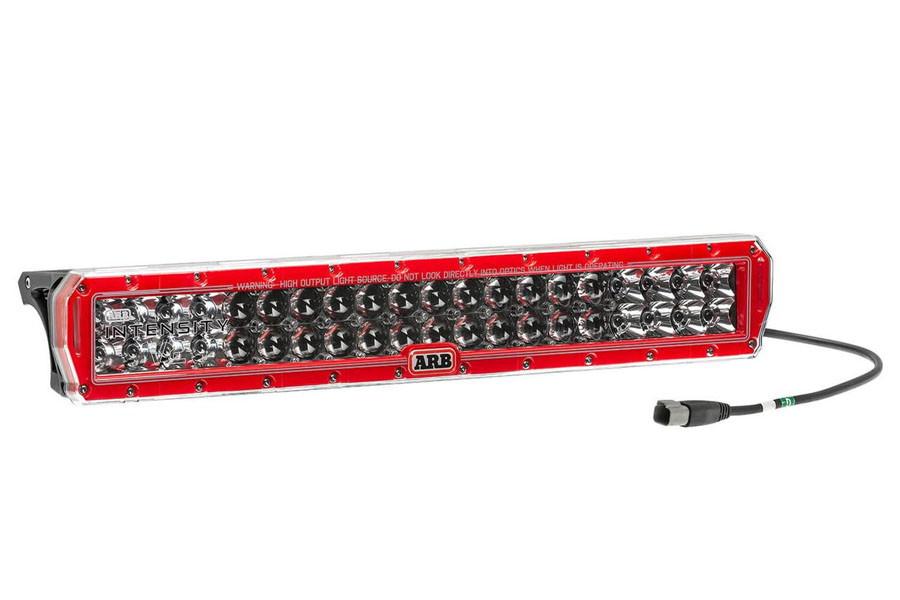

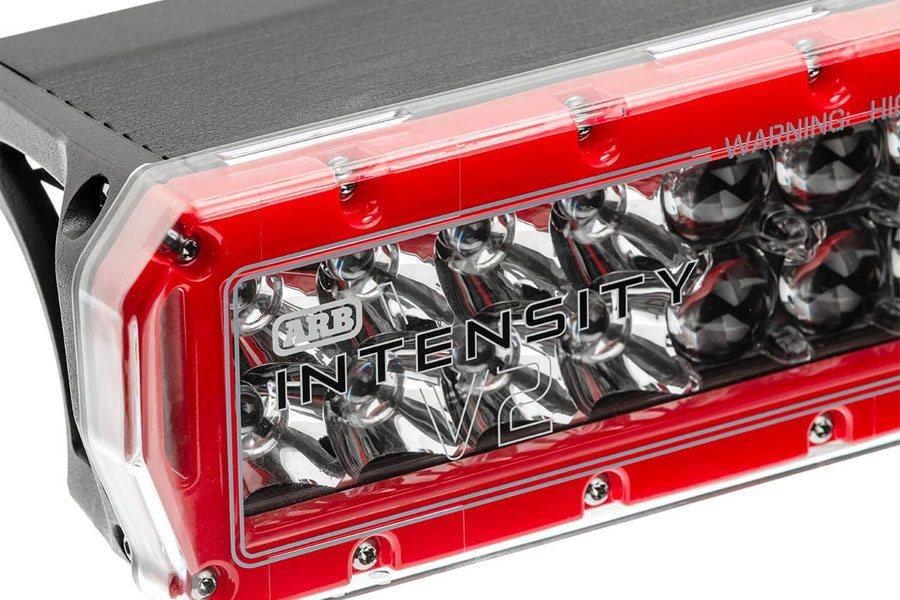

ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar
ARB INTENSITY V2 40 LED Light Bar

ARB INTENSITY V2 40 LED Light Bar

Write a Review | Q&A
Part # AR40CV2
$636.00

Only 1 left!
Universal part
ANY QUESTIONS?

Product Resources

Features & Product Details

The ARB Intensity V2 Light bar is a substantial upgrade from its predecessor, the Iconic Australian lightbar. It produces clean crisp light with refined color temp on the led that helps reduce eye strain and fatigue for long-distance driving and reaches amazing distances down the road to improve safety. It is an excellent choice to provide good lighting for distance as well as width. The Intensity V2 light bar uses the same optimal chassis design of the previous Intensity light, yet incorporates the latest in LED technology using OSRAM GIANTS and advanced optics via the latest Hyperspot™ technology in our combo configuration, a further refined design for our flood configurations to extend the floods ability to drive light further down the road, as well as spreading the light in front of the vehicle. This can only be achieved by dedicated flood and spot optics combined into one light bar. Hyperspot™ is a refined optic used to focus and intensify the light output and drive the LED OSRAM GIANTS at amazing distances down the road while keeping clarity in the beam and controlling the beam pattern to the correct area on the road without spilling light into areas not required or fore filled by the flood configuration. This configuration delivers 305W out of the new AR40CV2 and produces over 25,000 Lumens.

Updated Optics

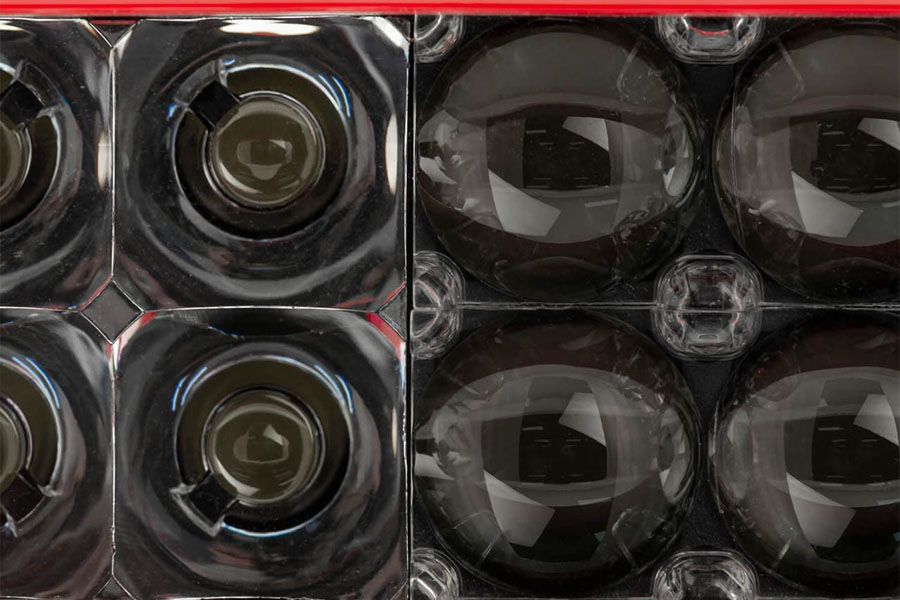

The Intensity V2 light bar uses the same optimal chassis design of the previous Intensity light, yet incorporates the latest in LED technology using OSRAM GIANTS and advanced optics via the latest HyperspotTM technology in our combo configuration, a further refined design for our flood configurations to extend the floods ability to drive light further down the road, as well as spreading the light in front of the vehicle. This can only be achieved by dedicated flood and spot optics combined into one light bar.

HyperspotTM is a refined optic used to focus and intensify the light output and drive the LED OSRAM GIANTS at amazing distances down the road while keeping clarity in the beam and controlling the beam pattern to the correct area on the road without spilling light into areas not required or fore filled by the flood configuration. This configuration delivers 305W out of the new AR40CV2 and produces over 25,000 Lumens.

Updated Loom

The increase in power draw necessitated an update to the new loom (part numbers in the table below). Harnessing and supplying increased power, required a dedicated harness with high current wiring and components designed to handle up to 30 amps.

Coupled to the new Intensity V2 light bar loom, is the two pin DTP connector with updated over molded connector all protected by midi fuse and spike protected relays. Another update to improve fitting time and reduce problems while fitting, are plug-and-play H4 and HB3 waterproof connectors included with the V2 light bar loom.

Improved Throw by 58%!

Distance at 1 lux is the most widely used method of measuring driving lights’ performance, and V2 Intensity light bars throw a great distance down the road that can be seen with the natural eye. A single AR40CV2 combo in the V2 update provides 3,038ft which is a 58% increase in light performance of the current intensity combo spec and a massive 131ft of spread across the front of your car, nearly half a football field long. Updates were also made to improve the warmness of the light output as well. This helps reduce eye strain over long driving periods, improves driver comfort, and assists in reducing fatigue.

Features:

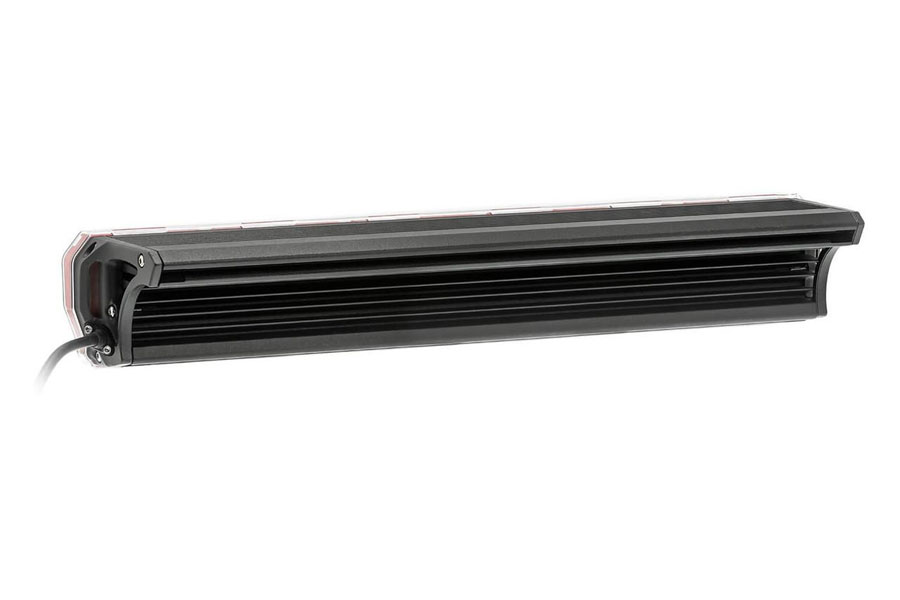

  • Powder-coated aluminum extrusion body with pressure die-cast end caps
  • Virtually indestructible polycarbonate lens
  • Hard-coated, durable polycarbonate protective cover
  • 40 OSRAMTM LEDs with 50,000+ hour lifespan
  • 24 Hyperspot® and 16 high-output flood optic LEDS
  • Gore® breather
  • Vibration tested to MIL810-STDG
  • RoHS compliant
  • Dust and waterproof to IP68 rating
  • Submersible to three meters / 9.8 feet
  • Over and under voltage protection
  • Integrated active thermal management
  • Protected against radio frequency (RFI) and electromagnetic (EMC) interference
  • Deutsch DTP waterproof connector rated to IP68 specifications
  •

    Specifications

    Brand: ARB
    Beam: Hyperspot
    Body Color: Red
    Bulb Type: LED
    Color Temperature: 5700K
    Length: 22.1in
    Lens: Polycarbonate
    Mounting Bracket Included: No
    Qty: 1
    Wiring Included: No
    Mfgr. Warranty: 3 Year Warranty
    Condition: New Product
