Morimoto Switched Power Harness BigBanger Bar, Up to 7x Pods

POWER UP: The Morimoto BangerBar is a piece of equipment designed to set a new standard in its segment, and the same goes for the wiring. This harness is designed to easily provide reliable power delivery to a row of our 2 or 4-Banger pods.

OEM+: Not one component on the harness was overlooked for cost or simplicity. Triple-sealed proprietary 4-pin relays with hanger. Proprietary over-molded inline fuse holder with 20A mini fuse. DT06-2S female outputs with dual seals. Stainless steel power and ground terminals. Proprietary M-Spec push button switch with amber-LED backlight.

PROPER: All wiring is properly sized, and relays are rated for flicker-free, reliable power delivery. Every 16 AWG copper wiring line is protected with black mesh insulation. Every connector has been over-molded, sealed, or protected with heavy-duty heat shrink. Your factory wire harness will fall apart before this thing.

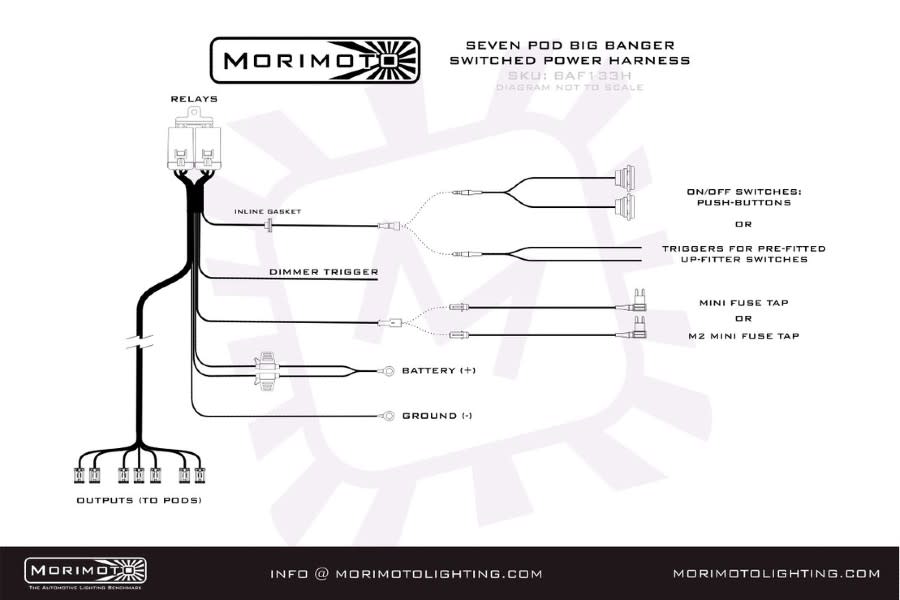

PLUG N PLAY: The connections on the harness have been laid out logically to power up to eight Bangers linked together with the BangerBar links. The in-cabin push button switch wiring has an in-line barrel connector that drastically improves the ease of installation since you don't have to jam the switch mechanism through the firewall. The harness also includes an input line that's ideal for use with upfitter switches.

COMPATIBLE: This harness perfectly matches Morimoto BangerBar setups with numerous pods linked together as a light bar. It is purposely designed to deliver enough power and is laid out with intention. There are two versions. One for 6-8 pods and another for 10-12 pods.

DRL DRIVE: The harness is designed to send power to the BigBanger backlight using an ignition-switched power source in your fuse box. To do so, the harness includes a mini and micro fuse tap to ensure success regardless of your make/model. This will make the backlight run at full intensity. To dim the backlight for dusk or nighttime driving, the harness has a separate line that should be tapped into your parking light or low beam circuit.

Included:

Compatibility:

Specs:
