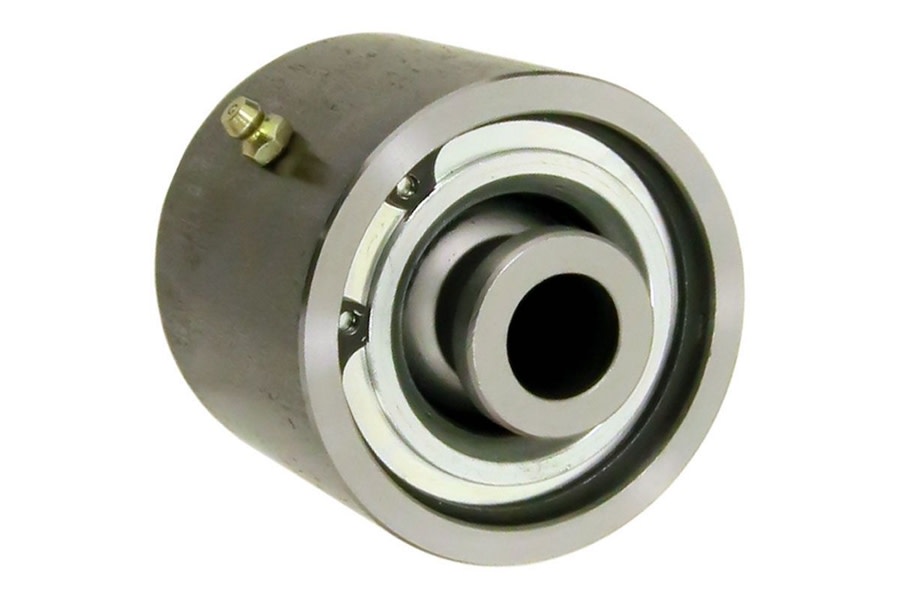

RockJock 3in Johnny Joint End

For fabricators and suspension system builders. RockJock's Johnny Joints offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common Heim joint. The bushings in the Johnny Joint rod ends are made with a high-density, tough 0.88-inch urethane that encases the inner ball. It is a very durable material and is impervious to the weather. The special ball is heat-treated steel for extra strength. The 3-inch joint is lubricated via a zerk fitting on the outer shell -- an outer shell constructed of tough 4130 Chromoly. The retaining washers are machined out of 4340 Chromoly and feature a snap ring safety machined into their face to protect the snap ring from coming out. The center ball is heat-treated steel for extra strength, cross-drilled for thru-bolt lubrication, features a 3/4 inch thru bolt hole, and a 3 1/4 inch mounting width. Sold each.
