RockJock 2in Johnny Joint Rod End

RockJock's Johnny Joint Rod Ends have been a staple in the off-road industry since 1996! Available universally for builders or found in the RockJock suspension components, John Currie’s proven formula provides a reliable, greaseable, rebuildable joint that is capable of dramatic articulation in off-road applications, while still providing smooth, cushioned, quiet performance during on-road use.

Johnny Joints are available as a forged rod end with various RH and LH thread sizes from 3/4 in. up to a massive 1 1/2 in. thread! Additionally, weld-on versions of all Johnny Joints are available for fabricators.

Specialty joints, such as polished stainless steel, long body and bent forgings and application specific machined joints are all available for custom builder use.

All sizes of joints offer a standard or a narrow-width joint body which provide different levels of overall articulation range (up to 30 plus degrees on a standard body and up to 40 plus degrees on a narrow body). The narrow body’s 1 piece bushing will provide a slightly firmer ride.

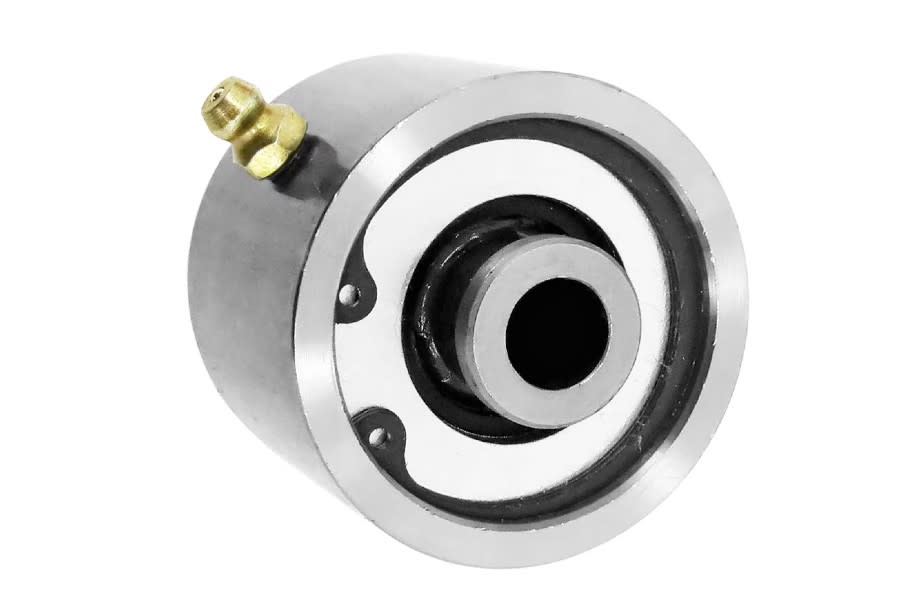

This 2 in. Johnny Joint incorporates our weld-on, standard width, steel outer barrel and a 2.190 in. overall width x .482 in. thru-bolt hole pivot ball.

Greasing is handled externally via the included zerk fitting that installs into the threaded hole in the joint outer barrel.

Rod End Includes:

Rod End Features:

Notes:
