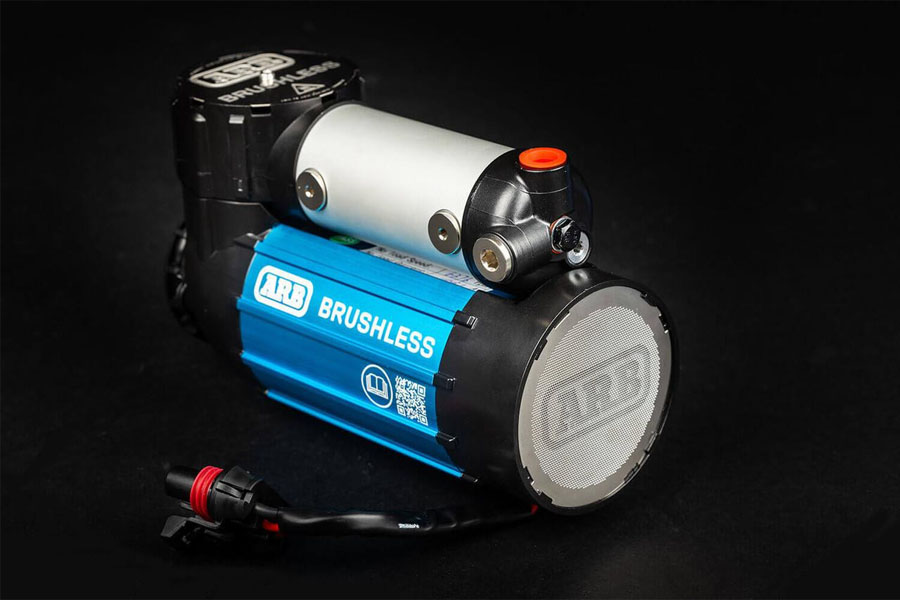

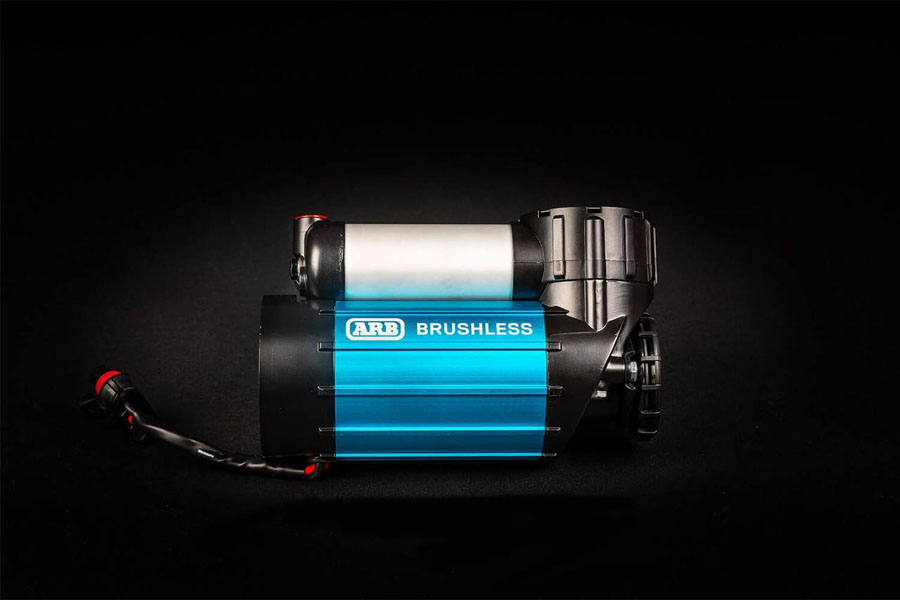

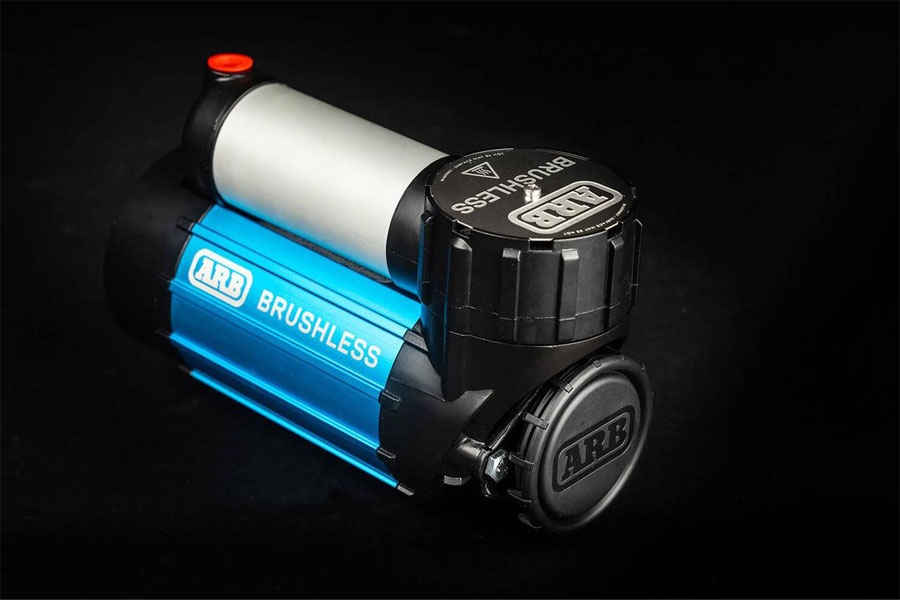

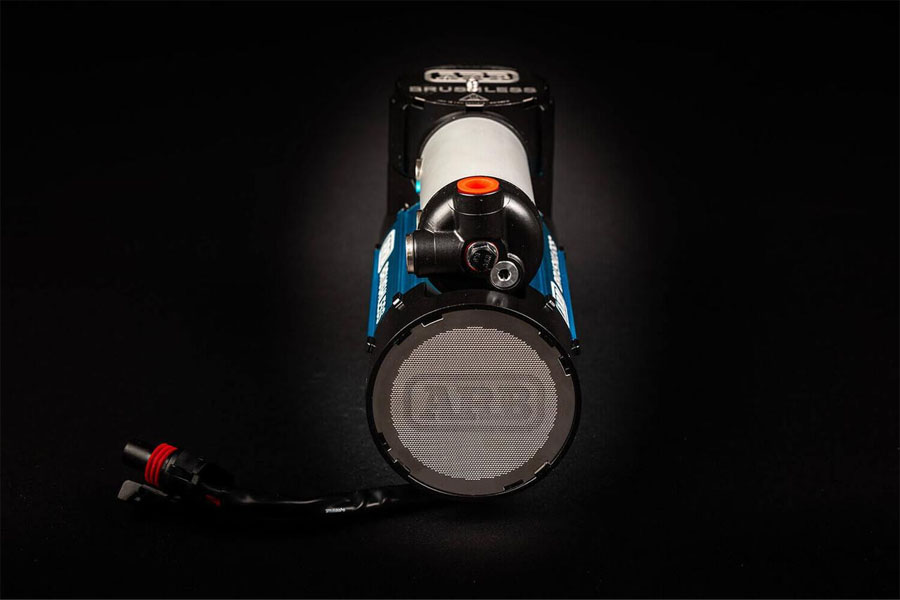

ARB Brushless Single Motor Onboard 12V Air Compressor
ARB Brushless Single Motor Onboard 12V Air Compressor
ARB Brushless Single Motor Onboard 12V Air Compressor
ARB Brushless Single Motor Onboard 12V Air Compressor
ARB Brushless Single Motor Onboard 12V Air Compressor

ARB Brushless Single Motor Onboard 12V Air Compressor

ARB Brushless Single Motor Onboard 12V Air Compressor
ARB Brushless Single Motor Onboard 12V Air Compressor ARB Brushless Single Motor Onboard 12V Air Compressor ARB Brushless Single Motor Onboard 12V Air Compressor ARB Brushless Single Motor Onboard 12V Air Compressor
ARB Brushless Single Motor Onboard 12V Air Compressor
Write a Review | Q&A
Part # CKBLA12We price match! Call 866-601-5340!
We Price Match
$559.95

In stock!
Qualifies for
free shipping!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
ARBAuthorized
Dealer

Product Resources

 Installation Instructions

Features & Product Details

ARB has expanded its line of premium air compressors with the new Brushless series. Long known as a leader in onboard and portable air compressors, the new ARB Brushless lineup offers the ultimate air compressors, featuring brushless electric motors, built in fans for active cooling, cutting-edge smart technology, and an impressive 50% increase in air output compared to ARB’s current market-leading compressors. ARB Brushless Air Compressors are compatible with ARB’s existing range of air accessories and hose kits, and ARB Air Lockers, making upgrading your current air system super easy! ARB Brushless Air Compressors allow you to spend less time inflating, and more time having fun: Quick Air, More Adventures.



Product-only Dimensions: 5.5" x 8.3" x 3.5" (6.8 Lbs)



Features

  • 50% Increase in output – ARB Brushless boasts an additional 50% in output when compared to our current market leading ARB brushed compressor, meaning less time inflating and more time adventuring
  • Active Cooling – An active cooling system has been included with a fan in each motor/compressor assembly to achieve higher performance and longevity
  • Electronic Speed Control - Maintains optimum performance and operations across all pressure and ambient temperature conditions
  • Status Reporting – Live diagnostics via audio and visual alerts
  • Voltage and Overload Protection – Protects the compressor and power supply from damage due to voltage spikes, drops, fluctuations, overcurrent, and motor stalls
  • Continuity in Function – The ARB Brushless is constantly monitoring itself and can make adjustments to account for factors such as temperature and variations in vehicle charging systems
  • Quick-release Mounts – Onboard units can be removed using cam-lock quick-release mounts, making installation and removing simple process
  • Relays Eliminated – The inclusion of the brushless motor also means there is not any need for the mounting of relays, further reducing the install time

    •

    Specifications:

  • Volts: 12V
  • Width: 10.83 inch
  • Height: 6.1 inch
  • Length: 12.8 inch
  • Weight: 9.5 lb
  • Max Amps: 45
  • IP Rating: IP67 Water Resistant
  • Duty Cycle: 100%
  • Air Flow 0PSI: 4.59 CFM
  • Air Flow 29PSI: 3.10 CFM
  • Design: Brushless
  • Design: Onboard

    • Product Video

    Specifications

    Brand: ARB
    Air Flow: 4.59 CFM
    Duty Cycle: 100%
    Hardware Included: Yes
    Mount Included: Yes
    Pressure Switch Included: Yes
    Qty: 1
    Tank Included: No
    Mfgr. Warranty: 3-year
    Condition: New Product
    Return Policy:
    Standard

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
