Diode Dynamics Clear Lens for SS5 Pods - Flood

Features

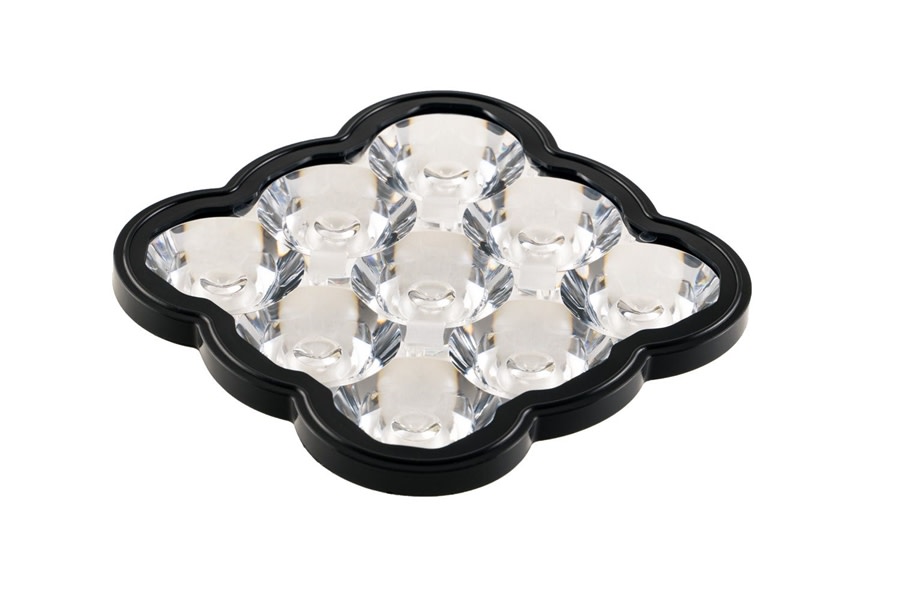

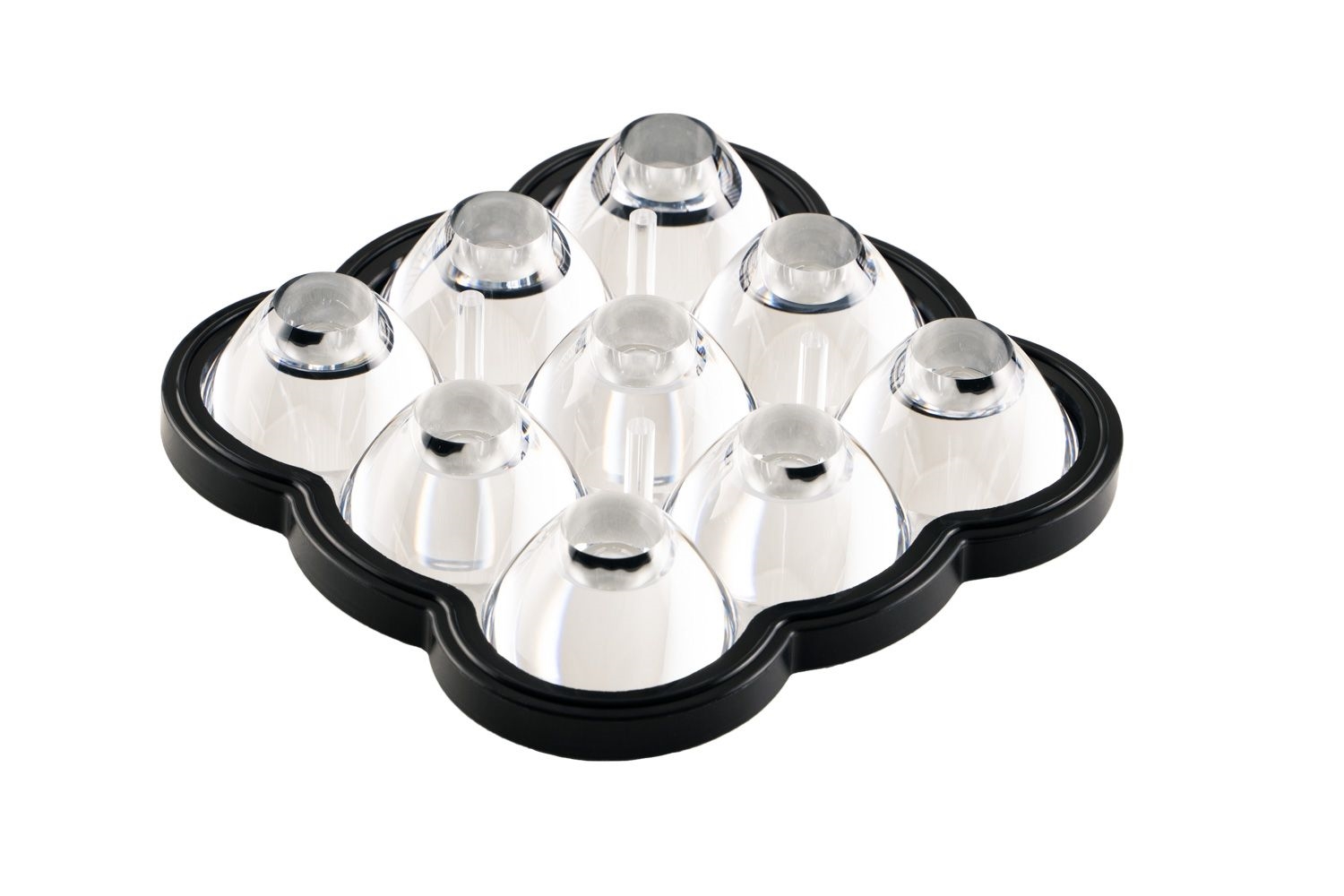

This clear lens is a direct replacement for the original main lens in your SS5 LED Pod. It can be used to change both the color and output pattern, with a quick swap! Made of durable optical-grade polycarbonate, each lens comes with an integrated o-ring to maintain a watertight seal.

Colors. SS5 LED pod lenses are available in clear material, producing white light, or a selective yellow filter. You can change the color of your lights by swapping out the lens, but please note that changing colors may not be perfect with these lenses, because different LEDs are used depending on the color of light you originally purchased. If you purchased White pods originally, they have 6000K white emitters, while Yellow SS5s come with 4000K emitters.

Easy Swap. Changing the main lens in the SS5 takes just a few seconds! Remove the eight torx-head screws from the back frame, pull the old lens and o-ring assembly out, and put in your new lens, which comes with the o-ring preinstalled. Take care not to touch the inner optical surface of your new lens during the swap, or wear a pair of gloves to keep things clean. The locating pins ensure correct alignment and rotation. Reinstall the eight screws so they are very hand-tight, and you are ready to shine in your new color or beam pattern!

Warranty. Diode Dynamics Stage Series LED lighting comes with a 3-year replacement warranty, as well as an 8-year limited warranty. If you choose to disassemble and replace the lens on your SS5 pod, you still keep your 8-year limited warranty intact. However, we may require the light to be sent in for any service and repair, rather than immediate replacement.

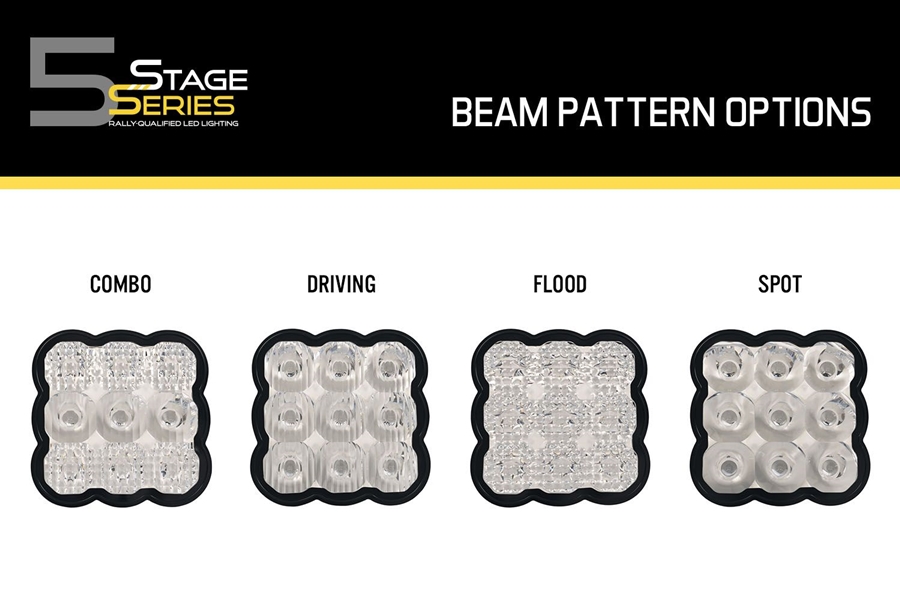

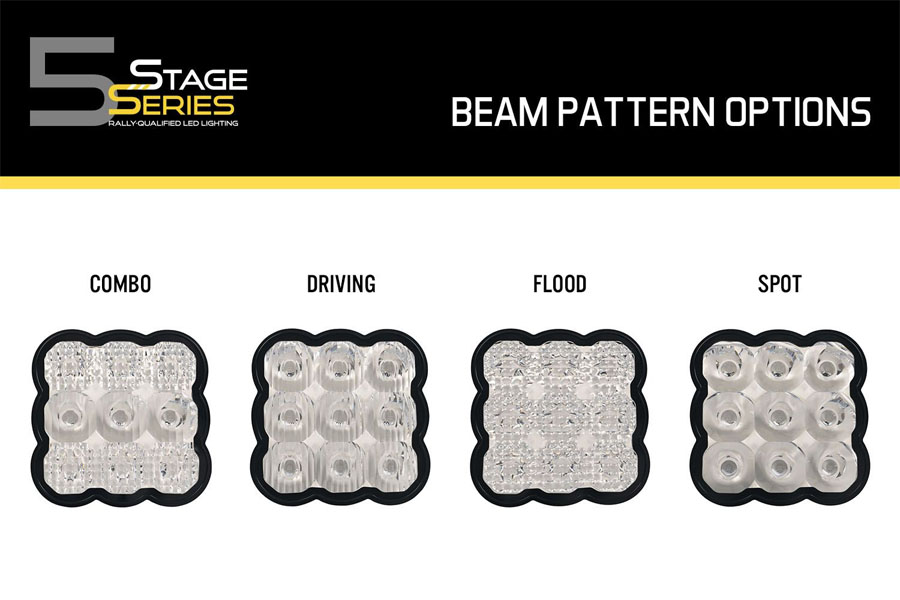

Functional Patterns. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!

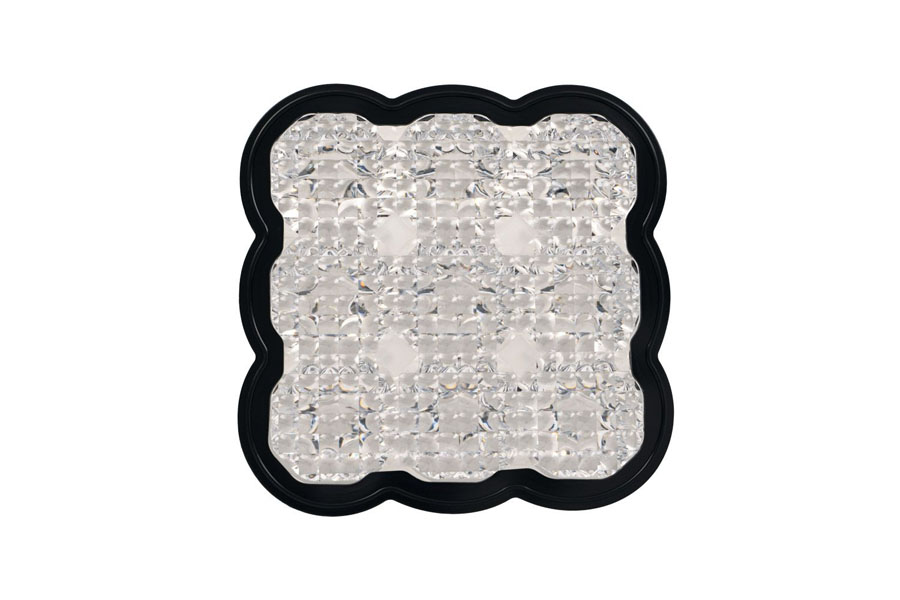

Flood pattern was designed to provide uniform, even illumination with a full 70x55 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, the flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout. It is perfect for lighting up anything at low speeds, or for trailers and worksites.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. They directly assemble and engineer their own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, they pride themselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Fitment

Specifications

Installation

Changing the main lens in the SS5 takes just a few seconds! Take care not to touch the inner optical surface of your new lens during the swap, or wear a pair of gloves to keep things clean.

1. Remove the eight torx-head screws from the back frame.
2. Pull the old lens and o-ring assembly out.
3. Put in your new lens, which comes with the o-ring preinstalled. DO NOT remove the o-ring from the lens. You will find small pins which align the lens in the correct orientation. If the lens does not drop into place, make sure alignment is correct.
4. Reinstall the eight screws so they are very hand-tight.

Installation Time: 5-10 minutes

Tools Needed: T10 Torx Bit

Modification: None
