Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro
Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro

Diode Dynamics Stage Series Flush Mount Reverse Light Kit, C1 Pro

Write a Review | Q&A
Part # DD7147We price match! Call 866-601-5340!
$279.95
+$ Oversize Shipping Surcharge
msrp: $280.00

Out of Stock. Average time to ship: 30 days
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Product Resources

Features & Product Details

Features:

  • Allows for flush installation of SSC1 or SSC2 LED pods in the rear bumper.
  • Connects to vehicle wiring for simple, everyday operation.
  • Provides high-power reverse light, and red accent light.
  • Durable powder-coated aluminum construction.
  • Designed and assembled in the USA.
  • Overview:

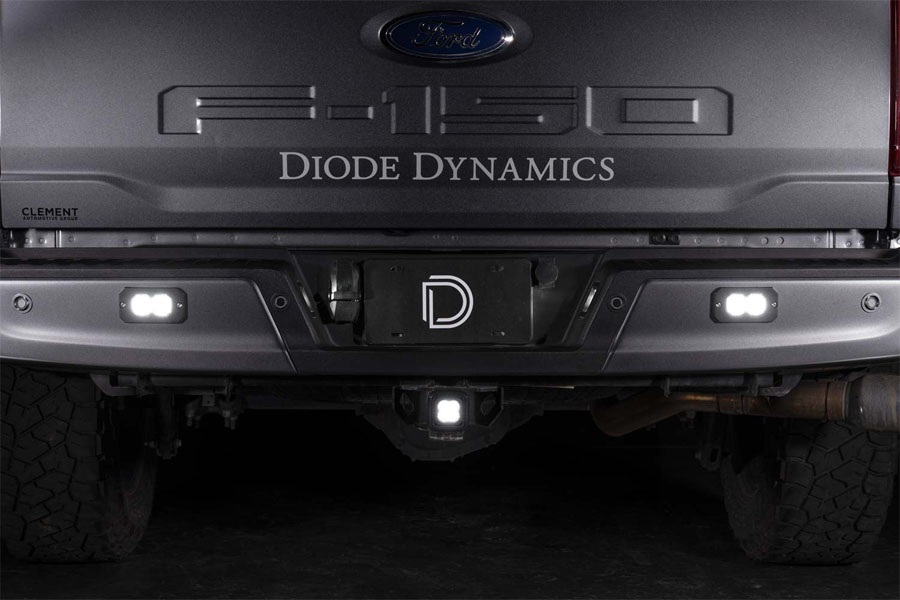

  • Add significantly more light output when backing up at night with our Stage Series Flush Mount Reverse Light Kit! This kit allows you to mount two flush mount SSC1 or SSC2 LED pods in your rear bumper, adding a high-power reverse light, along with a red accent light. With the included wiring harness, this kit connects to your vehicle's wiring for simple, everyday operation.

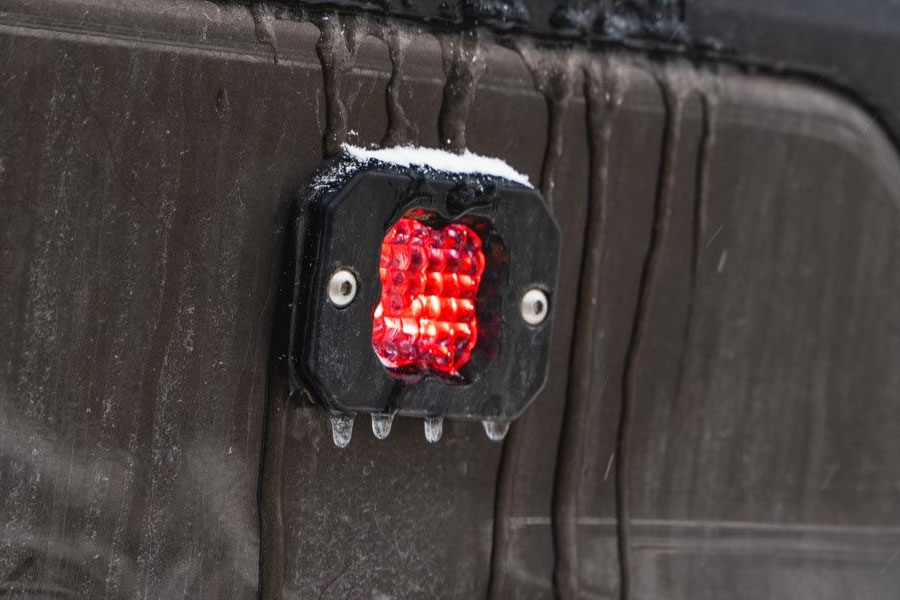

  • Backlight Functionality. The Stage Series LED pods included with this kit feature a distinctive backlight feature in a vibrant red color which can be used as additional accent lights while driving! The backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.
  • Simple connections. The included wiring harness allows you to connect this kit to your vehicle's wiring for simple, everyday operation. The kit operates as an additional red accent light, with your tail lights, and then automatically switches to a high-power backup light when your vehicle is in reverse. The included toggle switch allows you to override the vehicle signals and turn on the main beam anytime.
  • Focused. Traditional optics like reflectors or simple lenses lose light internally and glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in our Stage Series pods collects all of the light from the LED and directs it only where you need it, drastically reducing glare and improving total efficiency.
  • From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the Stage Series LED pods serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of our pods is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
  • Functional Patterns. All Stage Series beam patterns were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. The flood pattern was designed to provide uniform, even illumination with a full 50x50 degree spread of light on the SSC1 LED pod, and a 60x60 degree spread on the SSC2 LED pod. Unlike generic "flood" lights that are simply a heavily diffused spotlight, our flood pattern uses pillow optics on the outer lens surface, to provide a true optically designed spread, for even illumination throughout.
  • Sport or Pro. Stage Series LED pods are available at two different power levels. Both options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. However, the Pro option is double the amount of total power.
  • Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
  • Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. Diode Dynamics directly assembles and engineers an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology.

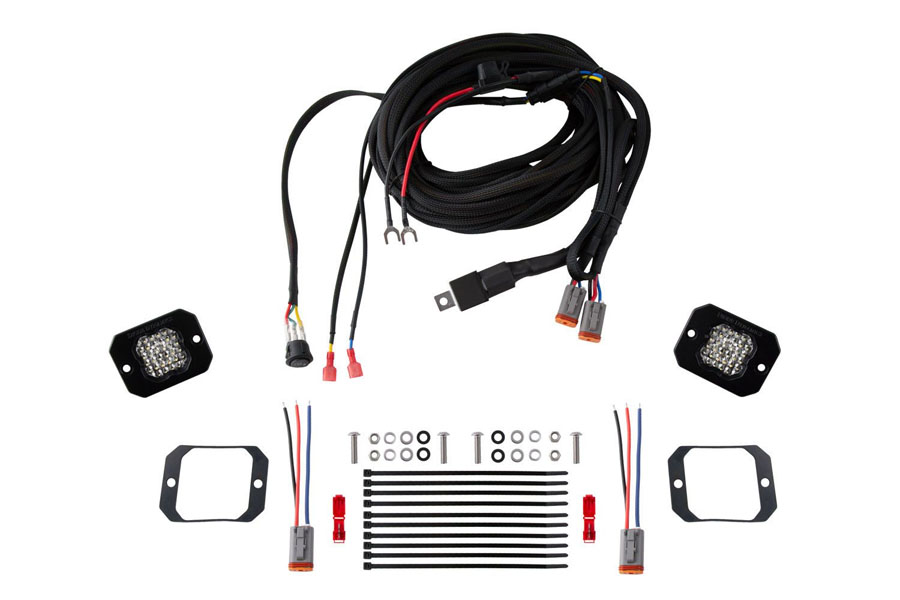

  • In the Box:

  • Two (2) SSC1 or SSC2 Flush Mount LED Pods
  • One (1) Universal Reverse Light Wiring Harness
  • Two (2) Flush Frame Gaskets
  • Ten (10) Zip Ties
  • Two (2) T-Taps
  • Mounting hardware and drilling template
  • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
  • Quantity: Two (2)
  • Product Video

    Specifications

    Brand: Diode Dynamics
    Body Color: Black
    Bulb Type: LED
    Lens: Polycarbonate
    Mount Style: Flush Mount
    Mounting Bracket Included: Yes
    Qty: 2
    Wiring Included: Yes
    Mfgr. Warranty: 8-Year Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
