Diode Dynamics Stage Series Single-Color LED Rock Light Kit - 4 Pack
Diode Dynamics Stage Series Single-Color LED Rock Light Kit - 4 Pack
Diode Dynamics Stage Series Single-Color LED Rock Light Kit - 4 Pack
Diode Dynamics Stage Series Single-Color LED Rock Light Kit - 4 Pack
Diode Dynamics Stage Series Single-Color LED Rock Light Kit - 4 Pack

Diode Dynamics Stage Series Single-Color LED Rock Light Kit - 4 Pack

Write a Review | Q&A
Part # DD7738We price match! Call 866-601-5340!
We Price Match
$239.95

In stock!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?

Features & Product Details

Looking to light up the trail at night? Look no further. Introducing the Stage Series LED Rock Light Kit! Designed for superior durability and maximum performance, Stage Series LED Rock Lights have set a new standard in the offroad category. This kit includes all the wiring and hardware necessary to mount four Stage Series LED rock lights, making it easier than ever to add rock lights to your vehicle.

Unmatched Light Output. With a true power draw of over 10 watts, the Stage Series Rock Light provides a peak output of 1000 lumens. Even with claims of high power, generic rock lights run at only a few watts, making the Diode Dynamics Rock Light a huge step up for the entire category.

Optically-Engineered, Interchangeable Lenses. In true Diode Dynamics style, we’ve incorporated optical features to get the best performance possible. Four individual optics are molded into the outer lens, which provides excellent spread and even, consistent coverage from each light. The lens itself is a thick automotive-grade polycarbonate, made to take a beating on the trail. And the best part? Our single-color rock light kit includes four amber and four red lenses, allowing you to change the color of your rock lights for maximum versatility. Click here to find extra interchangeable lenses.

Dual Power Levels. The Stage Series Rock Light uses a simple 3-wire system, allowing you to select a low-power or high-power mode. At 3 watts of output, the low-power mode is actually on-par with the max output of most generic rock lights! If you want to light up a campsite and you don’t need all 800 lumens, the low-power mode is a great way to conserve battery power. This 3-wire setup also provides much more functionality on custom off-road builds. By tying the low and high power wires into your factory harness, you can use them as a dual-function running/brake light, or running/turn signal, all in one simple package.

Mount it Your Way. Our Rock Light Kit can be mounted using the center bolt mounting point that is neatly hidden underneath the lens and comes standard.

Simple Connections. For maximum convenience, these lights include a waterproof M8 barrel-style connector with a 10-inch lead. This provides a secure, waterproof connection and is compatible with the included plug-and-play harnesses. At only 8mm in diameter, it’s still easy to route the wires to where you need them.

Proven Reliability. We know your rock lights will be put to the test, so you can rest assured that they have been designed for superior durability. They are IP68 waterproof rated and feature a cast aluminum housing and pin-fin heatsink, for effective thermal dissipation. The lens is designed with thick automotive-grade polycarbonate, and a UV coating. Backed by a limited 8-year warranty, they have been tested in-house from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. Rest assured, the Stage Series Rock Lights will handle whatever you throw at them.



Features

  • Convenient center-mount or magnet mount installation.
  • Includes all necessary wiring and mounting hardware.
  • Aluminum heatsink with signature Ico Bezel shape.
  • Thick, durable lenses, engineered to spread light.
  • Engineered and Assembled in USA.
  •

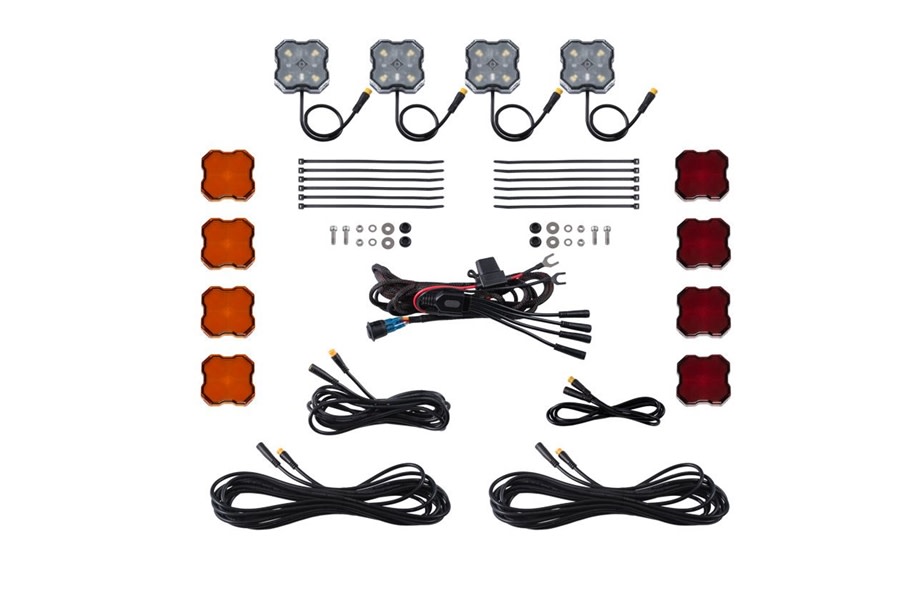

    In the Box:

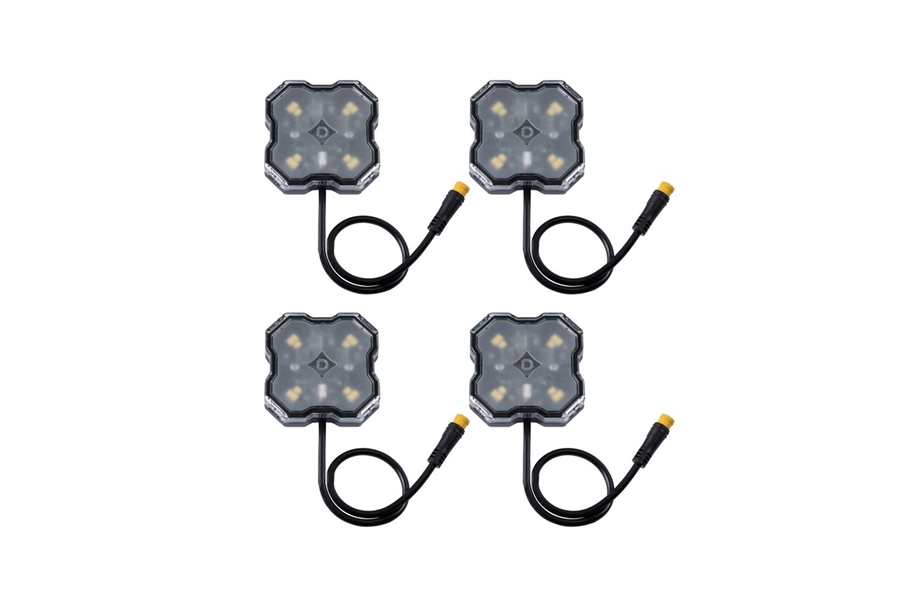

  • Four (4) Stage Series Single-Color Rock Lights
  • Four (4) Amber Rock Light Lenses
  • Four (4) Red Rock Light Lenses
  • Four (4) Rock Light Hardware Kits
  • One (1) Rock Light Single-Color wiring harness
  • One (1) 1M Extension
  • One (1) 3M Extensions
  • Two (2) 5M Extensions
  • Six (6) Zip Ties
  • Installation guide
  • Product Video

    Specifications

    Brand: Diode Dynamics
    Body Color: Black
    Covers Included: Yes
    Light Color: White
    Qty: 4
    Wiring Included: Yes
    Mfgr. Warranty: 8 Year Warranty
    Condition: New Product
    Return Policy:
    Standard
