Diode Dynamics D-Switch 8 Channel Switch Panel

Overview

Take full control of your lighting setup with the Diode Dynamics D-Switch. This advanced 8-channel solid-state switch panel offers unmatched flexibility, allowing you to group and customize outputs for seamless operation. With a dedicated backlight channel, built-in strobe and dimming functions, and a fast, responsive Bluetooth app, the D-Switch delivers next-level control for your off-road and auxiliary lighting and more. Designed for durability with an IP67-rated aluminum housing and backed by a 3- year warranty, this system is built to perform in any environment.

Take Full Command. The Diode Dynamics D-Switch 8-Channel Switch Panel is designed to give you complete control over your auxiliary lighting setup with advanced customization and rock-solid reliability. Unlike traditional switch panels, the D-Switch allows you to group and configure multiple outputs per button, giving you the flexibility to create the perfect setup for your vehicle. Whether you're running Diode Dynamics off-road lighting or other 12V accessories, the D-Switch makes control effortless.

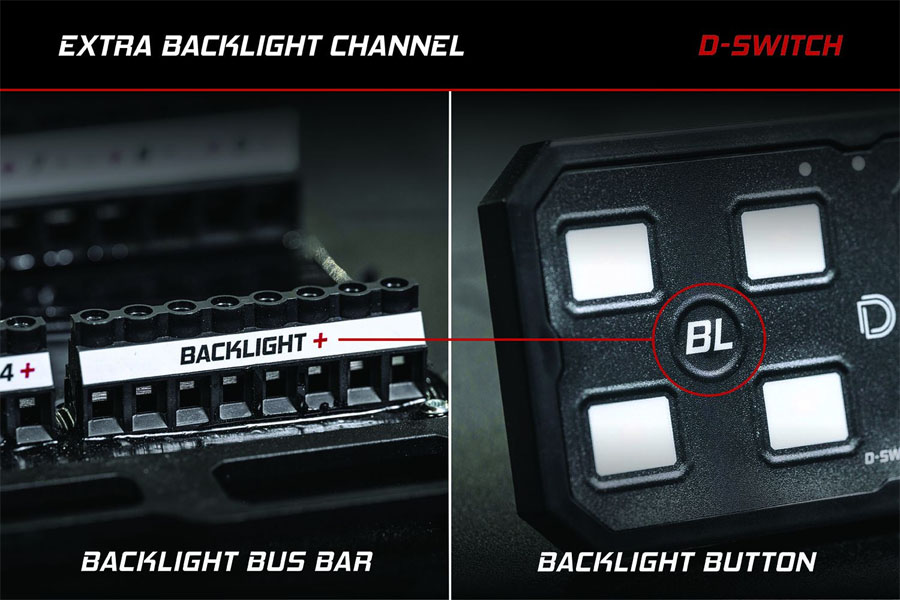

More Control, More Options. With eight programmable outputs, you’re not limited to a basic 1-to-1 button setup. Assign multiple functions to a single switch, or power individual lights with unique settings. Plus, a dedicated backlight channel lets you control your accent lighting separately—without taking up a main switch.

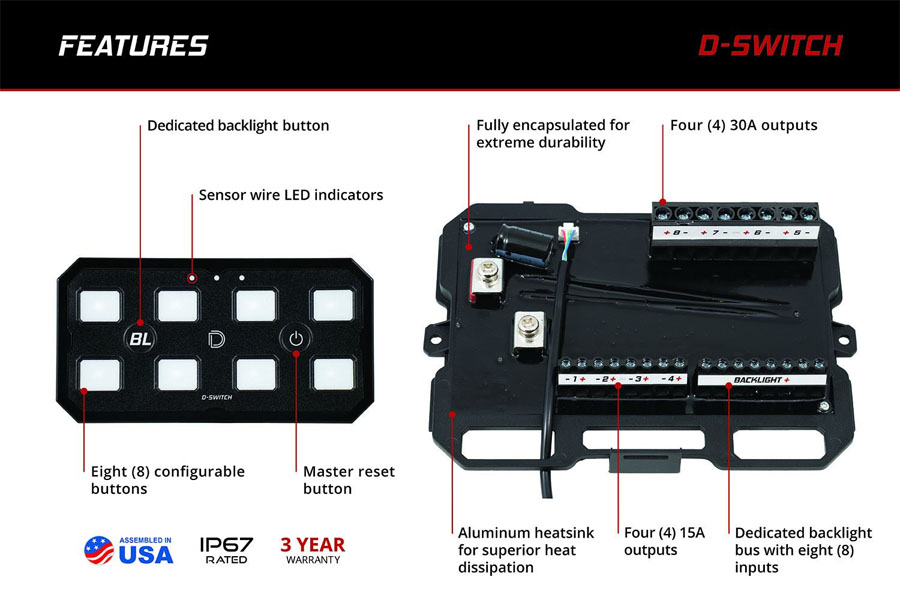

Solid-State Performance. Built for extreme durability, the D-Switch features a fully solid-state design with no mechanical relays or fuses to wear out. The hub is encapsulated in a rugged aluminum housing and is IP67 rated for weather resistance, making it perfect for off-road and harsh environments. Four 30A outputs and four 15A outputs with resettable fuses ensure quick troubleshooting and minimal downtime.

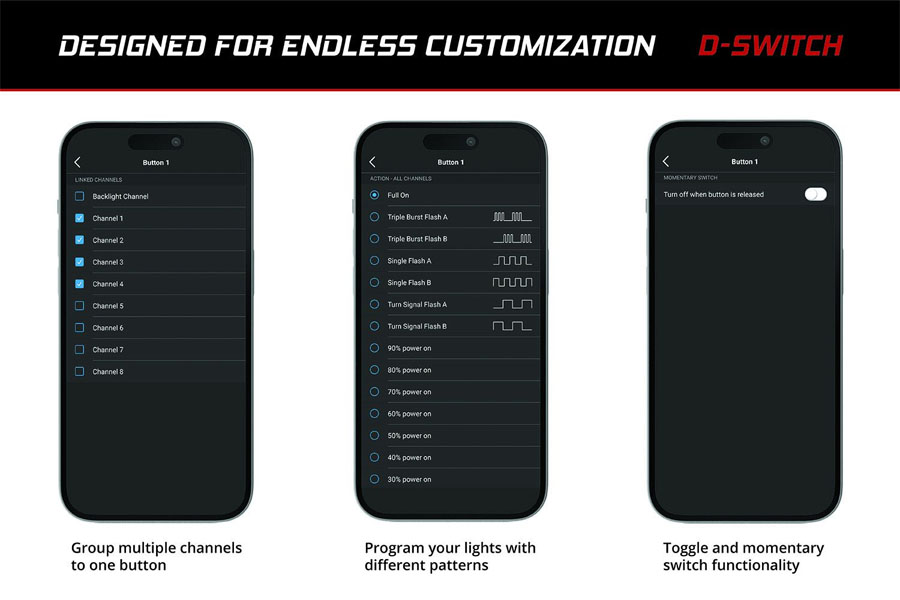

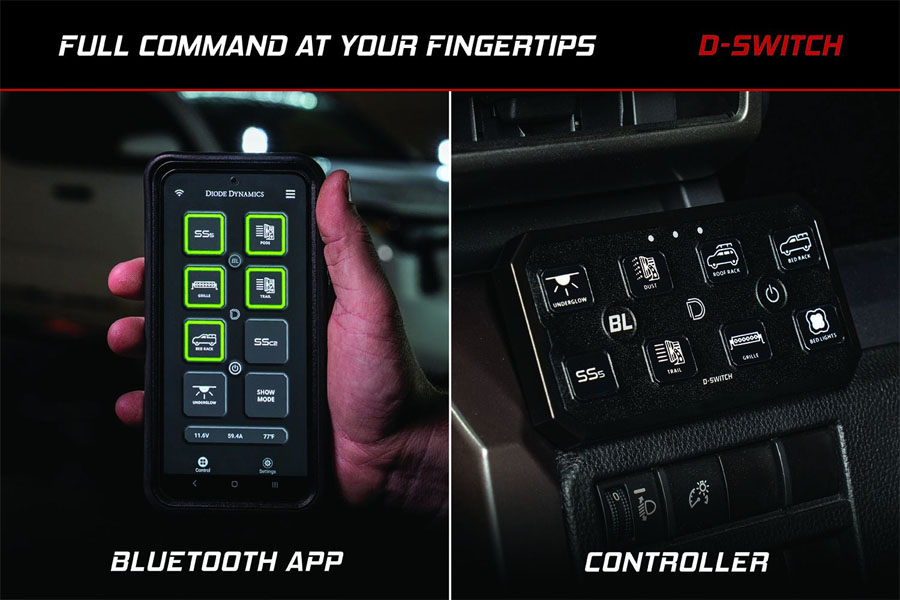

Fast, Responsive Bluetooth App. Say goodbye to laggy, outdated switch controllers. The D-Switch app for iOS and Android delivers instant response and easy programming with no loading screens or connection delays. Configure strobe patterns, dimming levels, and wig-wag functions per channel to achieve thousands of lighting effects—all at your fingertips.

OEM-Style Integration. The D-Switch includes three trigger wires for seamless integration with your vehicle’s factory functions, allowing automatic activation based on ignition, high beams, or other inputs. A dedicated Night Mode sensor adjusts the brightness of the switch panel for a factory-like appearance when driving at night.

Universal Fit, Easy Install. The D-Switch is designed for quick, straightforward installation with a universal mounting bracket for the controller and integrated mounting tabs on the hub. With a compact controller (5.06” x 2.66” x 0.45”) and a rugged hub (8.33” x 6.26” x 1.79”), it fits cleanly into any build. The included 10AWG battery cable (36"), 22AWG sensor wires, and 26AWG controller cable (3m) provide everything needed for a professional installation.

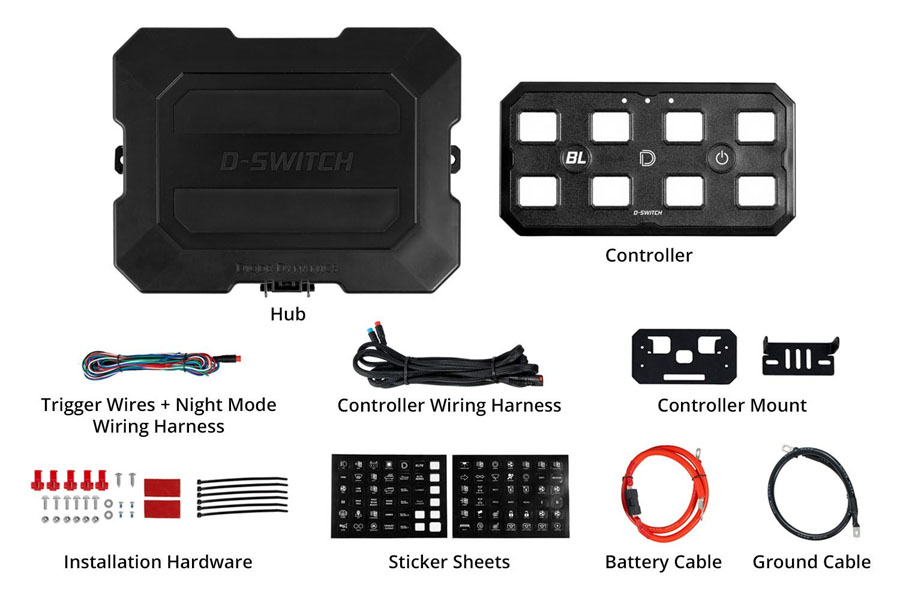

Includes:
