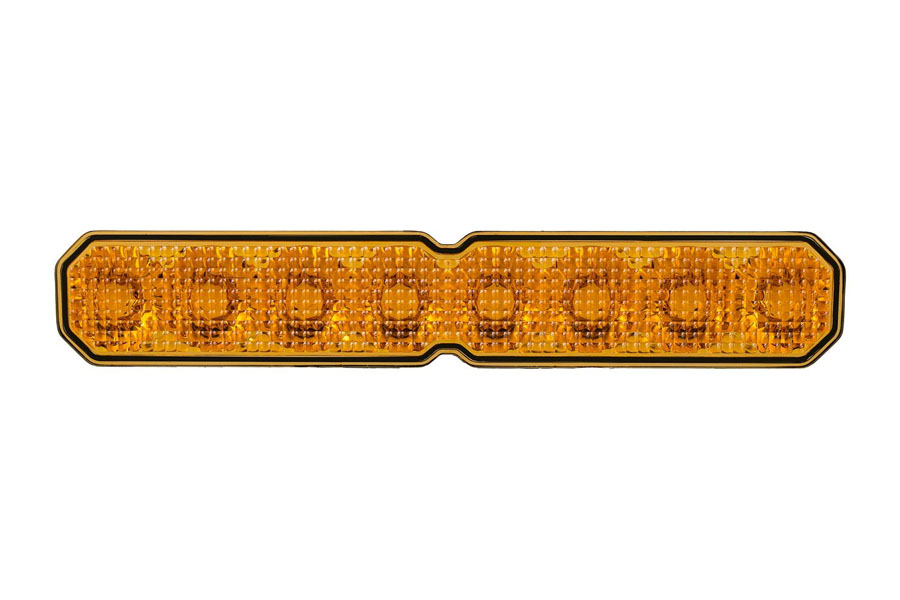

Diode Dynamics SS10+ Replacement LED Light Bar Lens, Flood - Yellow

Features

This lens is a direct replacement for the original lenses in your Stage Series LED Light Bars. It can be used to change both the color and output pattern, with a quick swap! Made of durable optical-grade polycarbonate, each lens comes with an integrated o-ring to maintain a watertight seal.

Colors. Stage Series LED Light Bars use the same high-output Cool White LED chips for both white and yellow configurations. This means changing your optic and color is just a simple lens swap away. No need to worry about color variation when switching from yellow to white!

You might be wondering - if you have a multicolor backlight, how does that work with a yellow lens? Don’t worry. Diode Dynamics engineers included a small toggle switch on each circuit board. When swapping out a lens, you can configure that section to be either white or yellow, which will ensure the backlight functions according to the selected lens color.

Easy Swap. Changing the lenses on the Stage Series LED Light Bars takes just a few minutes! Remove the silver torx-head screws from the back frame, pull the old lens and o-ring assembly out, and put in your new lens, which comes with the o-ring preinstalled. Take care not to touch the inner optical surface of your new lens during the swap, or wear a pair of gloves to keep things clean. The locating pins ensure correct alignment and rotation. Reinstall the torx-head screws so they are very hand-tight, and you are ready to shine in your new color or beam pattern!

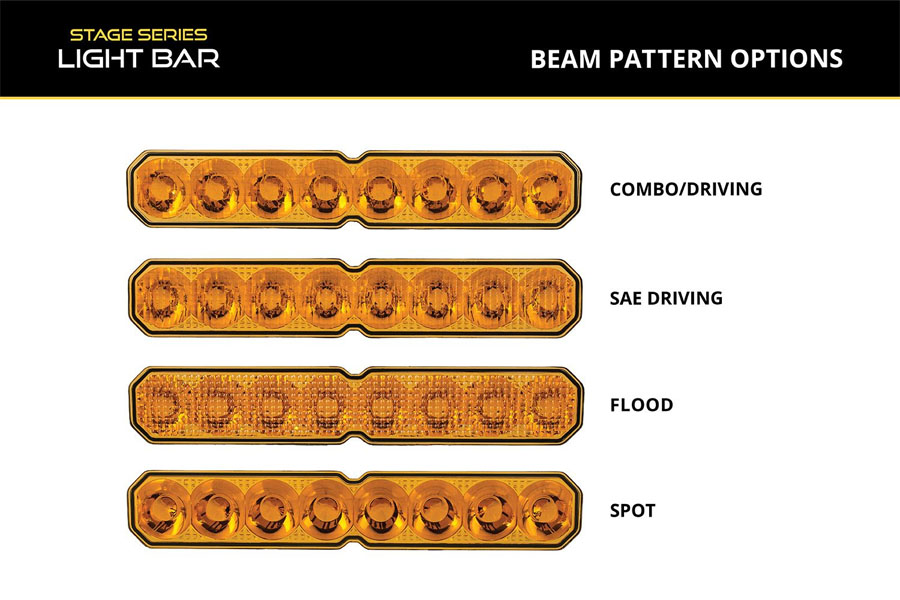

Choose Your Beam Pattern. Each Stage Series beam pattern has been carefully designed to perform in real-world conditions.

Flood pattern provides a uniform, even illumination with a broad 100x80 degree spread of light. Unlike generic "flood" lights that are simply a heavily diffused spotlight, Diode Dynamics flood pattern uses advanced pillow optics on the outer lens surface, to provide a true optically-designed spread, for smooth, even illumination throughout. It is perfect to use as a backup light, for lighting up anything at low speeds, or for trailers, campsites, and work areas.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. They directly manufacture and engineer their own products in the United States using globally sourced materials, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, they pride themselves in offering only the best possible LED solutions.

Installation:

Changing the main lens in the Stage Series LED Light Bar takes just a few minutes! Take care not to touch the inner optical surface of your new lens during the swap, or wear a pair of gloves to keep things clean.

1. Remove the silver torx-head screws from the back frame.
2. Pull the old lens and o-ring assembly out.
3. Put in your new lens, which comes with the o-ring preinstalled. DO NOT remove the o-ring from the lens. You will find small pins which align the lens in the correct orientation. If the lens does not drop into place, make sure alignment is correct.
4. Reinstall the silver screws so they are very hand-tight.

NOTE: Each lens is a direct replacement for a single section of your Stage Series LED Light Bar. Please confirm the number of lenses you’ll need before ordering.
