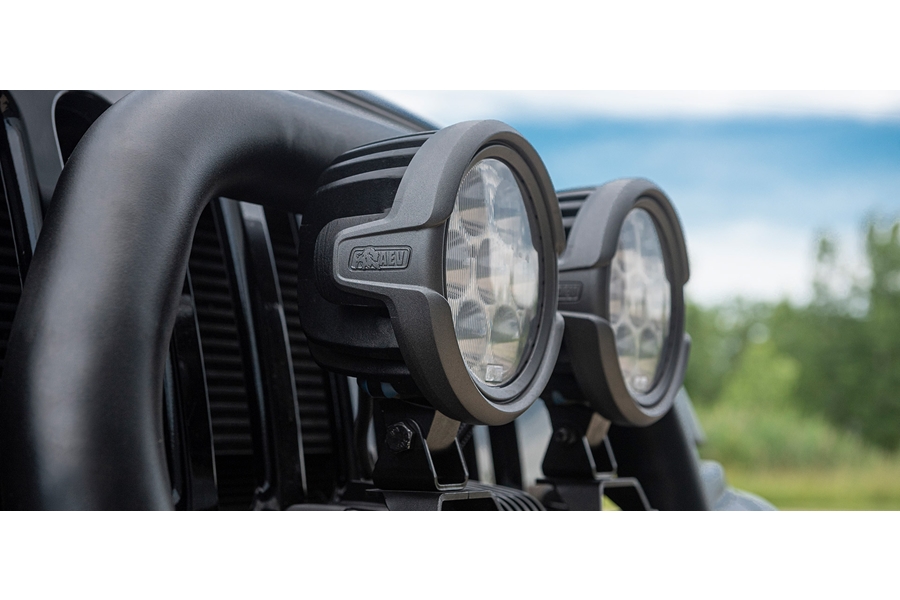

AEV 7000 Series LED Off Road Light Kit

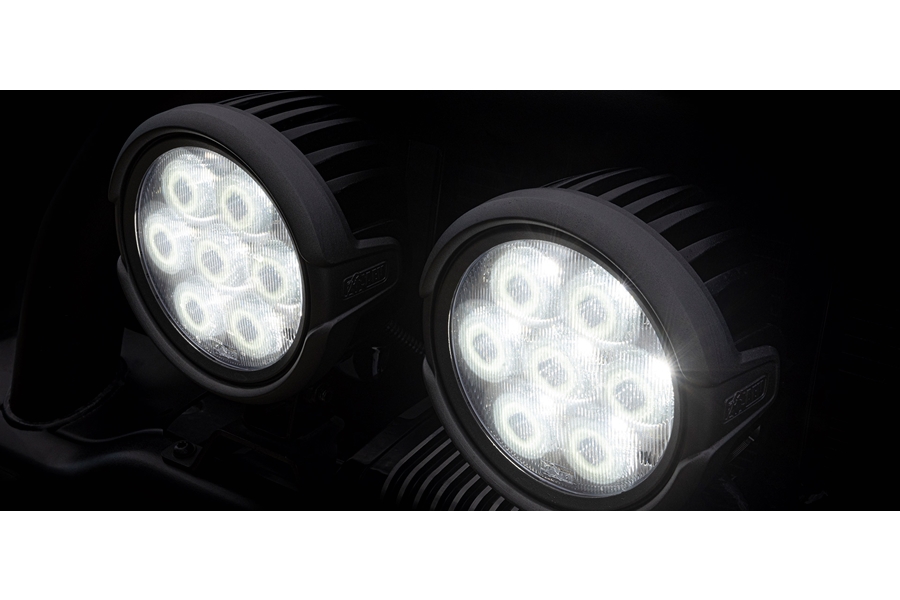

AEV ‘s 7000 Series LED Off-Road Light Kit utilizes the very latest in high performance LED lighting technology to provide an amazing 8,000 eLumen (effective lumen) output. Designed with the overland traveler in mind, these 7” lights feature a hybrid beam pattern to safely illuminate the road ahead as well as the shoulder – something that is particularly important when traveling through remote areas with active wildlife.

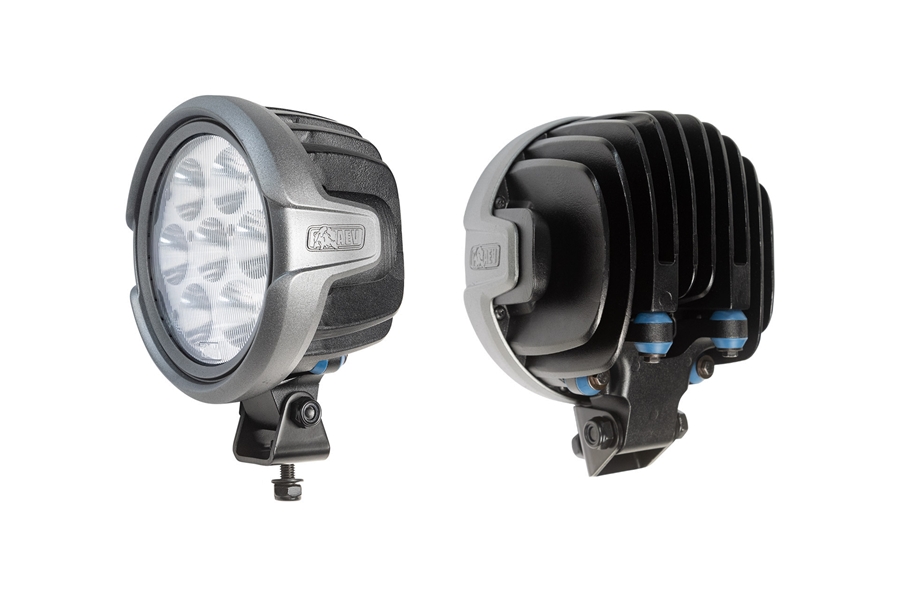

The 7000 Series LED Light uses a robust cast aluminum housing with exclusive vibration reducing mounting brackets for lasting durability in any environment and on any terrain. Additionally, these lights feature an IP69K rating, which is the highest rating possible for protecting against water and dust intrusion. Each kit is sold complete with a pair of 7000 series lights, universal mounting brackets, weatherproof wiring harness and solid light covers featuring the AEV Bison logo.

7000 Series Features:

• Cast aluminum housing and bezel
• Specialized Lexan 123R lens
• Shock tested for maximum durability
• IP69K rating
• Vibration isolating bracket
• Tested for EMC interference – meets CISPR 25 Edition 3
• Integrated thermal and voltage protection
• Universal mounting brackets
• Universal wiring harness w/ switch, weatherproof relay and weatherproof fuse holder
• Deutsch DT06-2S connectors
• 5-year warranty on electrical components
• Lifetime warranty on housing
• Assembled in the USA

7000 SERIES TECH SPECS:

• 9,900 raw lumens
• 8,000 effective lumens
• 12v voltage spectrum
• 92 watts of power
• 7.9A @ 12v (Pair)
• Operating temp -40°c to 75°c
• 5700K color temperature
• 178mm (7” diameter)

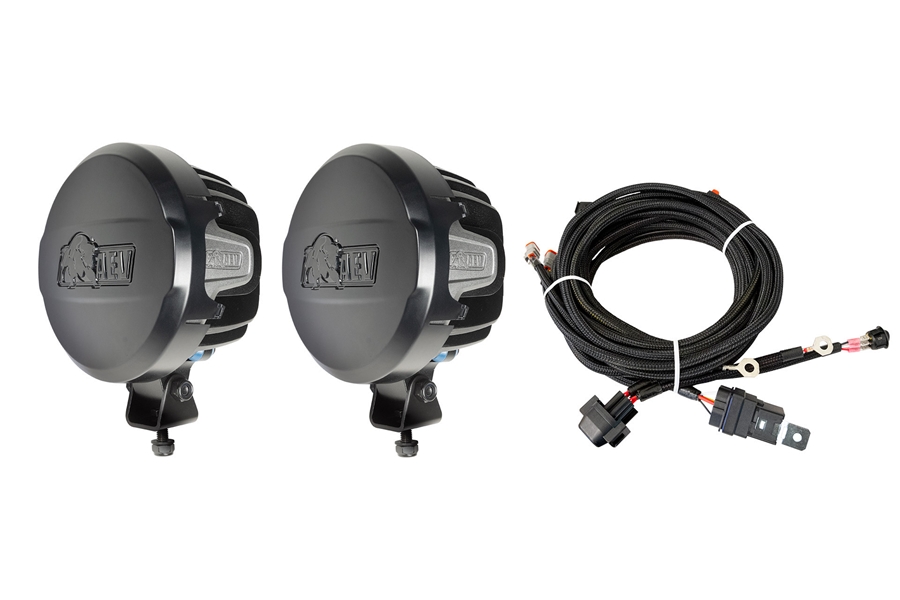

UNIVERSAL LIGHT KIT INCLUDES:

• (2) AEV logo solid light covers
• (2) Universal light brackets
• (2) 7000 series LED lights
• (1) Universal wiring harness

*Note: Never turn these lights on with the solid light covers installed. These lights will melt the covers,  potentially causing serious damage to the light itself.
