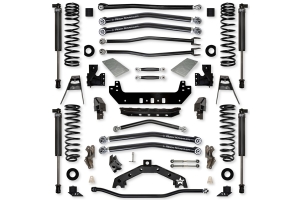

Rock Krawler 3.5in Adventure-X 'No Limits' Long Arm Stage 1 Lift Kit - JL 392 Only

Rock Krawler 3.5in Adventure-X 'No Limits' Long Arm Stage 1 Lift Kit

JL 392 Only

Rock Krawler 3.5in Adventure-X 'No Limits' Long Arm Stage 1 Lift Kit - JL 392 Only
This item is no longer available.
ANY QUESTIONS?

Product Resources

Features & Product Details

The Rock Krawler 3.5 Adventure-X System is the ultimate in compromise between daily driver/hard core off-roader AND is now specifically designed for the the 392 Platform. We achieve this by adding 392 specific Triple Rate Coil springs that achieve 3.5 inches of lift height over the FACTORY 1" lift height. What this means: The springs are a heavier rate to account for the massive 392 cubic inch, V8 engine and give you a ride height that achieves a balanced, functional lift system. The Rock Krawler No Limits systems feature our No limits front sway bar links that allow Rubicon owners to utilize the factory Rubicon sway bar disconnect feature and still achieve full articulation.

The Adventure-X systems combine the benefits of a full high clearance 4 link front suspension with a high clearance independent 3 link rear suspension. This is where conventional on road handling meets bad a$$ off-road ability. The rear system uses our tried and true independent 3 link conversion with X2 rear suspension geometry with enhanced rear instant center(s) and rear roll center(s). The new high clearance axle mounts provide 4.5 inches of ground clearance under the rear axle as compared to stock. The rear upper shock relocation brackets ensure you do not lose any shock or suspension travel. The combination of a full high clearance 4 link long arm front suspension and high clearance independent 3 link rear long arm suspension lets you dominate the streets and the trails.

System Benefits

  • Excellent Highway Ride
  • Improved Off-Road Ability
  • Full High Clearance Design
  • High Clearance 4 Link Long Arm Front Suspension
  • High Clearance Independent 3 Link Long Arm Rear Suspension
  • Weld on Long Arm Mounting Brackets with Weld Scheduling just like OEM
  • Heat Shield thermal barrier products, just like OEM to protect the front control arm joints at the frame
  • 4.5" Rear Clearance Gain from the X2 Axle Bracket System
  • Adjustable Rear Anti-Squat Featuring X2 Geometry
  • Designed to be the Ultimate Compromise between On Highway Handling and Hard Core Off-Road Ability
  • Tire Fitment:
    Rubicon with Full OEM Fenders
    37"/38" Tall Tires (3" Bump Stop Height Recommended)
    Rubicon with Trimmed or High Lined OEM Fenders
    40" Tall Tires (3" Bump Stop Height Recommended)

    Wheel Fitment:
    Rubicon Fitment Recommendations
    37" Tall Tires – Recommend 4.5" of Backspacing
    40" Tall Tires – Recommend 3.5" of Backspacing

    Shock Notes:
    Generic Front Shock Length – 18-19" Collapsed/ 30" Maximum Extended
    Generic Rear Shock Length - 20-21" Collapsed/ 32” Maximum Extended

    General Notes:

    *All lift heights based on Rubicon 392 models for standard style build (i.e., front bumper and winch, rear bumper and full-size spare).

    *If building with a spare delete, we recommend dropping 1” in coil lift height for the rear.

    *If building an overland or heavily upfitted build in the back, we recommend upsizing 1” in coil lift height for the rear.

    *Recommend a new front C.V. driveshaft for all front shocks with max. extended length greater than 29"

    *Requires welding of the Front and Rear Long Arm Mounts

    *Requires removal of the OEM frame side lower front and rear control arm mounts

    *Requires removal of the OEM frame side front and rear upper control arm mounts

    *Requires removal of the OEM axle side rear lower control arm and track bar mounts

    *Requires modifying the OEM rear shock mounts and welding of the raised rear upper shock mounts

    *Recommend installing limiting straps to avoid over extension of suspension components after vehicle is all set up

    Specifications

    Brand: Rock Krawler
    Kit Package: Yes
    Mfgr. Warranty: See Individual Parts
    Condition: New Product
    Return Policy:
    Standard
