Artec Industries Bellypan Skid Plate, Aluminum

JL 4Dr 2018-20 3.6L

This item is no longer available.

Set your vehicle to confirm fitment

Any Questions?
Chat with an expert!

ANY QUESTIONS?

Authorized
Dealer

Product Resources

Fitment Details

Features & Product Details

Check out our full how-to installation article on Northridge Nation: Jeep ARTEC Bellypan Install

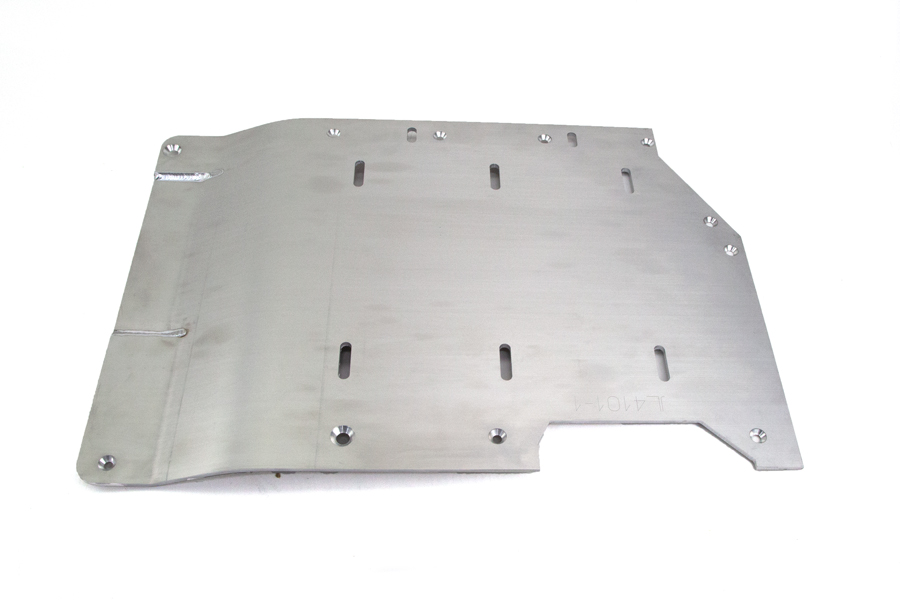

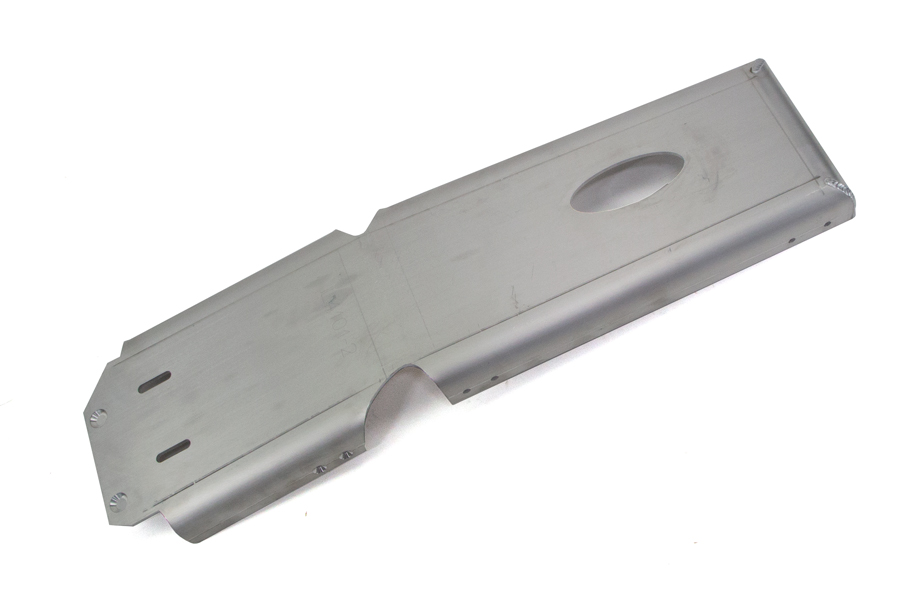

Artec Industries' NEW JL Bellypan is designed to give your 2018-2020 Jeep JLU Wrangler full protection underneath the vehicle. Designed using CAD files directly from the manufacturer, this belly pan skid plate ensures thatyou have a great fit with factory components. Made from 1/4" thick 6061 Aluminum and 3/16" zinc plated Steel, and CNC cut and formed, the Artec JL Bellypan Kit offers both a strong and lightweight solution for your new Jeep JL

Adds only 10 lbs to net weight of vehicle yet covers far more and is heavier duty than factory skids

86 lbs total weight compared to the Steel version at 153 lbs...a 44% weight savings

Increases ground clearance of 3/4" from factory skids and even more compared to other aftermarket skid plates

1/4" 6061 Aluminum for skid plates, 3/16" zinc plated steel brackets

Designed from factory CAD files for great and ultra precise fit.

CNC laser cut and CNC formed using custom rolled dies for high strength, unique look, and perfect contour fitment to OEM components.

All bolts under skid plate are countersunk for absolutely smooth bottom

All nuts are pressed into steel brackets for easy, one tool removal

Bolts directly to OEM T-case crossmember and frame using heavy duty flat head bolts that match OEM thread

No need for an aftermarket T-case crossmember for completely flat surface

Modular design lets you take off only one section for vehicle servicing

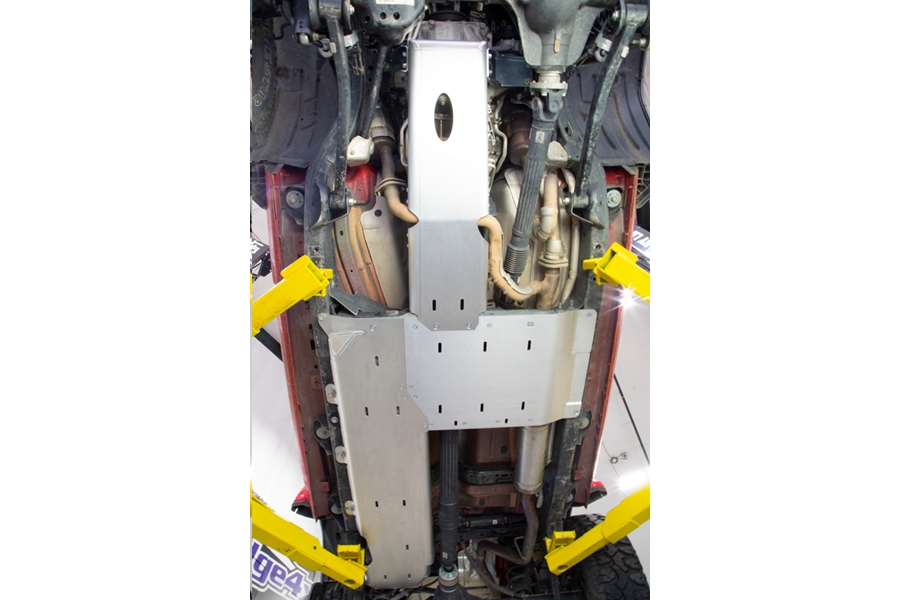

Protects Oil Pan, Transmission Pan, Gas Tank, Front Exhaust and Transfer Case

OEM gas tank skid is replaced for reduced weight and 3/4" higher clearance*

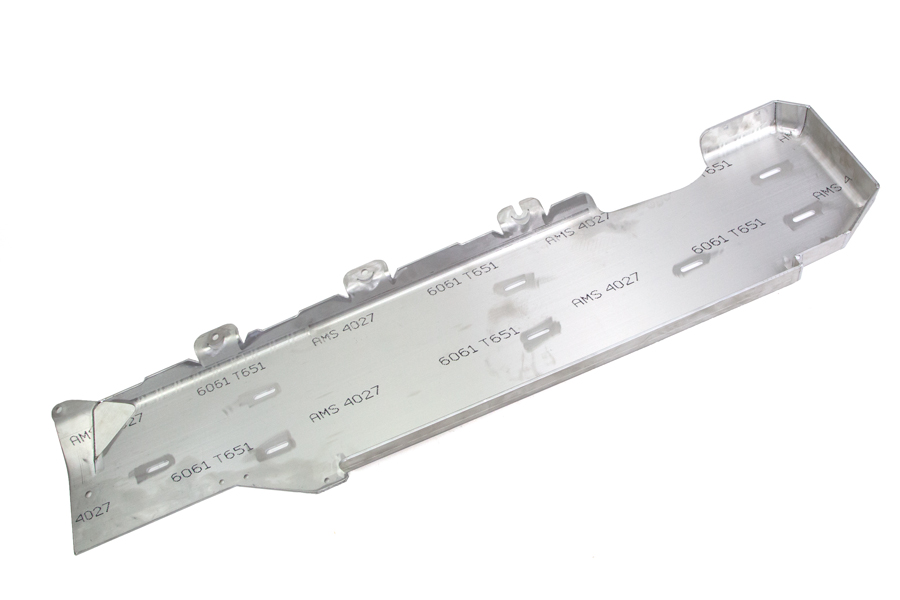

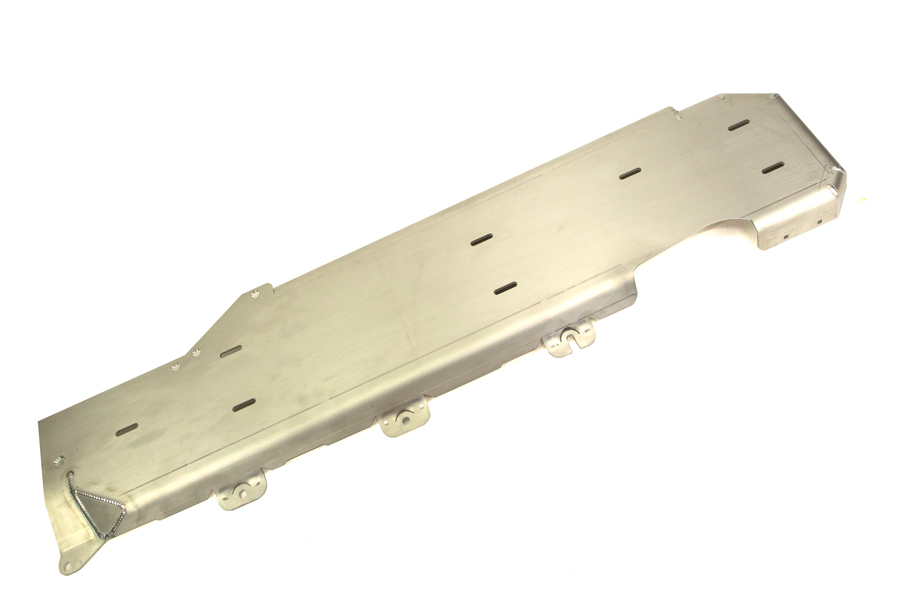

Artec Gas tank skid can be removed without dropping entire tank thanks to new additional cross-member and tank strap.

Clearance near rear drive yoke shaft to prevent rubbing

NOTE: 1.5"+ LIFT REQUIRED FOR USE WITH BELLYPAN

*Due to mid model year changes from Jeep, early model 2018's have a different fuel tank then mid 2018-current. If you have an early model 2018, please call or email us so we can make sure to get the correct fuel skid for your application on the order before it ships.

*OEM gas tank skid removal required. For easiest install, remove skid when tank is near empty. See instructions for simple ideas on removing OEM gas tank skid.

NOTE: This product requires general mechanics skills and should only be installed by someone capable of using basic tools. Artec Industries is not responsible for incorrect installation. By purchasing, the customer agrees that they are fully responsible for correct installation.
