- Package Deals
- Lighting Package Deals >Baja Designs Light and Harness Package
Baja Designs Light and Harness Package
Features & Product Details
Baja Designs LED Lights
Upgrade your Jeep or 4x4 with our Baja Designs Light & Harness Package which offers modern styling, performance and some of the most advanced LED technologies avaliable! Whether you're looking to upgrade visibility for night time trail rides, improved visibility through inclement weather, trail dust and more, Baja Designs has got you covered. Whether you opt for the 8" LP9's which offer up to an impressive 12,547 total lumens and provide an incredible 200 degree spread of usable light, or the 6" LP6's which provide up to 11,225 total lumens with a 200 degree spread of light we also offer the 3" Squadron series which are powerfully compact light pods which push out up to 4,095 lumens, the Squadrons provide auxiliary lighting that fits just about anywhere thanks to its compact size.
Our Baja Designs Light & Harness package gives you the choice between Spot beam which provides a tight light spread that is perfect for visibility at greater distances or the Driving/Combo beam which is excellent for those who want maximum trail or road coverage with both a 42 degree driving light and an 8 degree spot light to provide the perfect blend of incredible visibility!
All of the Baja Designs Lights offered in this package are waterproof, feature replaceable lenses and offer a 5000k Daylight color temperature for less driver fatigue!
Baja Designs Wiring Harness
Included in this package is a wiring harness for your Baja Designs lights. The wiring harness from Baja Designs allows for fast and easy installation and control over your Baja Designs lights. Dont stress with a complicated wiring process, get your lights easily installed and powered up with a Baja Designs Wiring Harness.
Our Squadron Pro packs 4,900 Lumens at 40 watts that will truly annihilate the night. Don’t let this light fool you, although compact in size this LED auxiliary light will literally blind you with brightness. The Pro comes equipped with a sleek black gloss aluminum housing and outshines the competition through both appearance and performance. An industry first 30-Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
Features
Specifications:
Includes:
Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Driving (42°) and spot (9°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)
Enjoy 4,900 lumens utilizing 4 Cree LEDs! The Squadron-R Pro’s light weight and powerful capabilities make it the ideal companion for all your late-night off-roading adventures! Relish high-performance and durability with nearly 50,000 hours of auxiliary LED light, optimized for a more traditional LED experience and aftermarket bumper featuring a 4” round hole. As always, Baja Designs offers a 30-Day Satisfaction Guarantee & Limited Lifetime Warranty.
Specifications:
Lumens: 4,900 Utilizing 4 Cree LEDs
Wattage/Amps: 40W / 2.90A
Dimensions: 3.5" x 2.77" x 3.5"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Hard Anodized & Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
Includes:

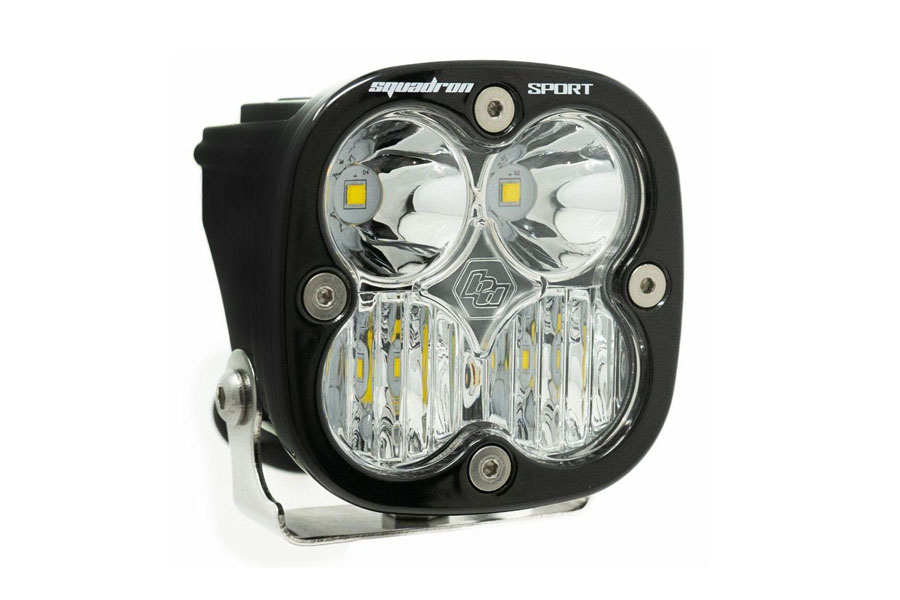

The Squadron® Sport is hands down the best $119.95 LED on the market today. Although similar in aesthetics to the Squadron® Pro, the application for the Sport varies. The Squadron® Sport utilizes 4 LEDs producing an impressive 2,260 lumens at 20 watts making it ideal for near field, side/backup and scene lighting application. An industry first 30-Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.
Specifications:
Lumens: 2,260 Utilizing 4 LEDs
Wattage/Amps: 20W / 1.4A
Dimensions: 3.07" x 2.77" x 3.07"
Weight: 12 ounces
LED Life Expectancy: 49,930 Hours
Front Lens: Hard Coated Polycarbonate
Housing: Powder Coated Cast Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof, Submersible to 9ft)
IK10 Compliant (Mechanical Impact Testing)
Includes:
A design that was inspired by Baja Designs’ legendary 8" La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.
The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200° spread of usable light.
The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high-power mode, the LP9 will fulfill all your lighting needs.
The Racer Edition features uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Features
Specifications
Pattern
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
A design that was inspired by Baja Designs’ legendary 8" La Paz HID; The LP9 features modern styling and performance, with some of the most advanced LED technologies available today.
The LP9 utilizes 9 forward projecting LEDS to produce 11,025 Lumens at 105 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 1,140 lumens at 10.5 watts per side. The IPT provides an incredible 200° spread of usable light.
The housing was designed to provide exceptional heat dispersion by using Direct Ducted Cooling, which allows air to travel from the front of the housing to the rear. With a day-time running light, low, and high-power mode, the LP9 will fulfill all your lighting needs.
Available in a standard model that is perfect for a wide range of off-road use, as well as a Racer Edition configuration that is designed for the demands of high speed driving. The Racer Edition has similar power draw, but produces a much tighter pattern, providing higher visibility at greater distances. Both models feature uService technology, which allows customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Specifications:
Forward Projecting Lumens: 11,025 Utilizing 9 LEDs
Forward Projecting Wattage/Amps: 105W / 7.6A
IPT Lumens: 2,280 Utilizing 6 LEDs
IPT Wattage/Amps: 21W / 1.52A
Dimensions: 8" Diameter/ 3.25" Depth
Weight: 6.5lbs
LED Life Expectancy: 49,930 Hours
Front Lens: Hardcoated Polycarbonate
Housing: Hard Anodized Machined Aluminum
Bezel: Billet Machined Aluminum
Hardware & Bracket Material: Stainless Steel
Exceeds MIL-STD810G (Mil-Spec Testing)
Built-In Overvoltage Protection
IP69K (Waterproof up to 9ft & Pressure Washable)
IK10 Compliant (Mechanical Impact Testing)
The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200° spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.
With an amber day-time running light, low power, and high-power mode, the LP6 will fulfill all your lighting needs.
Baja Designs Features:
Satisfactions Guarantee – 30 Day Money Back
Guarantee
Limited Lifetime Warranty – Complete Purchase Protection
uService – Replaceable Lenses and Optics
ClearView – All The Light, Right Where You Need It.
MoistureBlock – Waterproof, Rain Proof, Submersible
CopperDrive – Only LED Driven At 100%
5000K Daylight – Less Driver Fatigue, Natural Color
Specifications:
Patterns:
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200° spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.
With an amber day-time running light, low power, and high-power mode, the LP6 will fulfill all your lighting needs.
Features
Specifications
The LP6 Pro is a 6-inch powerhouse featuring a total of 10,300 lumens and a 200° spread of useable LED light. The LP6 features 8,600 forward projecting lumens and 1,700 lumens of dedicated peripheral lighting courtesy of our patented Integrated Peripheral Technology (IPT).
To keep your light performing at its highest potential, the LP6 integrates our proprietary Direct Ducted Cooling (DDC) technology. This feature allows air to travel through the front of the housing, over the rear heat sinks - drastically improving cooling capacity and performance.
With an amber day-time running light, low power, and high-power mode, the LP6 will fulfill all your lighting needs.
Features
Specifications
Pattern:
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road. The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
The LP9 Sport is perfect for enthusiasts that want a full-size light with modern styling and advanced features. The Sport model still includes all the technology that makes the LP9 series so popular, from Direct Ducted Cooling - that keeps your light cool under stress - to the Integrated Peripheral Technology (IPT), which produces an incredible 200° spread of usable light.
The LP9 Sport utilizes 9 forward projecting LEDS to produce 6,500 Lumens at 61 watts, and 6 LEDs for Integrated Peripheral Technology (IPT) which produce 2,280 lumens at 21 watts.
As with all our LED offerings, this light features uService technology - allowing customers to change the lens pattern and color depending on driving conditions, or simply when they want to refresh the lens.
Note: The LP9 Sport is simple on/off (no hi/lo) and does not include the amber backlit feature.
Features
Specifications
Pattern:
Driving/Combo: Maximum trail coverage in a single light. The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)This universal 12v wiring harness is capable of powering up to 12 amps and has been specifically designed for our Fuego, PreRunner, LaPaz, Squadron and S2.
It includes an On/Off toggle button to provide power to the lights. This harness comes ready to power up to two (2) Baja Designs LED/HID lights, such as the S2 Pro.
Specifications
PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED
QUESTIONS & ANSWERS
This Part Fits
This item is non application specific.
Please verify compatibility before purchase. May require some modification for proper installation.
