Artec Industries Truss Easy 3 Link Kit

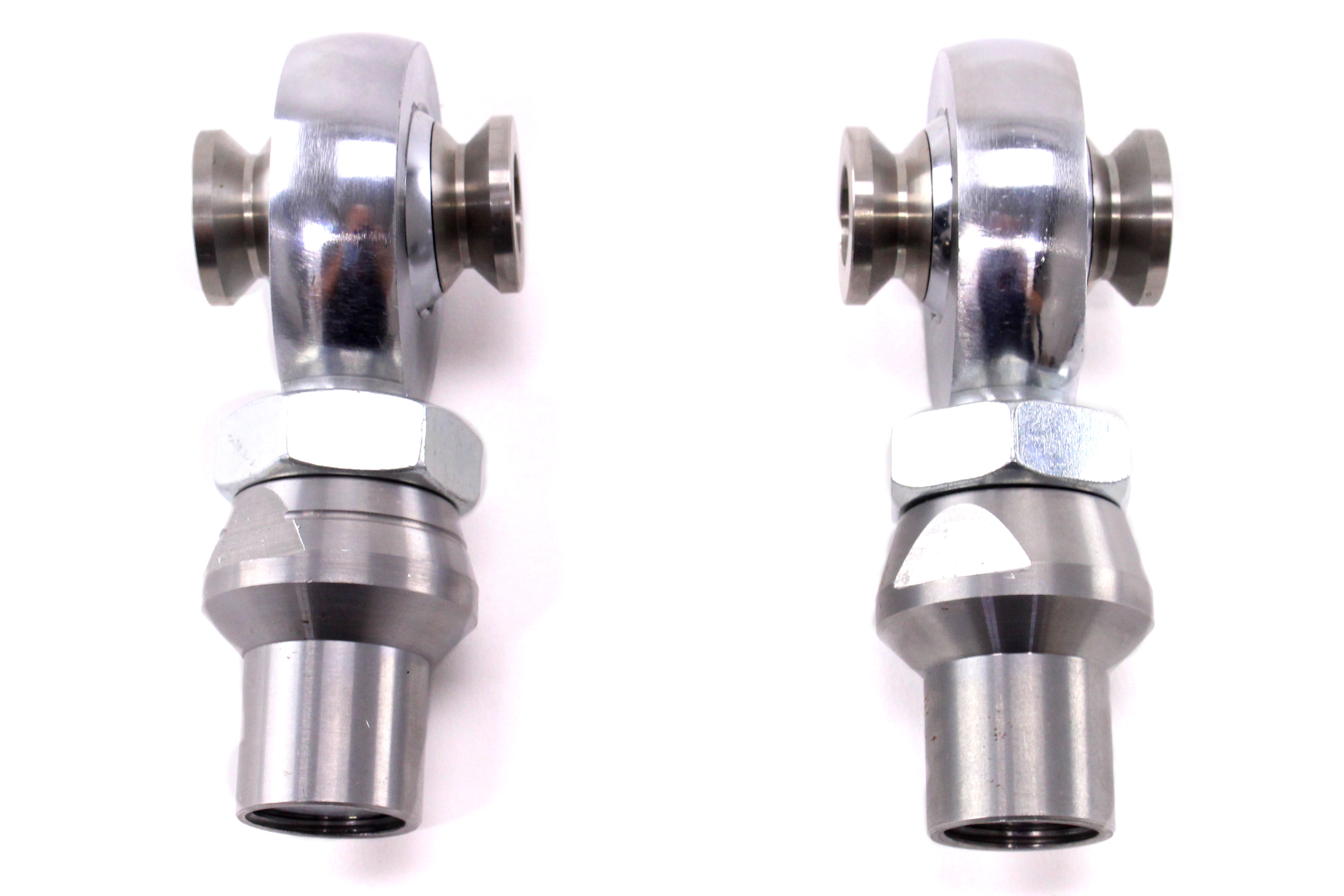

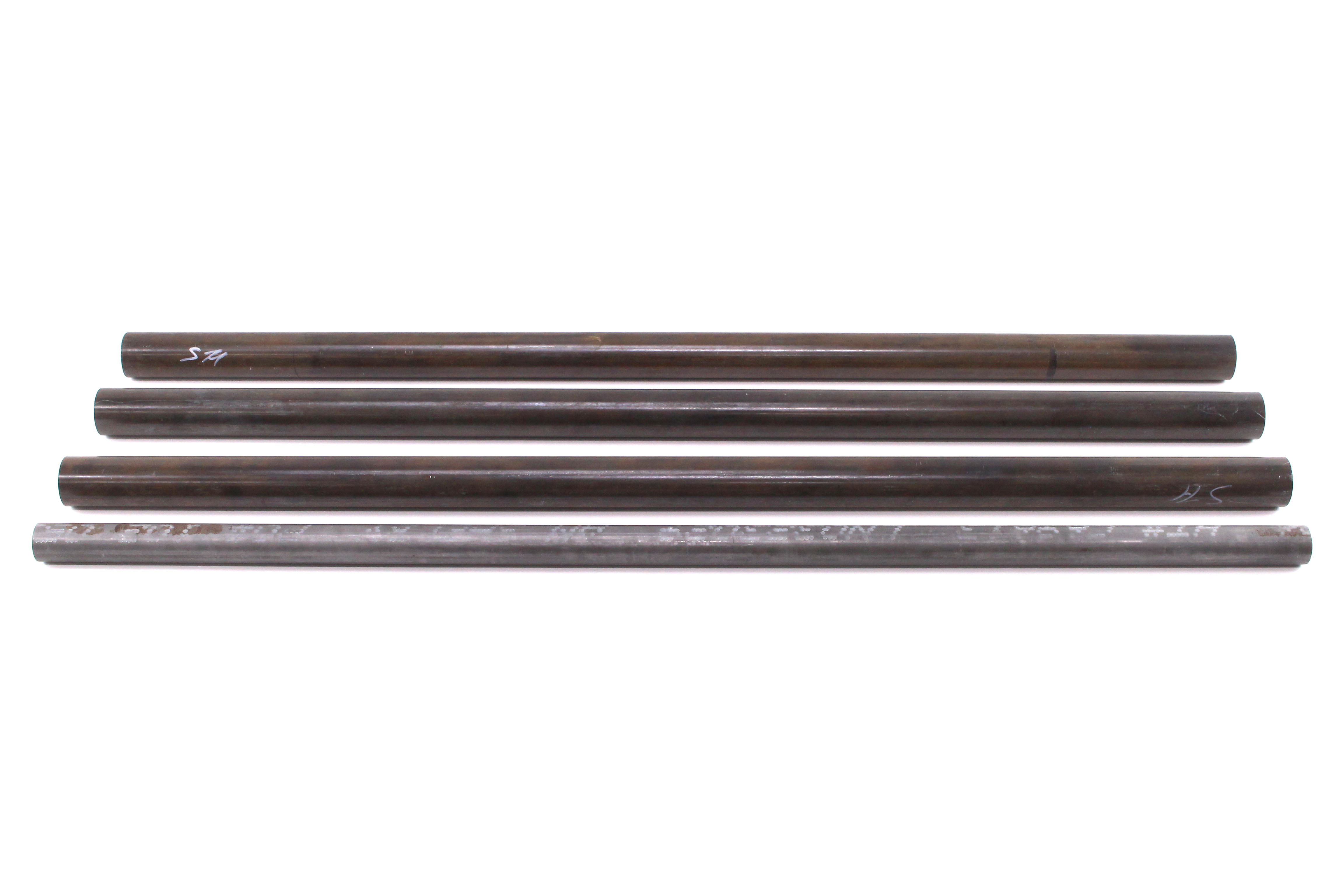

The simplest way to get your links done is with the EASY 3 LINK KIT G. The kit has been based on the customers popular 3-link that has a panhard bar. The link is intended to be used with the manufacturers 60 trusses. If you choose not to use a truss that you can select the KIT G. The rod ends are heat and cryogenically treated so they are the strongest and last the longest in the market. There are tube adapters included and they feature machined wrench flats that allow for easy adjustments and tightening so as to conform to the outer diameter of the tubing that it is welded to. It comes with stainless steel high misalignment spacers that usually allow for maximum articulation in the ends of the rods. There is an option where the kit offers 4 foot lengths of 1.5 inch and 2.0 inch tubing to be cut to the exact length of the particular car.

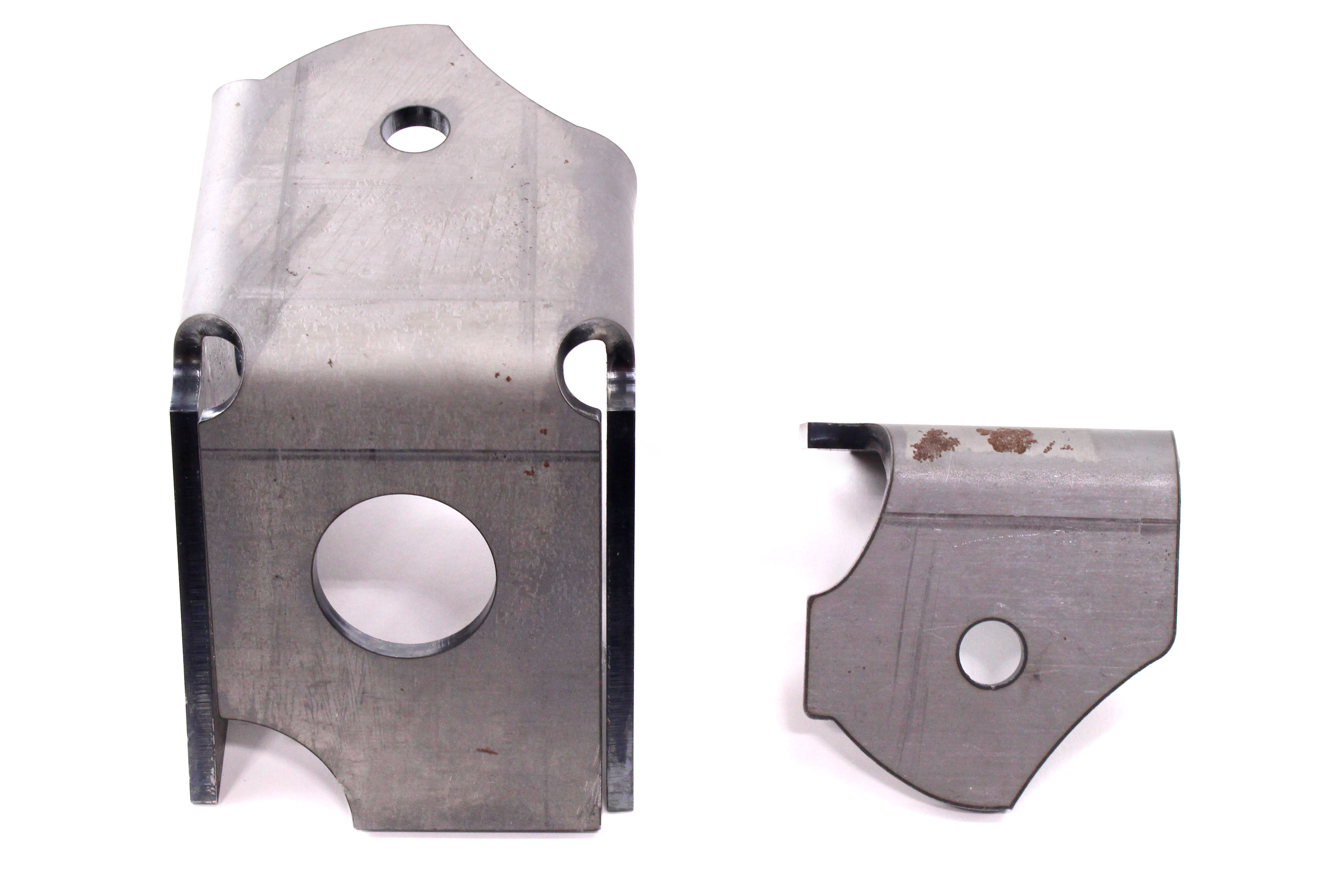

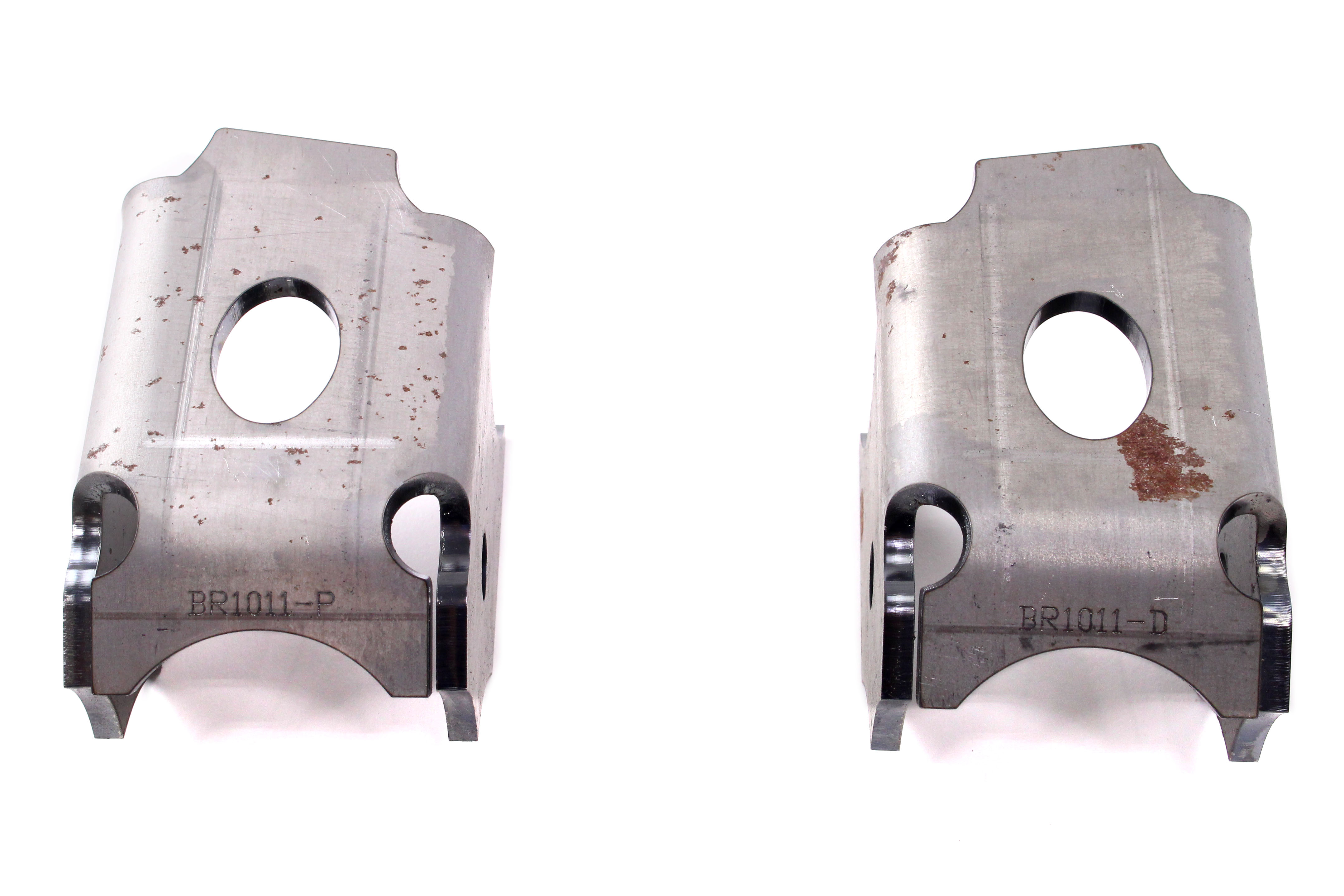

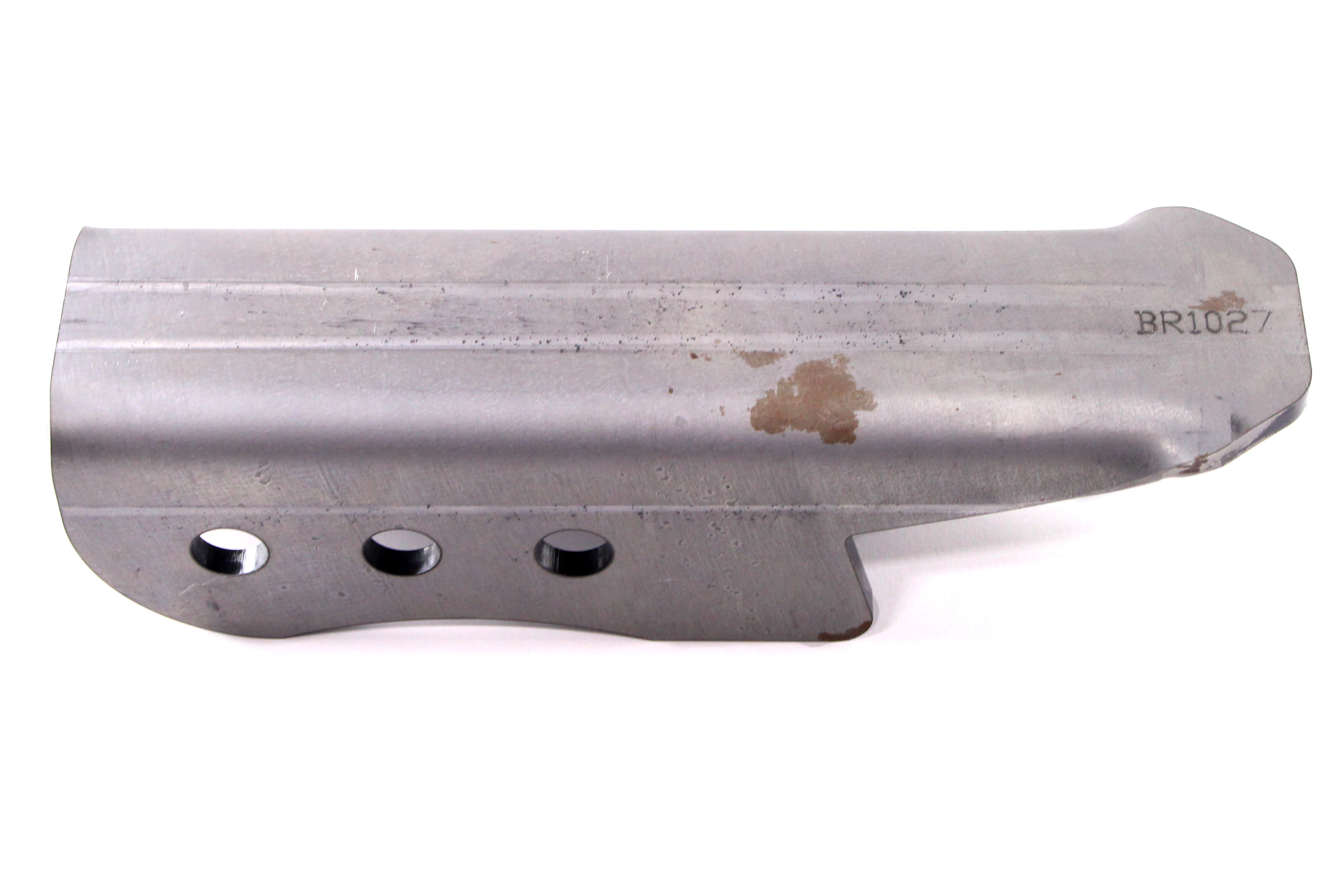

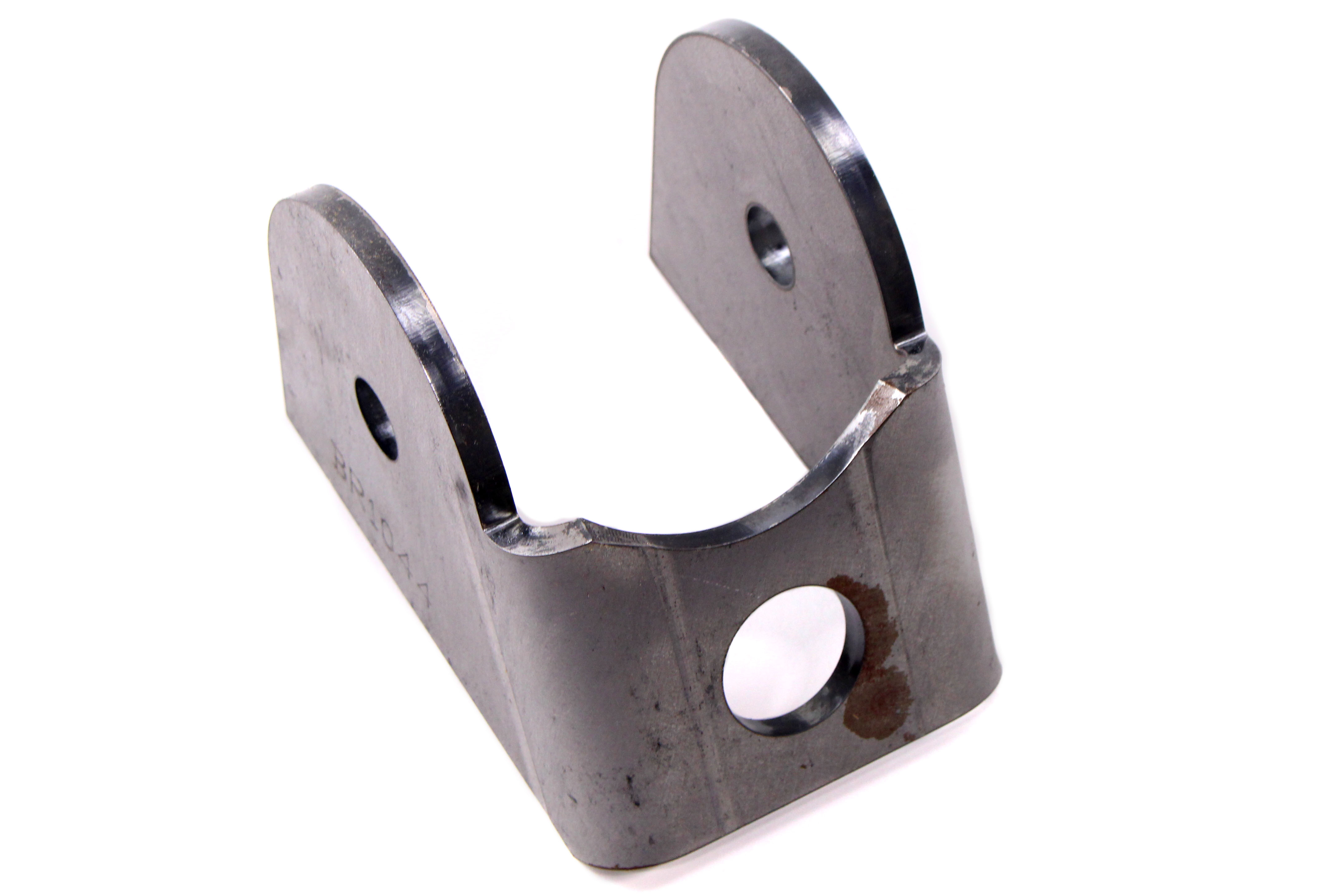

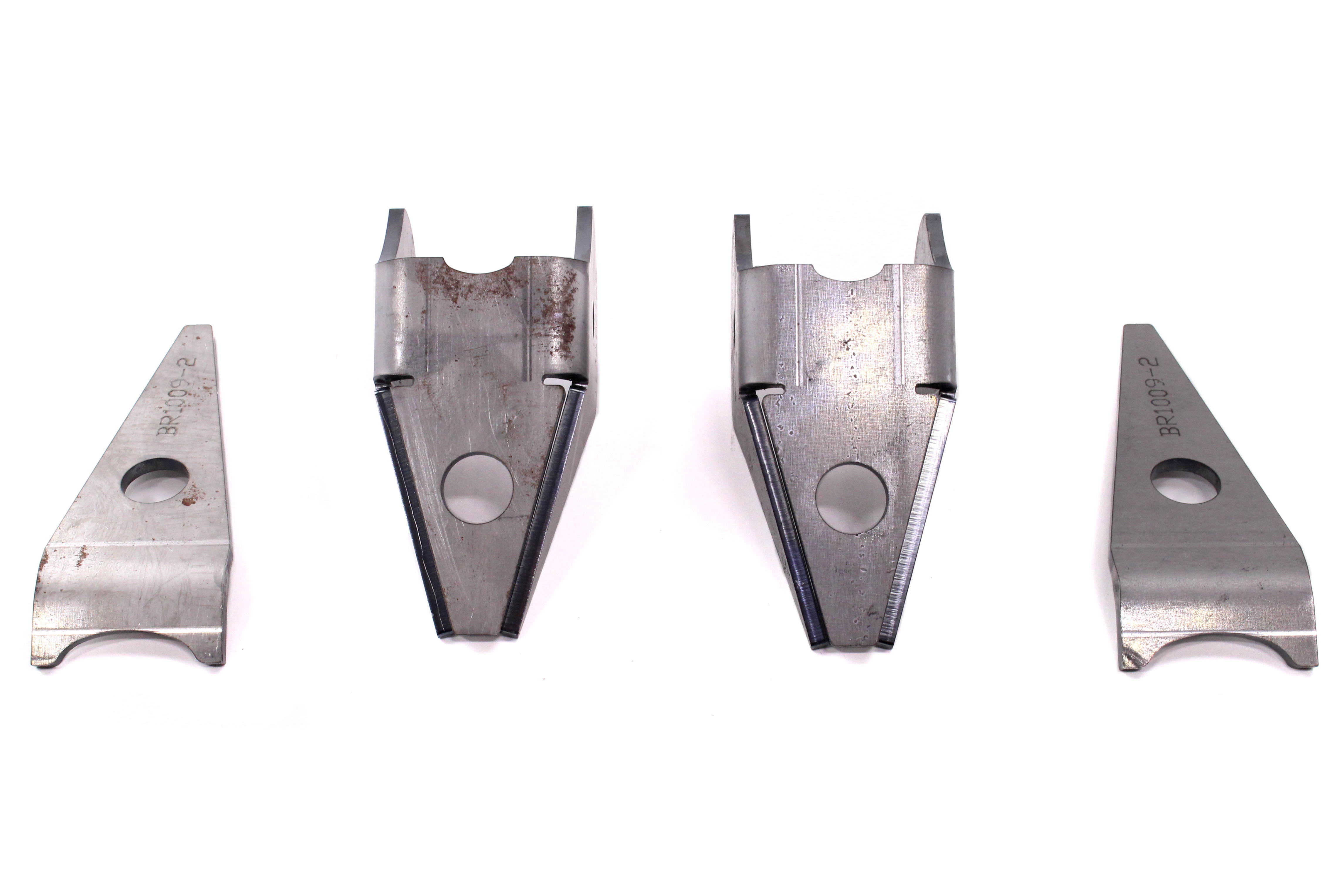

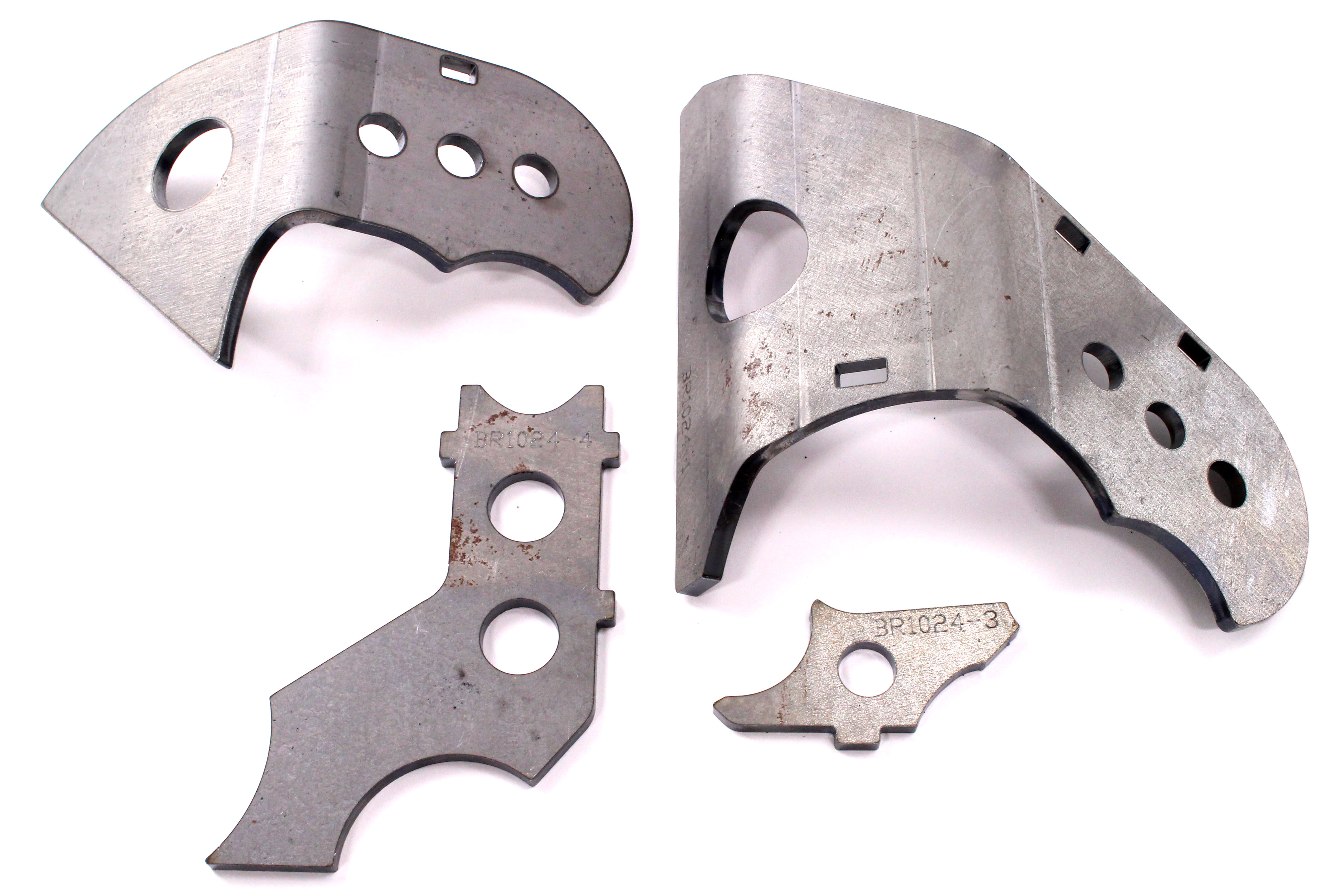

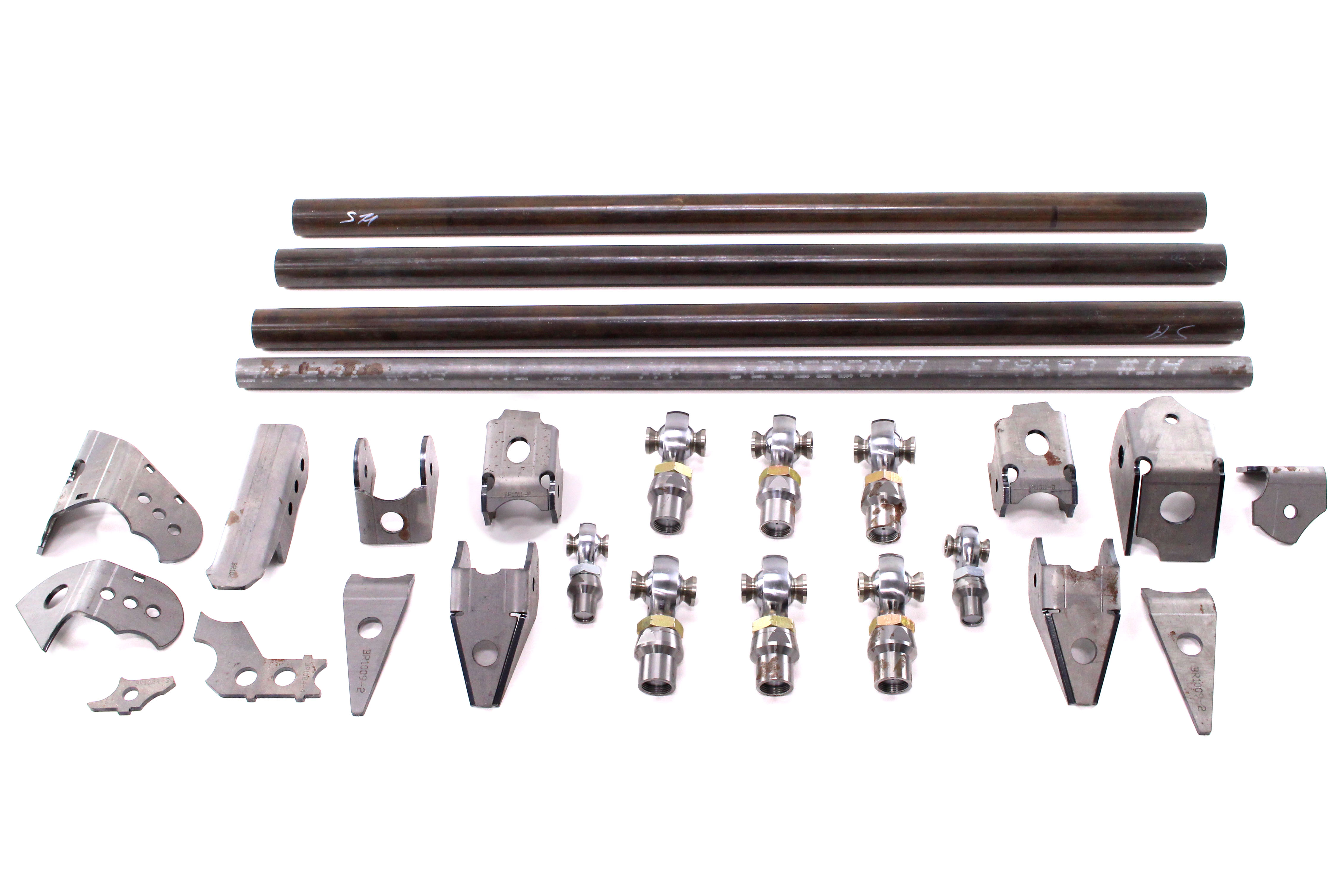

It comes with one RH bore rod ends for panhard. An RH tube adapters for panhard are included and a jam nut for panhard. It comes with high misalignment spacers. It has 3 RH bore rod heads and an equal number of tube adapters. It has two lower link frame brackets and a pair of lower link axle brackets. It comes with a single truss upper link mount that is 2.63 inches. It has one inner frame bracket and one adjustable panhard frame mount. It contains an adjustable panhard Truss Mount. It is important to note that you will require to drill lower link holes that are 3/4inches unless you want 9/16inch bolts.
