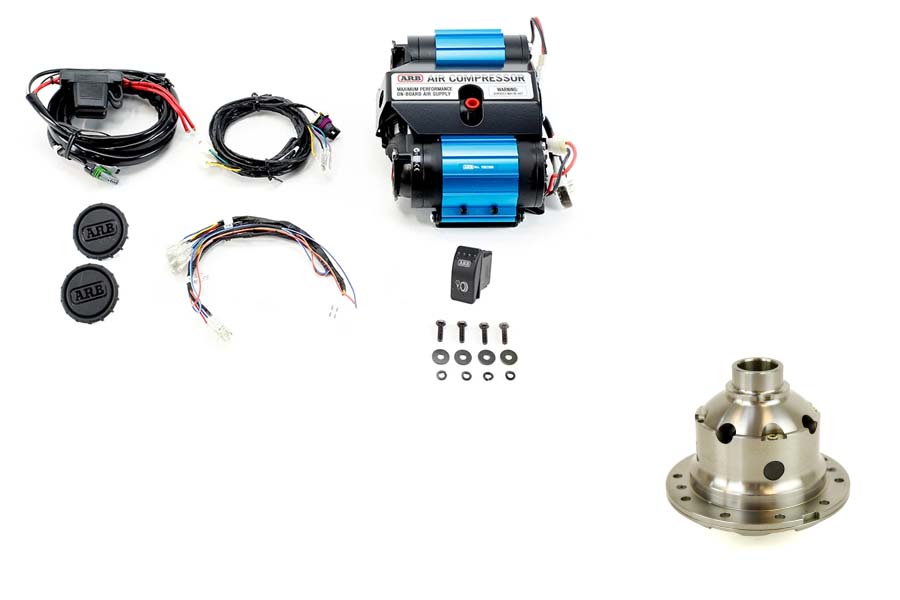

ARB Locker and Twin Air Compressor Package

All Sport JL Rear with Advantek M200 - Dana 35 axle use this locker - RD244.

All Sport JL Rear with Advantek M220 - Dana 44 axle use RD245

Easiest way to tell the difference:

Advantek M220 (D44) rear axle has drain plug on side

Advantek M200 (D35) rear axle has drain plug on bottom

All Sport JLs with manual transmission or LSD option get the M220 rear axle.

Not all automatic trans Sport JLs get the M220 (D44) rear.





Features:

Provides  100%  traction  on  demand  without  affecting  on-road  drivability  or  driveline  wear

Vastly  improved  traction  means  less  reliance  on  momentum,  thus  reducing  the  likelihood  of vehicle  damage  and  environmental  impact

Easy,  convenient  operation  allows  the  user  to  concentrate  on  the  terrain  without  leaving  the comfort  and  safety  of  the  driver’s  seat

Ultra  durable  and  extremely  strong  –  only  the  highest  quality  materials  used  in  construction

Incredibly  simple  yet  effective  design  that  employs  minimal  moving  parts,  thereby  ensuring maximum  reliability

Thoroughly  tested  and  proven  design  –  trusted  and  used  in  over  100  countries  around  the  world

Easy  installation  and  maintenance  –  no  special  tools,  skills  or  additives  required

Patented  ‘timed’  locking  mechanism  offers  high  strength  and  ultra  fast  un-locking

Comprehensive  photo  illustrated  installation  and  service  guides

Steel  reinforced,  elastomer  bonded  annular  seal  designed  to  handle  the  most  extreme  climatic temperatures  on  Earth

Patented  two  -piece  design  that  offers  a  range  of  interchangeable  side  gears  (sold  separately)  to integrate  with  non-standard  axle  shaft  splines

Technical  Specifications:

RD244  -  Rear  Axle

29  spline  axle

31.5  mm  [1.24”]  axle  shaft  diameter  (outside  of  splines)

10  bolts  on  145.5mm  [5.72”]

121.3mm  [5.28”]  dia.  ring  gear  ID

200mm  [7.87”]  dia.  ring  gear  OD



ARB Air Locker’s patented design has proven to be an ultra-dependable product, even under the most arduous conditions. It’s strength lies within the simplicity of the design, the minimal the moving parts ensures maximum reliability. All structural components are manufactured from aerospace grades of high alloy steel, and where possible, they have increased the number of differential pinion gears to distribute torque loads evenly. Many recent Air Locker designs also utilize timed gear sets to further improve strength, a design feature that has led to a second US patent on the product.

The ARB air locker differential is made from aerospace-grade high alloy steel for the ultimate in strength and durability. It is designed with simplicity in mind and features few moving parts for added reliability. This air locker differential provides excellent traction control both on the street and on the trail, so your Jeep can power through harsh road or weather conditions.

Please Note: This is not a direct fit to any OE applications. Must use 35 spline axle shafts.

The ARB Air Locker is a pneumatic air-locking differential that employs a 12 volt ARB Air Compressor designed to operate a solid and durable locking mechanism inside the differential.

This design can instantly lock differentials, and allow you to handle the most challenging terrains. The kit comes complete with an air locker kit, replacement differential, activation switch, solenoid valve, and airline, with bulkhead fittings.

In order to run this part on your vehicle, these additional parts are required:
•    CKSA 12 air compressor (extremely compact). Operates up to 2 air lockers. Not intended for oversized tire inflation.
•    CKMTA12 air compressor (Still compact, operates up to 2 air lockers when paired with 171503, and will inflate tires and run air tools when paired with a 171302, and will run even faster when paired with 171501 air tank.

ARB Air Locker offers a compete air line and air locker kit with bulkhead fittings, activation switch, a solenoid valve, and replacement differential. The smooth, patented design provides durability even in the toughest road and off road conditions. With easy moving parts, it offers the securest ride and reliability. Manufactured from high alloy steel and differential pinion gears you'll experience the smoothest torque loads ever. It features 35 Spline for gear ratios 3.73 and down. Designed for Jeep Wranglers from 1987-2016, it will require an on board air compressor.

NOTE: FITS RUBICON

The patented ARB Dana 30 Air Locker 27 Spline 3.73 and Up is built to withstand the worst of conditions. Constructed from aerospace-grade high-alloy steel, the materials in the piece are good enough for spaceships -- and they'll work for your vehicle. The overall design enhances long-term durability by reducing the number of moving parts while still evenly distributing torque loads. A number of designs also have patented timed gear sets that improve total strength.

**CANNOT BE DROP SHIPPED** D44 33 SPLINE 3.92+ ARB AIR LOCKER & ACCESSORIES

ARB Air Locker's patented design has proved ultra dependable, even in the most arduous conditions. It's strength lies in its simplicity and minimal moving parts ensures maximum reliability. All structural components are manufactured from aerospace grades of high alloy steel, and where possible, we increase the number of differential pinion gears to distribute torque loads evenly. Many recent Air Locker designs also utilise timed gear sets to further improve strength, a design feature that has led to a second US patent on the product.

¦Dana 30 30 Spline 3.73 & Up

The ARB Air Locker's patented design has proved to be ultra dependable, even in the most strenuous conditions when off-roading on extreme terrains. Its strength lies in its simplicity and minimal moving parts that ensure maximum reliability. All structural components of the snatch block are manufactured from aerospace grades of high alloy steel, and where possible, the number of differential pinion gears is increased to distribute torque loads evenly.

Many recent Air Locker designs also utilize timed gear sets to further improve strength, a design feature that has led to a second US patent on the product.

This air-locker differential makes it easier to take on the toughest trails. With the best traction aid available, it will keep the vehicle moving no matter what the conditions. Included are a replacement differential, a solenoid valve, the handy activation switch, the bulkhead fittings and an air line.

ARB Air Locker's patented design has proved ultra dependable, even in the most arduous conditions. It's strength lies in its simplicity and minimal moving parts ensures maximum reliability. All structural components are manufactured from aerospace grades of high alloy steel, and where possible, we increase the number of differential pinion gears to distribute torque loads evenly. Many recent Air Locker designs also utilise timed gear sets to further improve strength, a design feature that has led to a second US patent on the product.

¦Dana 35 30 Spline 3.54 & Up

**CANNOT BE DROP SHIPPED** D35 27 SPLINE 3.54 UP ARB AIR LOCKER & ACCESSORIES

ARB Air Locker's patented design has proved ultra dependable, even in the most arduous conditions. It's strength lies in its simplicity and minimal moving parts ensures maximum reliability. All structural components are manufactured from aerospace grades of high alloy steel, and where possible, we increase the number of differential pinion gears to distribute torque loads evenly. Many recent Air Locker designs also utilise timed gear sets to further improve strength, a design feature that has led to a second US patent on the product.

¦Dana 30 27 Spline 3.54 & Down

A relentless commitment to research and design, the use of quality materials, and an uncompromising approach to manufacturing have all contributed to the Air Locker’s® success in over 100 countries worldwide. Designed and manufactured in Australia, ARB Air Lockers® will enhance the traction of your 4×4 in just about any terrain, whether it’s rock, clay, gravel, sand, snow or mud. Now with a state-of-the-art two-piece design available right across the range, forged gears for the ultimate in strength and durability, and an industry-leading five-year warranty, ARB Air Lockers® are better built and better backed than ever before.



Features

100% traction on demand

Does not affect drivability or driveline wear

Ultra-durable, high-quality construction

Features aluminum clamshell design

Minimal moving parts

Easy installation & maintenance

5-Year Limited Warranty



Specifications

Differential: Clamshell

Gear Ratio: all ratios

Axle Splines: 29

Ring Gear Bolts: 10 (not included)



Notes:

This fits the front IFS clamshell axle in Bronco models without a locker.

Non-OEM locker applications have the ring gear welded to the factory differential. You must also replace the ring and pinion to install this locker.

Air locker locking differentials allow you to tackle the toughest terrain. The world's premier traction aid, ARB air lockers keep you moving in all conditions.
A complete air locker kit: replacement differential, activation switch, solenoid valve, air line and bulkhead fittings.

The ARB Air Locker is a pneumatic air-locking differential that employs a 12 volt ARB Air Compressor designed to operate a solid and durable locking mechanism inside the differential. This design can instantly lock differentials, and allow you to handle the most challenging terrains. The kit comes complete with an air locker kit, replacement differential, activation switch, solenoid valve, and airline, with bulkhead fittings. In order to run this part on your vehicle, these additional parts are required: • CKSA 12 air compressor (extremely compact). Operates up to 2 air lockers. Not intended for oversized tire inflation. • CKMTA12 air compressor (Still compact, operates up to 2 air lockers when paired with 171503, and will inflate tires and run air tools when paired with a 171302, and will run even faster when paired with 171501 air tank.
