Motobilt Universal Notched Coil Over Shock Towers - Pair
Motobilt Universal Notched Coil Over Shock Towers - Pair

Motobilt Universal Notched Coil Over Shock Towers - Pair

Motobilt Universal Notched Coil Over Shock Towers - Pair
Motobilt Universal Notched Coil Over Shock Towers - Pair Motobilt Universal Notched Coil Over Shock Towers - Pair
Write a Review | Q&A
Part # MB1516-NWe price match! Call 866-601-5340!
We Price Match
$159.00

Ships from Mfg. Available to ship: 12-15 business days
Qualifies for
free shipping!
Universal part
You will earn Reward Points with this Purchase.
ANY QUESTIONS?
MotobiltAuthorized
Dealer

Product Resources

Features & Product Details

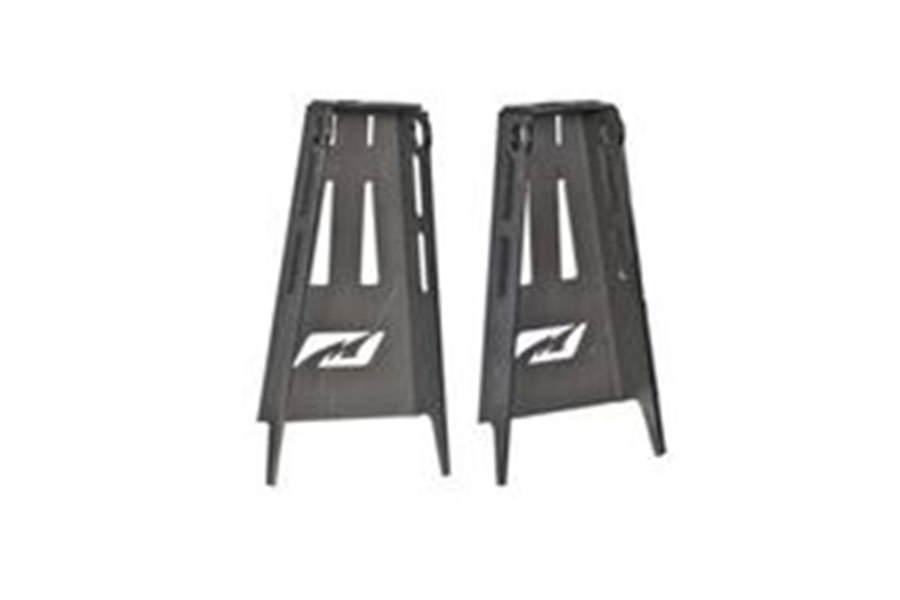

The Motobilt shock towers are made out of thick 1/4 inch steel plate that is CNC cut and bent. These towers have a notch cut into them so that you can sit them on top of your frame rail and weld them in place. They lean out 15 degrees and measure 12 1/4 inches from the top of the frame to the center of the bolt hole.

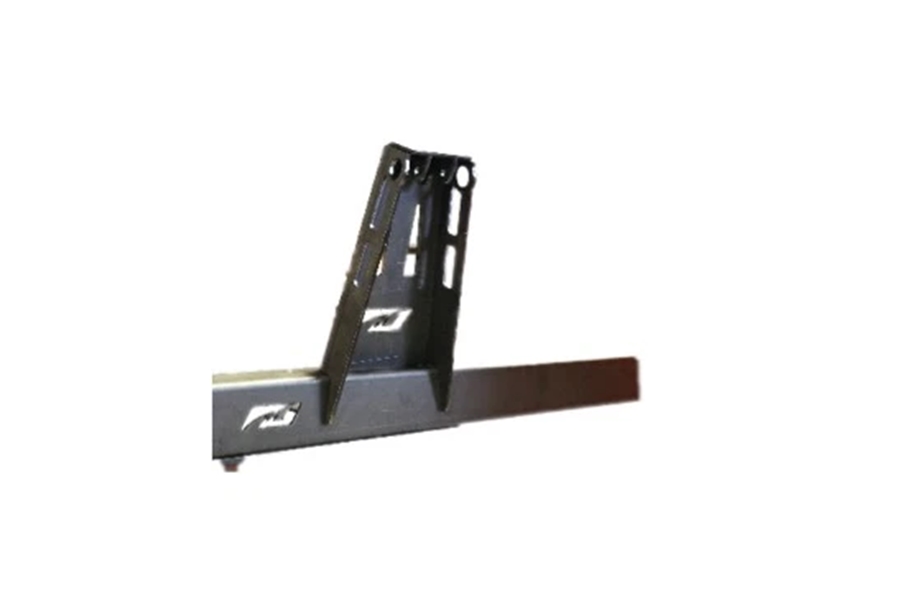

This kit is designed to be used with coil over shocks in the 2.0 size. The mounting hole is 1/2 inch and the mounting width is 1 1/2 inches. The notched design means you can mount them with out having to cut or channel your frame. These can be used front or rear. The towers will require professional installation and welding. Comes with 2 shock towers and 4 tabs that are designed with key ways to ensure an exact fit once fully welded. Note: The lower frame rail shown is NOT included.

Specifications

  • Fits 2.0 coil over shocks with a 1 1/2 inch mounting width
  • Notched design
  • 15 degree outward lean
  • 12 1/4 inches from the top of the frame to the center of shock mounting hole.
  • 1/4 inch laser cut steel construction
  • Sold as a pair
  • Weight: 27lbs (approx.)

    •

    Benefits

  • Pre-notched to mount on top of your frame
  • 15 degree slope allows clearance between the coil over and your frame.
  • 12 1/4 inch height allows use of a 12 to 16 inch travel coil over in most cases.
  • 1/4 inch steel construction allows mounts to be installed with out a cross over brace between the towers

    •

    Notes:

  • Ships bare metal and requires welding.
  • Does not include lower coil over mounts for axle

    • Specifications

    Brand: Motobilt
    Color: Raw Steel
    Install Method: Weld On
    Location: Front Or Rear
    Material: Steel
    Qty: 2
    Thickness: 1/4in
    Mfgr. Warranty: No Warranty
    Condition: New Product
    Return Policy:
    Standard

    PEOPLE WHO VIEWED THIS ITEM ALSO VIEWED

    REVIEWS & CUSTOMER MEDIA

    Be the first to write a review

    QUESTIONS & ANSWERS

    No questions have been asked about this product.

    This Part Fits

    Universal Product
    This item is non application specific.
    Please verify compatibility before purchase. May require some modification for proper installation.
